Summary of Contents for Lincat Opus 800 OG8115/OP

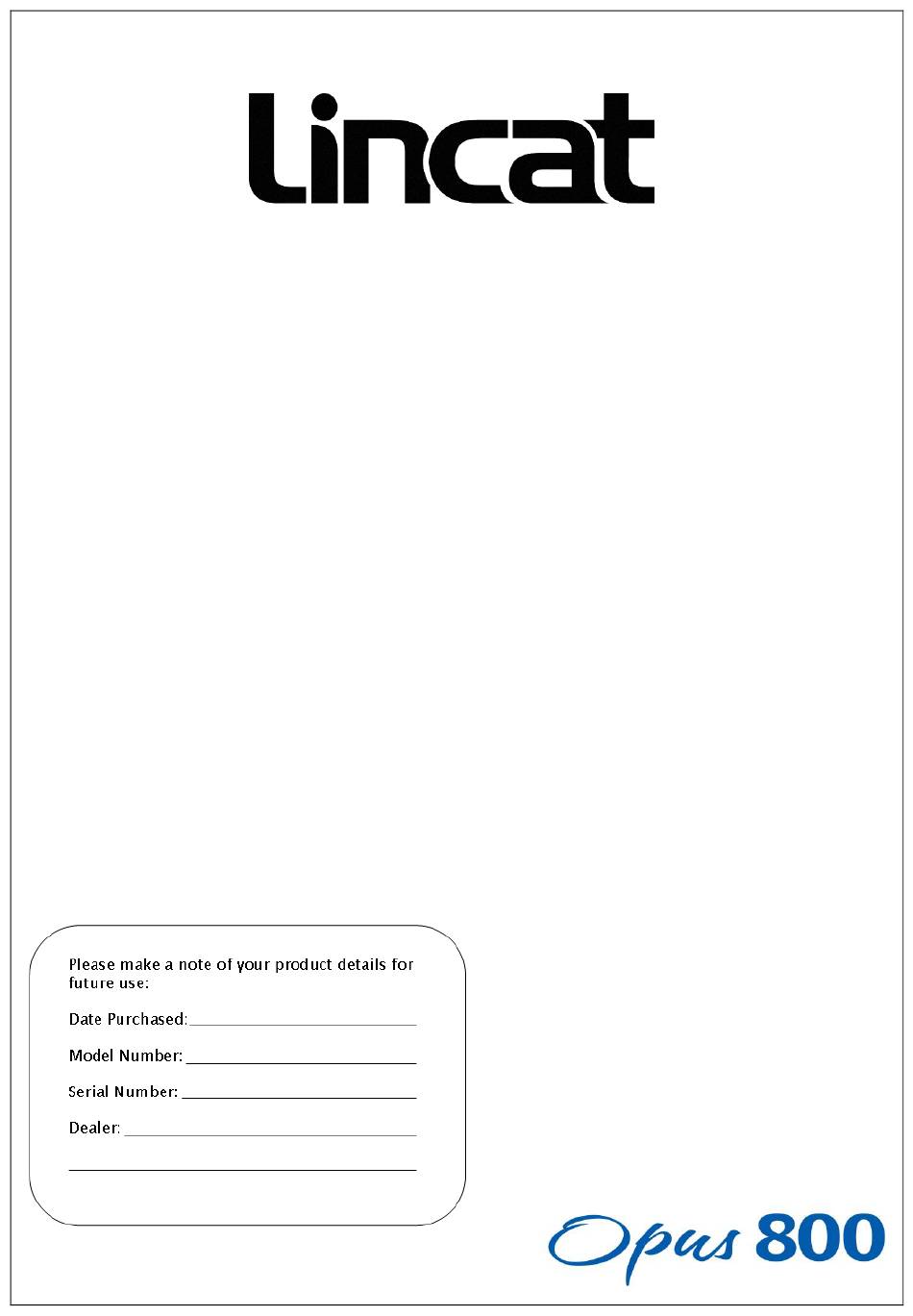

- Page 1 User, Installation and Servicing Instructions Opus 800 Vortech Gas Fryer OG8115/OP IS 681 ECN 4301 Page 1 of 20...
-
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned, serviced and converted by a qualified person in accordance with national and local regulations in force in the country of installation. Only qualified or trained personnel should use this appliance. Parts protected by the manufacturer shall not be adjusted by the user. Strip plastic coating and clean the appliance before use. -
Page 4: Technical Data
TECHNICAL DATA Description Single Tank Gas Fryer Model number OG8115/OP Overall height (mm) 1070 Width (mm) Depth excluding handles (mm) Weight (Kg) Oil capacity (Litres) Maximum frying weight 3.0 kg ½” Rp Gas inlet connection Gas pressure – Natural (G20) 20 mBar Gas pressure –... -
Page 5: Component Identification
Knurled fastener Power On Burner On Thermostat knob Operating mode Burner reset Limit thermostat reset Oil pump connection Oil bucket Drain valve handle Drain valve lock Coupling Oil return lance IS 681 ECN 4301 Page 5 of 20... -
Page 6: Installation
ELECTRICAL SUPPLY AND CONNECTION If the supply cable is damaged it should be replaced by Lincat Ltd or other suitably qualified persons, in order to avoid a hazard. For safety regulations the plug or means of disconnection must always be accessible. -
Page 7: Commissioning
COMMISSIONING Never operate the unit without oil in the tank OPERATIONAL CHECK Although all Lincat fryers are functionally checked during manufacture, commissioning must include a functional check of all controls. PREPARATION Having sited the unit, with particular attention paid to ventilation and proximity to combustible materials as detailed previously, the unit is ready for commissioning. - Page 8 – 9.5%±0.1 CO ˂20 PPM Natural gas CO – 10.5%±0.1 CO ˂20 PPM Propane gas CO – 11.0%±0.1 CO ˂20 PPM Butane gas If required, adjustment is made via the venturi throttle screw after removing the access panel. Anticlockwise increases the gas making the mixture richer...
-
Page 9: Servicing
SERVICING All servicing, maintenance and component replacement on this appliance should be carried out by one of our recommended service engineers. Routine Service Check the installation, specifically the hose type and condition, the installation of a safety chain and the installation of a separate isolation valve. Check that the unit has been installed with a suitable electrical isolation switch. -
Page 10: Component Replacement
COMPONENT REPLACEMENT Disconnect from both the gas and electrical supply before proceeding with any of the following instructions. Use only genuine Lincat spares. TEMPERATURE CONTROL Remove the control knob. Undo the control panel retaining screws. Remove the screws that retain the temperature control/switch assembly to the control panel. - Page 11 DRAIN VALVE Remove the drain valve handle Undo the four screws holding the switch panel and support under the drain valve. Remove the drain valve extension assembly. Unscrew the drain valve from the unit. Remove the outlet stub pipe from the drain valve. ...
- Page 12 BURNER ASSEMBLY Undo the two fasteners holding the door bracket. Remove the door. Remove the left hand side panel. Follow the instructions above for the removal of the fan/valve assembly. Undo and remove 14 of the M8 nuts from the underside of the burner leaving 11 and 12 still attached.
-
Page 13: Spare Parts List
SPARE PARTS LIST The following components are listed with the Lincat reference number followed by a brief description. IG46 Flame detection electrode PART NUMBER DESCRIPTION FZ401101 Drain valve BA159 Half basket LE37 Adjustable leg BS27 Basket support FZ214160 Oil return hose... - Page 14 Filtration pump will not work Note: Firstly ensure that the control knob is in the ‘Off’ position. Switch the unit Is the unit in fryer mode into filter mode. (green neon on)? Remove and clear Is the oil suction pipe and the obstruction, refit the return lance clear of any and retry.
-
Page 15: User Instructions
USER INSTRUCTION Model No. Capacity Max. load OG8115/OP 16 litres 3.0 kg This appliance is for professional use and must be operated by qualified or trained personnel only. This unit is intended to be used to produce deep fried products only. When filtering oil during normal service, set the control knob to the ‘off’... - Page 16 BASKET LOADS Overloading the basket reduces the fryer output of cooked product and will result in uneven cooking. It also increases the possibility of surge boiling (the oil may suddenly boil over when the basket is placed into the tank). Food that is over-wet increases the possibility of surge boiling.
- Page 17 Isolate from the gas supply. Connect the oil return pipe M into position L Set the thermostat to the “Off” position with the orange dot at the top of the control dial. Ensure that the drain bucket is firmly positioned within the fryer. ...
-
Page 18: Service Information
Gas Appliance Regulations 2016/426. GUARANTEE This unit carries a comprehensive UK mainland warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. Contact Lincat for terms and conditions The guarantee does not cover: Accidental damage, misuse or use not in accordance with the manufacturer’s instructions ... -
Page 19: Notes
Notes IS 681 ECN 4301 Page 19 of 20... - Page 20 Notes IS 681 ECN 4301 Page 20 of 20...
