Service guide | Disassembling and assembling iSave 21 vane pump with upgrade kit 180F4161
4. Assembling the
iSave

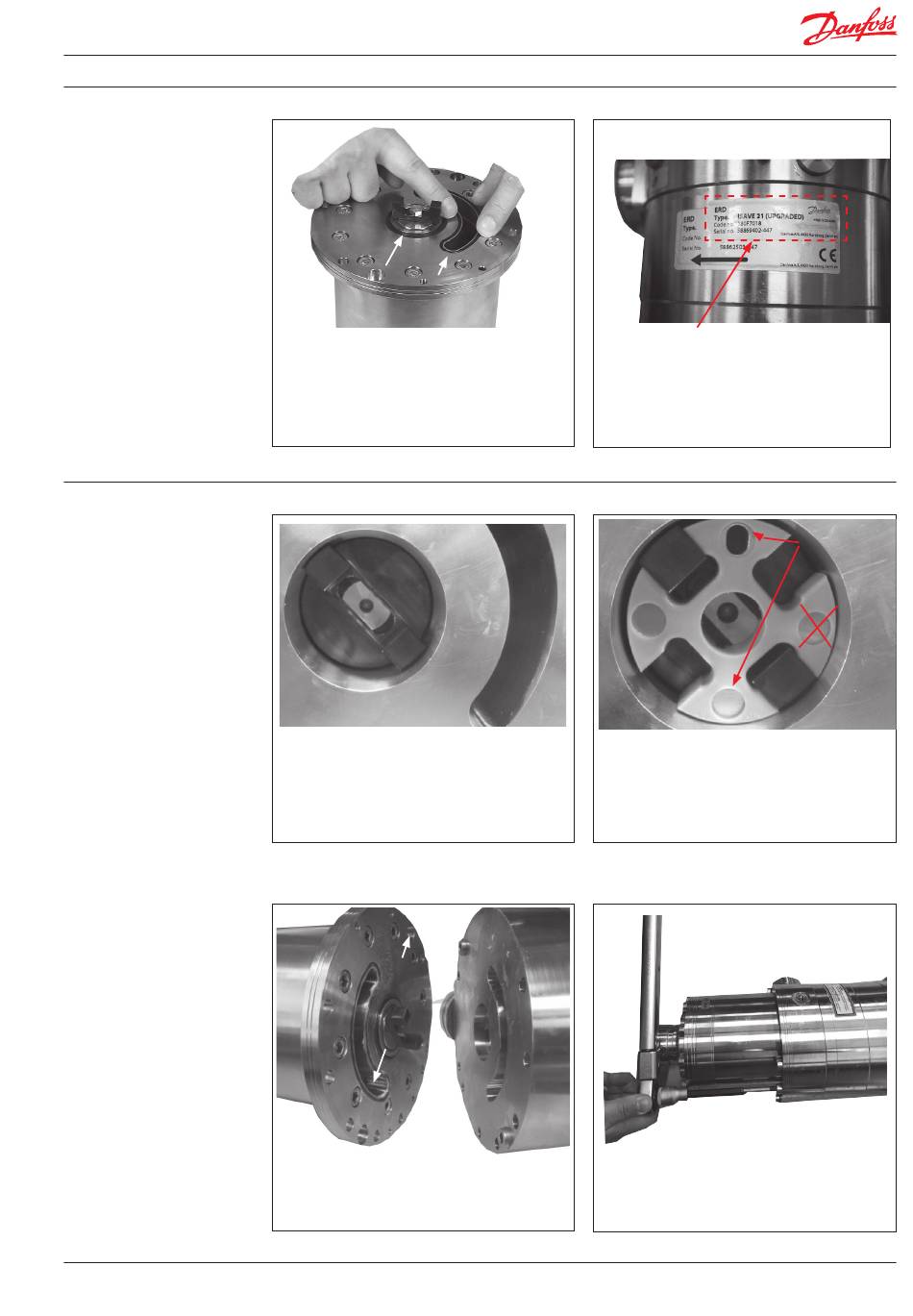

19. Change the two new O-rings in the
flange.
1. Fit the steel coupling onto the shaft of the
pressure exchanger.
3. Orient both the steel coupling and the
2 guide holes on the vane pump to fit into
the pressure exchanger.
180R9402 | 521B1455 | DKCFN.PI.003.T1.02 | 10.2017
20. Install the 2 new labels on top of each
product label to cover the old code no. as
illustrated above.
Spare parts must be ordered according to
the new code no. 180F7018
2. Fit the polymer coupling insert on the
steel coupling. Note correct position of
the hole in the insert.
4. Mount the bolts into the flange and tighten
them a torque according to exploded
view,
Correct
positions
9
