Service guide | Disassembling and assembling iSave 21 vane pump with upgrade kit 180F4161

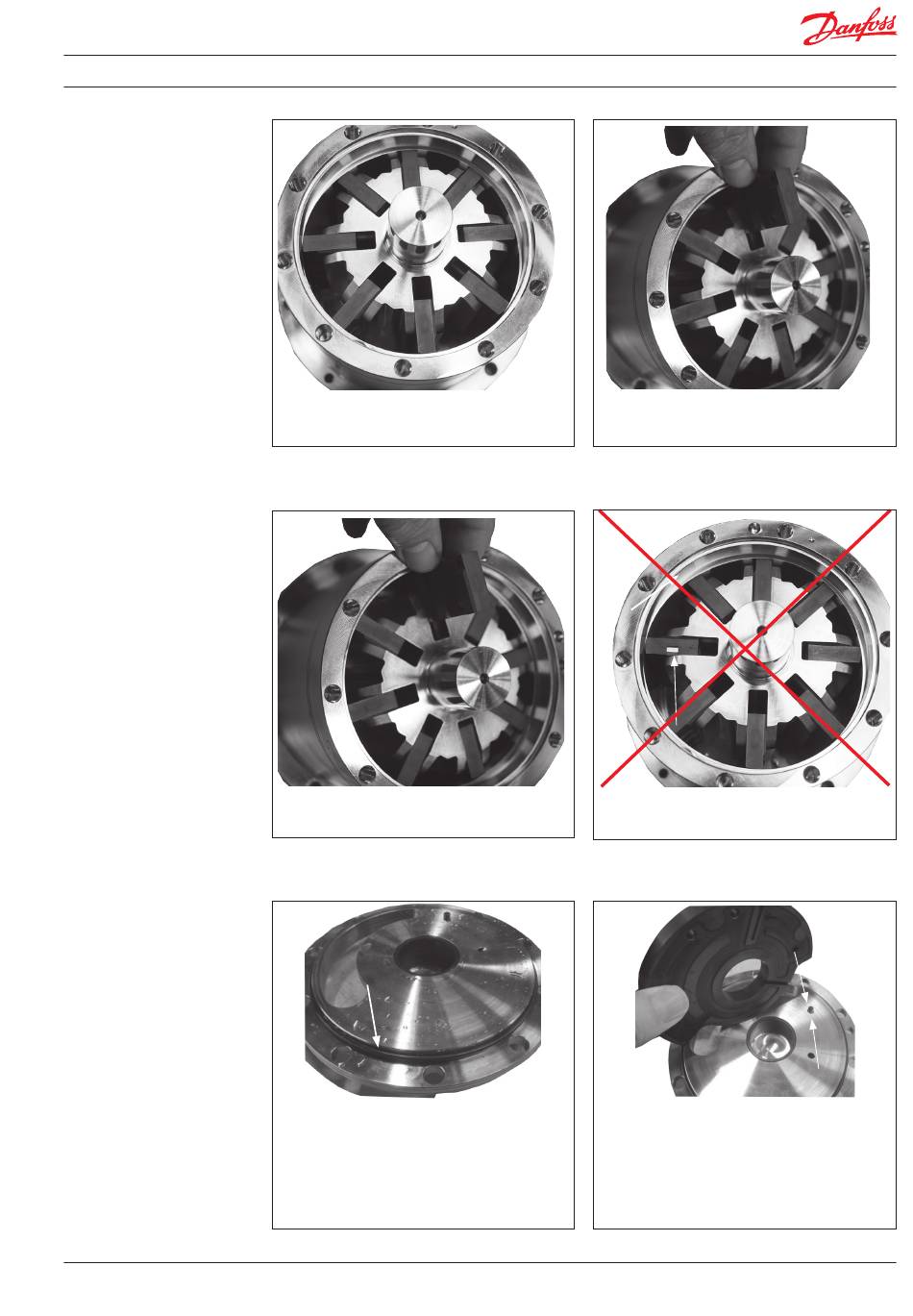

7.
Gently place the rotor in the bearing.
9.
Check that all vanes are positioned
correctly.
11.
Replace the new O-ring on the flange and
wet the flange properly with clean filtered
water.
180R9402 | 521B1455 | DKCFN.PI.003.T1.02 | 10.2017
8.
Position the 8 new vanes in the rotor.
The pins may be moved by using a
screwdriver.
10.
One vane is NOT positioned correctly.
12.
Position the new side plate over the guide
pin.
7
