Asymmetrical Horn TP
Pre - Installation
Assembly shown here is for the installation on the left side of the pole.
If you need to swap to use the right side of the pole, see step 10.
Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn
models. Antenna dimensions may differ.
www.rfelements.com

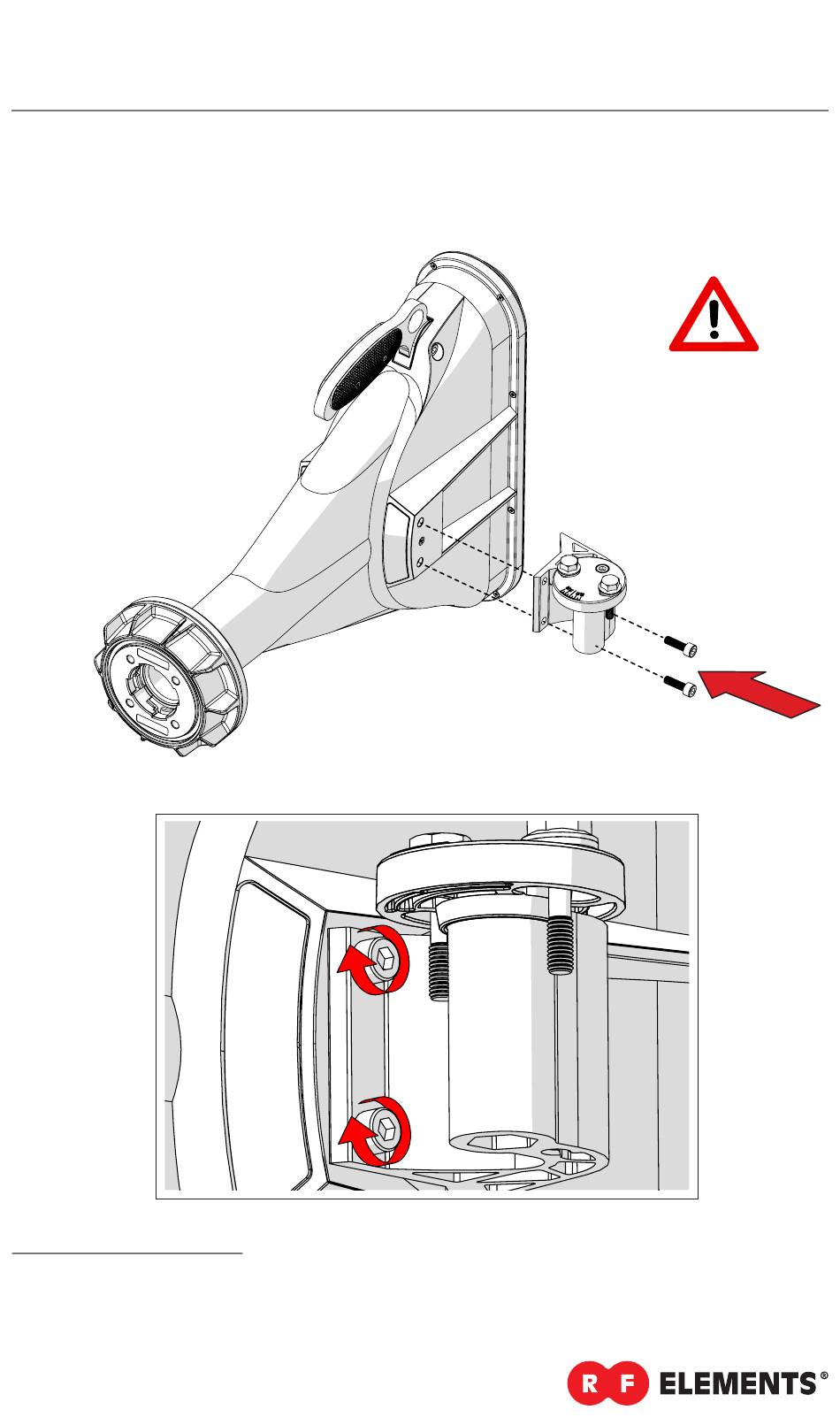

Step 1
USE ANTI-SEIZE
THREAD LUBRICANT
