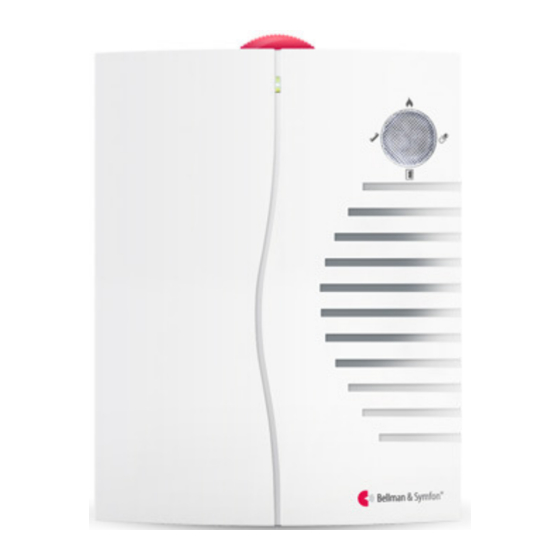

The Visit Portable Receiver
Art. no. BE1450

Introduction

The Visit system consists of a number of radio transmitters and receivers. The transmitters
detect different events in the surrounding area and transmit a radio signal to the receivers. The
receivers pick up this signal and provide indications using light, sound and/or vibration.
The transmitter determines what type of light, sound or vibration should be displayed so that the
reason for the indication is evident. Read through the entire user manual first and then start to
install the system.
Getting started
Unpacking, installing and testing the unit
1. Open the battery cover (10). Fit four LR14 alkaline type batteries and close the battery
cover. Press the Test Button (12). The Visit Portable Receiver will then emit sound and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1450 and is the answer not in the manual?

Questions and answers

Related Manuals for Bellman & Symfon BE1450

Summary of Contents for Bellman & Symfon BE1450

  • Page 1 The Visit Portable Receiver Art. no. BE1450 Introduction The Visit system consists of a number of radio transmitters and receivers. The transmitters detect different events in the surrounding area and transmit a radio signal to the receivers. The receivers pick up this signal and provide indications using light, sound and/or vibration.
  • Page 2 It is also easy to take the Portable Receiver with you wherever you go. Function General The BE1450 Visit Portable Receiver is a receiver within the Visit system for indoor use, which attracts the attention of the user using sound, light and also vibration if a BE1270 Bellman Bed- shaker (accessory) is connected.
  • Page 3 System indicators The LED (2) blinks once when the Portable Receiver is activated by a transmitter sending a radio signal to the Receiver. The LEDs (4 - 7) that indicate which transmitter has activated the Portable Receiver normally have the following meanings: Orange LED (4) indicates a baby cry transmitter.
  • Page 4 Troubleshooting in brief PROBLEM SOLUTION Change the batteries. Only use LR14 • alkaline type batteries. Nothing happens. Turn up the volume using the volume • The receiver is not emitting any sound control (1). signals. Check that on/off light signal switch (11) is •...
  • Page 5 Technical illustration 1. Volume control 2. LED reception, battery and power supply indicator 3. White LEDs 4. Orange LED 5. Green LED 6. Yellow LED 7. Red LED 8. Vibrator output 9. Connection for power supply unit 10. Battery cover 11.
