Bellman & Symfon Visit User Manual

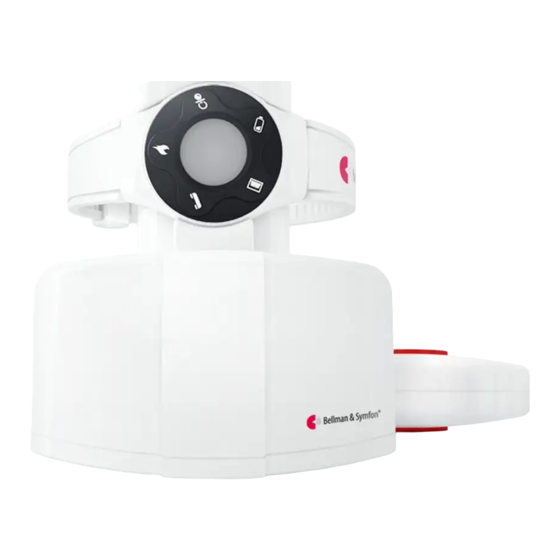

Visit wrist receiver

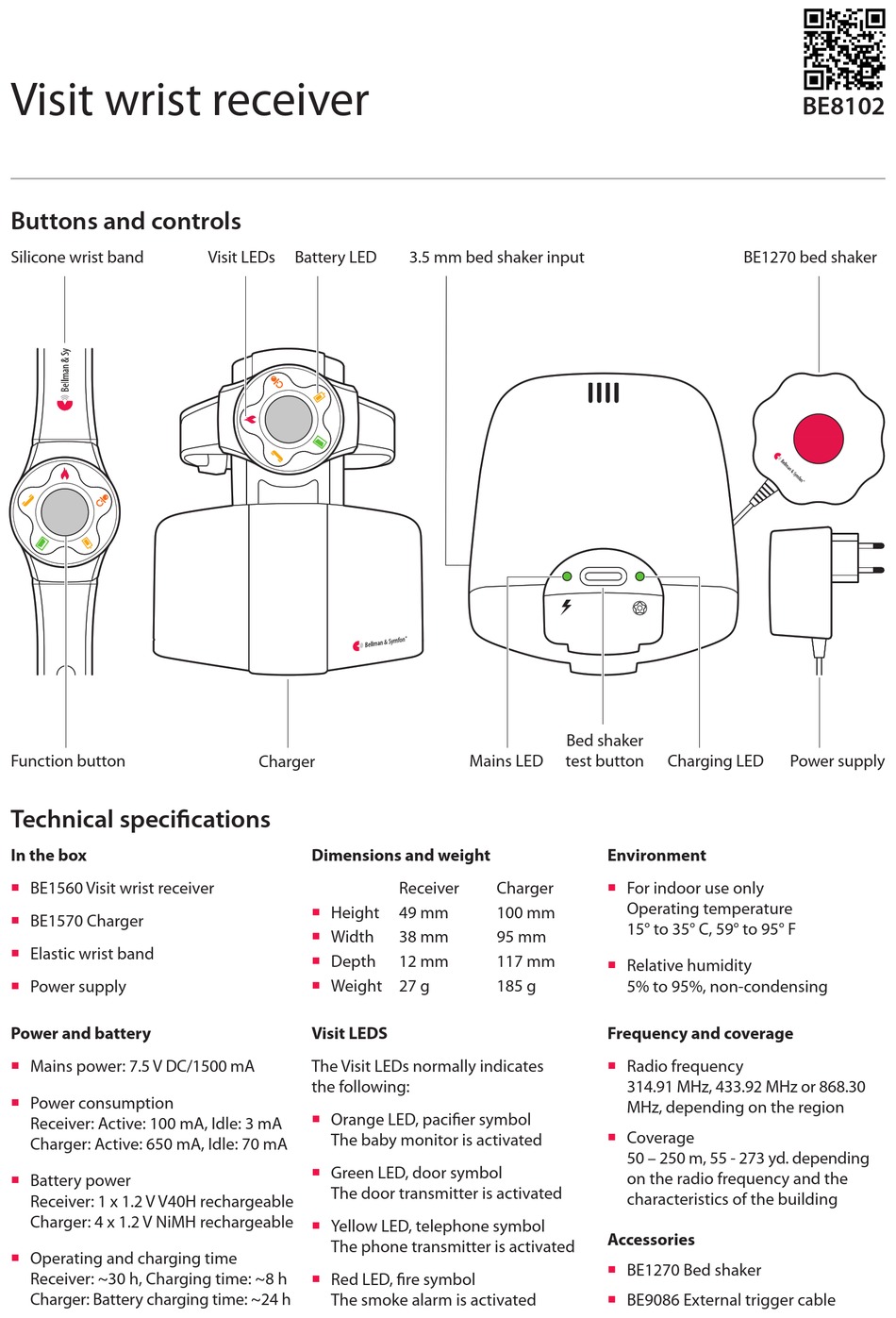

Buttons and controls

Silicone wrist band
Function button

Technical specifications

In the box
BE1560 Visit wrist receiver

BE1570 Charger

Elastic wrist band

Power supply

Power and battery
Mains power: 7.5 V DC/1500 mA

Power consumption

Receiver: Active: 100 mA, Idle: 3 mA
Charger: Active: 650 mA, Idle: 70 mA
Battery power

Receiver: 1 x 1.2 V V40H rechargeable
Charger: 4 x 1.2 V NiMH rechargeable
Operating and charging time

Receiver: ~30 h, Charging time: ~8 h
Charger: Battery charging time: ~24 h
Visit LEDs Battery LED
Charger
Dimensions and weight
Height

Width

Depth

Weight 27 g

Visit LEDS
The Visit LEDs normally indicates
the following:
Orange LED, pacifier symbol

The baby monitor is activated
Green LED, door symbol

The door transmitter is activated
Yellow LED, telephone symbol

The phone transmitter is activated
Red LED, fire symbol

The smoke alarm is activated
3.5 mm bed shaker input
Bed shaker
Mains LED test button
Receiver Charger
49 mm 100 mm
38 mm 95 mm
12 mm 117 mm
185 g
BE1270 bed shaker
Charging LED
Environment
For indoor use only

Operating temperature
15° to 35° C, 59° to 95° F
Relative humidity

5% to 95%, non-condensing
Frequency and coverage
Radio frequency

314.91 MHz, 433.92 MHz or 868.30
MHz, depending on the region
Coverage

50 – 250 m, 55 - 273 yd. depending
on the radio frequency and the
characteristics of the building
Accessories
BE1270 Bed shaker

BE9086 External trigger cable

BE8102
Power supply
