Visit pager receiver
Buttons and controls
Visit LEDs
Front label
Function button
Battery LED
Technical specifications
In the box

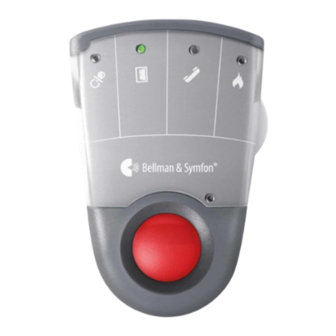

BE1230 Visit pager receiver
Safety cord with clip
Extra front label
Power and battery
Mains power
7.5 V DC 200 mA via the charger
Battery power
1.2 V AAA NiMH rechargeable battery
Operation time
NiMH battery: 96 hours
Power consumption
Active: ≤200 mA, Idle position: ≤1 mA
Belt clip
Battery cover
Optional safety cord with clip
Dimensions and weight
Height: 86 mm, 3.4"
Width: 57 mm, 2.2"
Depth: 29 mm, 1.1"
Weight: 70 g, 2.5 oz. incl. battery
Visit LEDs
The Visit LEDs normally indicates
the following:
Orange LED, pacifier symbol
The baby monitor is activated
Green LED, door symbol
The door transmitter is activated
Yellow LED, telephone symbol
The phone transmitter is activated
Red LED, fire symbol
The smoke alarm is activated
Battery eject
Battery compartment
Environment
Operating temperature 15°
to 35° C, 59° to 95° F
Relative humidity
5% to 95%
Frequency and coverage
Radio frequency
314.91 MHz, 433.92 MHz or 868.30
MHz, depending on the region
Coverage
50 – 250 m, 55 - 273 yd. depending
on the radio frequency and the
characteristics of the building
Accessories
BE1260 Pager charger
BE1270 Bed shaker
BE1230
Advertisement
Related Manuals for Bellman & Symfon BE1230
Summary of Contents for Bellman & Symfon BE1230
- Page 1 Technical specifications In the box Dimensions and weight Environment BE1230 Visit pager receiver Height: 86 mm, 3.4" Operating temperature 15° to 35° C, 59° to 95° F Safety cord with clip Width: 57 mm, 2.2"...
- Page 2 Visit pager receiver Getting started Open the battery cover, fit the battery and close the cover again. Attach the pager to your belt using the belt clip. For extra security, use the supplied safety cord. To test the radio link you need a Visit transmitter. Press the test button/s on the transmitter. The pager starts to vibrate and lights up a Visit LED.
- Page 3 Visit pager receiver Changing the radio key If your Visit system is activated for no reason, there is probably a nearby system that triggers yours. In order to avoid radio interference you need to change the radio key on all units. The radio key switches are located on the transmitters. Here is how you change the radio key: Open the transmitter cover and move any radio key switch to the up (on position) to change the radio key.
- Page 4 Visit pager receiver Troubleshooting Most problems with the pager can be solved quickly by following the advice below. Try this The pager seems to be turned off The battery is depleted. Replace it with a 1.5V AAA alkaline battery. Important! If you have a pager charger; only use a rechargeable 1.2 V AAA NiMh battery in the pager.
