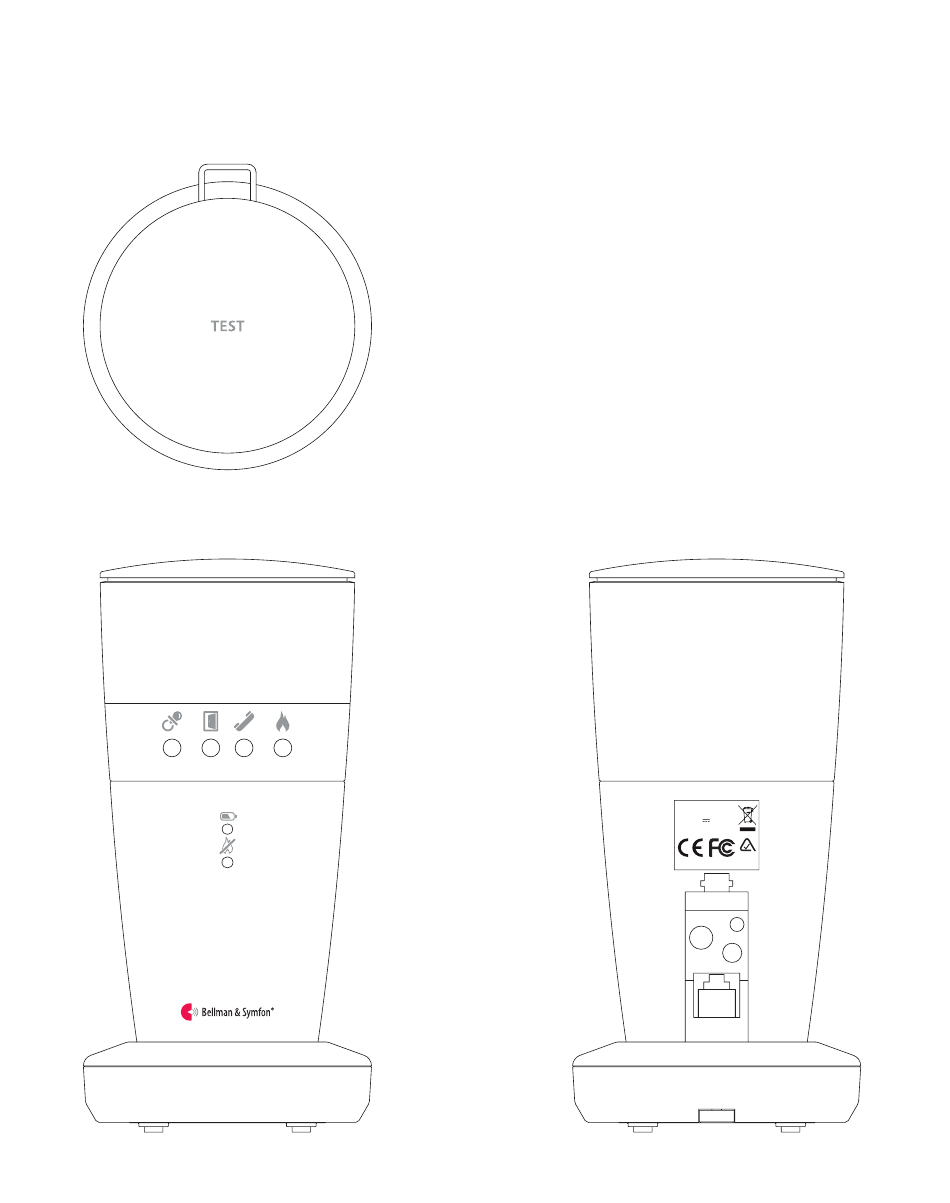

- Page 1 Flash Receiver BE1442/1443 Flash Receiver Model BE1442 input 7.5V 1500mA For indoor use only Made in the PRC N3583 US IPNMO01BERXT2 IC 66P3A-BERXT2...
- Page 2 Flash Receiver BE1441...
- Page 3 Appendix - Further information Settings No adjustments are required for normal use. The relevant descriptions are provided below, if you wish to change a setting for some reason. Radio key In order to use several Bellman Visit Systems close to one another without interference, different Radio Keys can be set on the different systems.
- Page 4 868/315MHz Europe, Asia Type LED pattern Sound Vibration Flash Green 1 Green is 1 x ding dong, low- Separate constantly lit frequency tone Green 2 Green blinks in 2 x ding dong, low- Separate sequences of two frequency tone Green 3 Green blinks in 1 x ding dong, Separate...
-
Page 5: Led Pattern
433MHz North America, Australia Type LED pattern Sound Vibration Flash Green 1 Green is 1 x Ding dong, Long constantly lit Bass tone Green 2 Green is 1 x Ring, Short constantly lit Treble tone Green 3 Green is 1 x Ding dong, Long constantly lit Bass tone... - Page 6 Battery backup BE1442 Battery backup BE1442 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Getting started Remove the battery slip on the bottom of the unit before use.
-
Page 7: Erste Schritte
Bellman Visit Blitzempfänger BE1441/1442/1443 Vielen Dank, dass Sie sich für Produkte von Bellman & Symfon entschieden haben. Das Bellman Visit-System besteht aus verschiedenen Funksendern und Funkempfängern. Die Sender erkennen verschiedene Geräusche aus der Umgebung und senden ein Funk- signal an die Empfänger. Die Empfänger empfangen dieses Signal und reagieren durch eine Leuchtanzeige, einen Ton und/oder Vibration. -
Page 8: Anzeigen Und Signale
Funktion Allgemeines Der Bellman Visit Blitzempfänger, BE1441/1442/1443, ist ein Empfänger im Bellman Visit- System für die Innenanwendung, der die Aufmerksamkeit auf sich zieht, indem Blitzlichter und LEDAnzeigen, und sofern ein Bellman Vibrationskissen, BE1270 (Zubehör), angeschlos- sen ist, auch Vibrationssignale ausgegeben werden. Die Aktivierung erfolgt über Funksignale von einem der Sender des Bellman Visit Systems oder über eine Direktverbindung mit einem analogen Telefonanschluss. - Page 9 Systemanzeigen Die LEDs , die angeben, von welchem Sender der Bellman Visit Blitzempfänger aktiviert wurde, haben in der Regel folgende Bedeutung: Die orange LED bedeutet Babyüberwachung. Die grüne LED bedeutet Türsender. Die gelbe LED bedeutet Telefonsender. Die rote LED bedeutet Feueralarm.
- Page 10 Nur mit trockenen/ leicht feuchtem Tuch abwischen Wartungshinweis: Wartungsfrei (bei BE1442 können die Batterien ausgetauscht werden) Technische Daten: 4 x AAA NiMH 600mAh Batterie (nur bei BE1442) Hinweis zum Wiedereinsatz: Das Produkt ist nicht für den Wiedereinsatz für einen andere Person vorgesehen...
-
Page 11: Advanced Programming
Advanced programming Advanced programming provides additional options for those who wish to make special modifications to the Bellman Visit Flash Receiver. The idea is that it should be possible to select a completely unique signal pattern which is linked to activation from a specific input on a special Bellman Visit transmitter. The function works regardless of the radio key settings on the units that are programmed. -
Page 12: How To Test
1 Hold down the Test Button (9) on the Bellman Visit Flash Receiver until the green yellow LEDs blink alternately. The Bellman Visit Flash Receiver will now be in program- ming mode for about 30 seconds. 2 Press the Test Button (9) three times in quick succession. 3 All LEDs remain constantly on for a few seconds. -
Page 13: Troubleshooting
Something High Electric P12-075150US Australia/NZ: Something High Electric P12-075150AS Battery back-up for BE1441: not applicable for BE1442: 4x1.2V Lexel 600/900mAh for BE1443: 4x1.2V Lexel 900mAh Please dispose used batteries at municipal collecting points or dispense them to local stores ... -
Page 14: Additional Information
Bellman Visit system Via analogue telephone network: 26 - 120 V RMS, 15 - 100 Hz. BE1441/BE1442: Via mobile phone detector : see accessories ( Output: 3.3V/max 150mA) WARNING: The telephone port of the Flasher Receiver must be connected using 26 AWG or greater telecommunications wire. - Page 15 Optional accessories (sold seperately) Wall Mount Bracket BE9075 Bellman Bed-shaker BE1270 Telephone Flex BE9105 Mobile Detector BE9250 Adapter plug for the appropriate country...
- Page 16 Hereby, Bellman & Symfon, For use in all EU countries Contact us Activation declares that this wrist For a complete Declaration of Conformity Correct use and disposal of batteries. Replace only receiver and charger is please contact info@bellman.com or call +46 with the same or equivalent type recommended Radio: in compliance with the...
