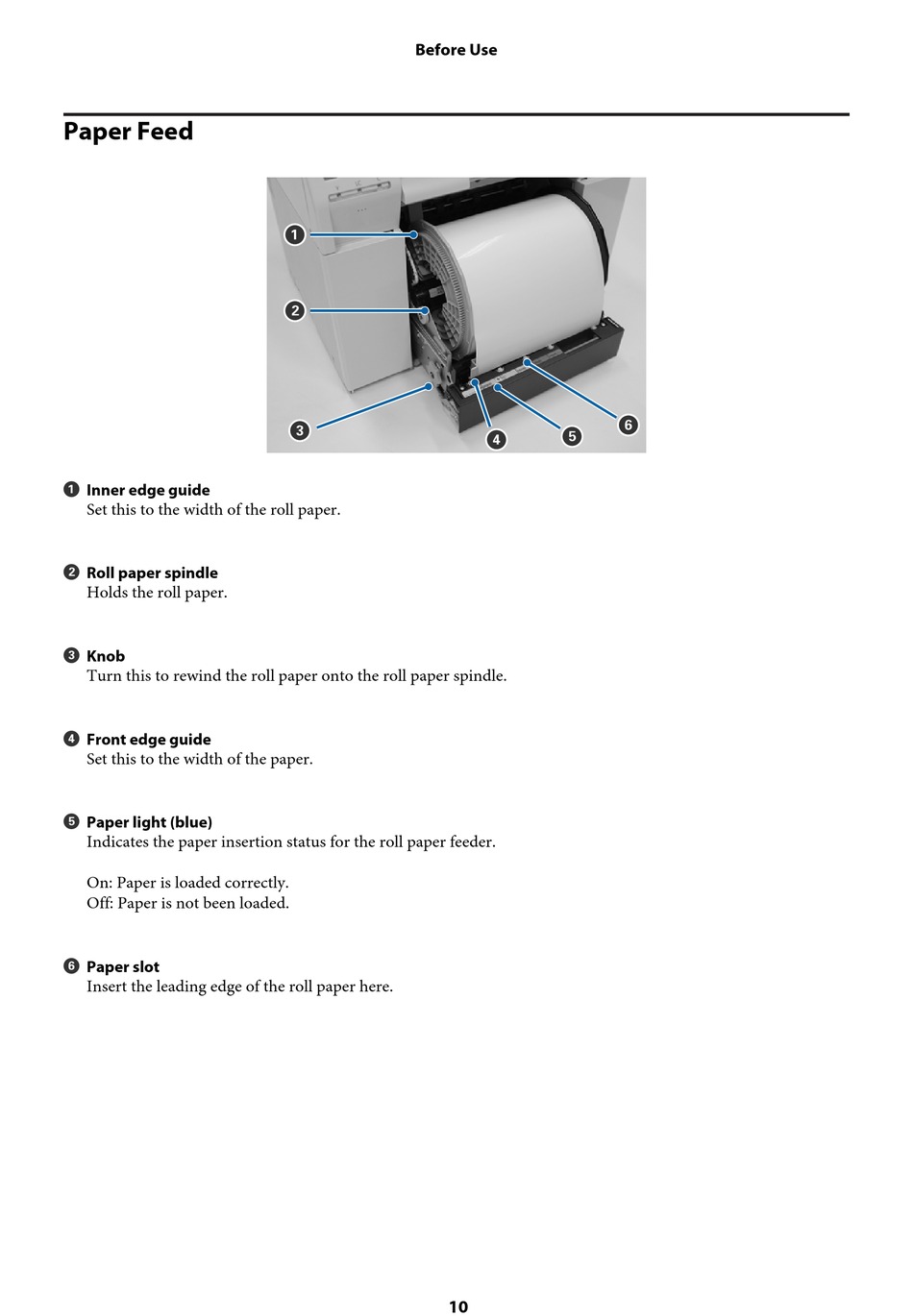

Paper Feed

A
Inner edge guide
Set this to the width of the roll paper.
Roll paper spindle
B
Holds the roll paper.
Knob
C
Turn this to rewind the roll paper onto the roll paper spindle.
D
Front edge guide
Set this to the width of the paper.
E
Paper light (blue)
Indicates the paper insertion status for the roll paper feeder.
On: Paper is loaded correctly.
Off: Paper is not been loaded.
F
Paper slot
Insert the leading edge of the roll paper here.
