Instruction Sheet
IS-539-11
revised 2019
15-533-1011 Panel Mount 4000 (3.5 A Controller)
15-351-1011 Standard Enclosure 4000 (3.5 A Controller)
15-539-0011 Panel Mount 4050 (8 A Controller)
15-553-0011 Standard Enclosure 4050 (8 A Controller)
Model 4000 and 4050 with Auto Manual Low Signal Follower

Introduction

These instructions relate specifically to the
model 4000 and 4050 controllers assembled for
Speed Control with Auto/Manual Low Signal
Follower (Ext Ratio) modification. Connection
diagram,
schematic
programming,
plug
adjustment procedure and recommended spare
parts list for these specific assemblies are
contained in this Instruction Sheet. Any
differences between these two controllers are
clearly noted. Use Instruction Manual IM-
130006-83XX with this Instruction Sheet for
complete
installation,
maintenance instructions.
Caution: Above ground electrical potentials can
be hazardous. Always disconnect electrical
power before working on the controller.
*Heat sink assembly, HS1, and its wiring only
apply to the Model 4050 controller. These parts
are not supplied on Model 4000 controllers. The
parts are mounted on the 15-530-5 main 4000
boards.

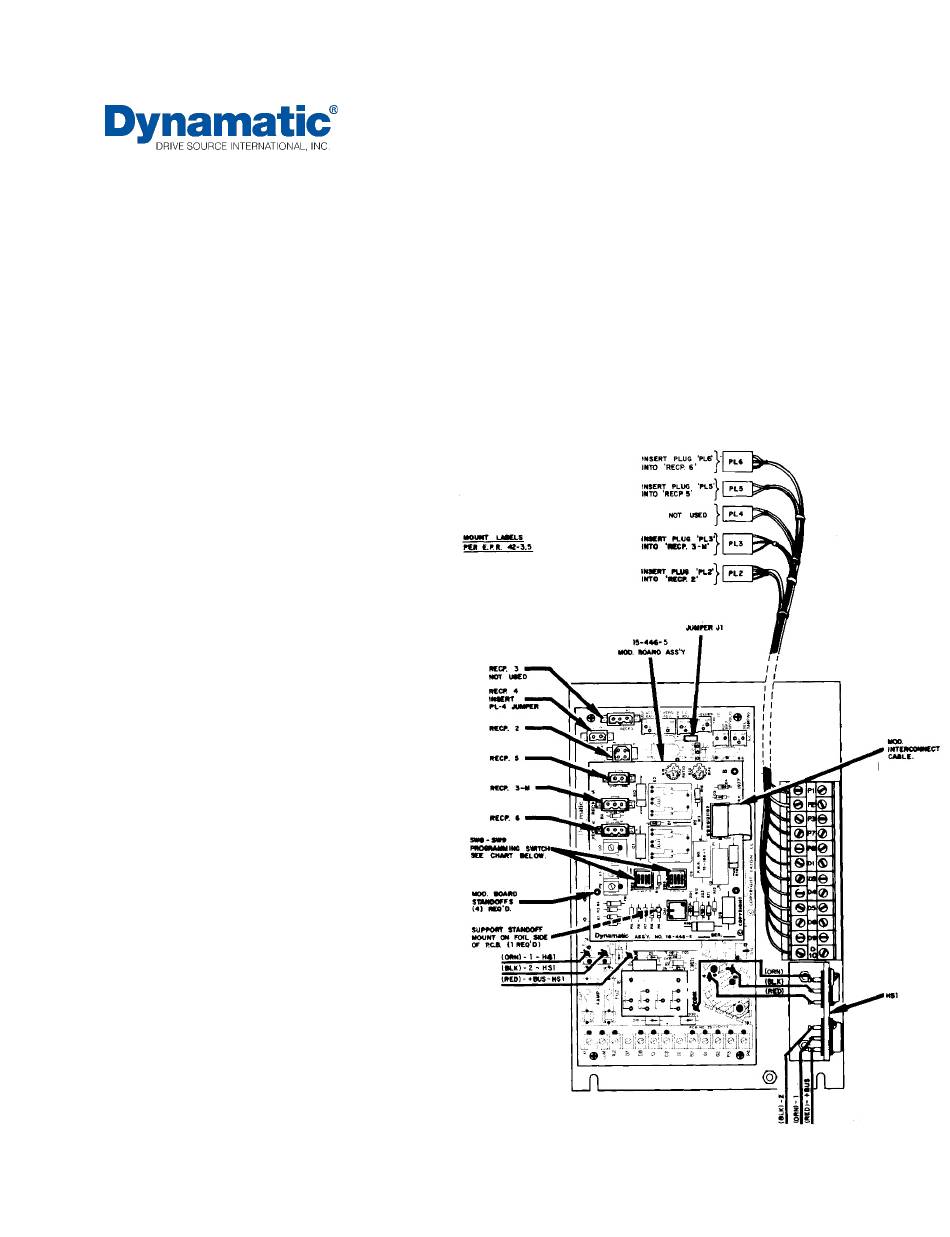

Model 4050 Controller Panel with Auto/Manual Low
Signal Follower (Ext. Ratio) Modification board 15-446-5
15-539-11
1
External Ratio Adjustment
diagram,
switch
wiring
connection,
operation
and
Drive Source International/Dynamatic
7900 Durand Ave Bldg 3 Sturtevant, WI 53177
sales@dynamatic.com
800-548-2169 •
www.Dynamatic.com
