Page 3: Introduction
Introduction To the dealer: Assembly and proper installation of this product is the responsibility of the frontier dealer. Read manual instructions and safety rules. Make sure all items on dealer’s pre‐delivery and delivery check lists in the owner’s/operator’s manual are complete before releasing equipment to the owner. To the owner: Read this manual before operating your Frontier equipment. The information presented will prepare you to do a better and safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become acquainted with all the adjustment and operating procedures before attempting to operate. Replacement manuals can be obtained from your selling dealer. The equipment you have purchased has been carefully engineered and manufactured to provide dependable and satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified. Observe all safety information in this manual and safety decals on the equipment. For service, your authorized Frontier dealer has trained mechanics, genuine Frontier service parts, and the necessary tools and equipment to handle all your needs. Use only genuine Frontier service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces provided: Model:____________________________________ Date of purchase:_________________ Serial Number: (see Safety Decal section for location)____________________________ Provide this information to your dealer to obtain correct repair parts. Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to equipment. The terms CAUTION,WARNING and DANGER are used in conjunction with the Safety‐Alert Symbol, (a triangle with an exclamation mark), to indicate the degree of hazard for items of personal safety. ... - Page 4 Special Messages Your manual contains special messages to bring attention to potential safety concerns, machine damage as well as helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage. CAUTION: Avoid injury! This symbol and text highlight potential hazards or death to the operator or bystanders that may occur if the hazards or procedures are ignored. IMPORTANT: Avoid damage! This text is used to tell the operator of actions or conditions that might result in damage to the machine. The machine safety decals shown in this section are placed in important areas on your machine to draw attention to potential safety hazards. On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety‐alert symbol. DANGER identifies the most serious hazards. The operatorʹs manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety‐alert symbol. ...
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION……………………………………………………………………….2 GENERAL INFORMATION...................5 SAFETY & INSTRUCTIONAL DECALS………………..……………………………6 SAFETY RULES………………………………………………………………………...7‐9 DETAILS ABOUT YOUR MULCH FINISHER…............10 DEALER INSTRUCTIONS…………………………………………………………...11‐12 INSTALLATION & REMOVAL……………………………………………………..13‐16 OPERATING THE MULCH FINISHER…………………………………………….17‐25 WHEN TO USE & CHECKING TRACTOR SPEED……………………………17‐18 OPERATING – TILLAGE COMPONENTS……………………………………..19‐21 OPERATING THE DISK GANGS…………………………………………………22 SERVICE & TROUBLESHOOTING...……………………………………………23‐25 STORAGE………………………………………………………………………………26‐27 SPECIFICATIONS………………………………………………………………………28 ATTACHMENTS…………..………………………………………………………..29‐31 BOLT TORQUE CHARTS………………….…………………………………………32‐33 ... -
Page 6: General Information
General Information The purpose of this manual is to assist you in operating and maintaining your Plotmaster™ Mulch Finisher. Read it carefully. It furnishes information and instructions that will help you achieve years of dependable performance. These instructions have been compiled from field experience and engineering data. Some information may be general in nature, due to unknown and varying operating conditions. However, through experience and these instructions, you should be able to develop procedures suitable to your particular situation. The illustrations and data used in this manual were current at the time of publishing. However, due to possible inline production changes, your machine may vary slightly in detail. We reserve the right to redesign and change the machine as may be necessary without notification. Throughout this manual, references are made to right and left direction. These are determined by standing behind the tractor facing the direction of forward travel. SAFETY & INSTRUCTIONAL DECALS ATTENTION! Failure to follow these instructions could result in serious injury or death. Replace decals immediately if damaged or worn. Qty 1 – Serial Number Decal... - Page 10 ...
-
Page 11: Details About Your Mulch Finisher

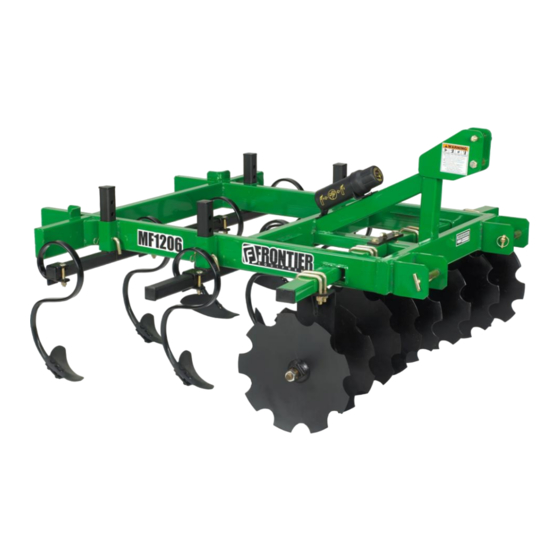

Details about your Mulch Finisher This Mulch Finisher consists of a sturdy mainframe with various components and attachments that may be added or removed. The MF1204 comes with either a single‐point or Cat I 3‐point hitch, while the MF1206 and MF1208 come with a 3‐point hitch only. The MF1204 drawbar is designed for a 2 inch ball hitch. The MF1206 and MF1208 are designed to fit Cat I or II hitches. All 3‐ point models are iMatch (Quick Hitch) compatible. The single‐point hitch is designed to hook up with many types of pulling machines and vehicles. Examples are an ATV (500 CC or better), utility vehicles (Gators), and small tractors. The pull‐type machine is equipped with an electric jack and attached wheel assembly. This is to give ground clearance during transporting of unit and allows you to adjust the depth of the cut by using the wheels as a depth gauge. If the electric jack should fail, a 3/16” allen wrench will remove the cover and a 1/4” allen wrench will turn motor shaft. CAUTION: Avoid injury! Do NOT pull this unit on a public road or highway. The wheels on this machine are not intended for road use. NEVER Un‐hook Unit from Tractor when Plow Attachments are Removed! This may result in injury. ... -
Page 12: Dealer Instructions
DEALER INSTRUCTIONS Pre‐assembly All tractor units come completely assembled to the dealer, with the exception of the rear drag/roller, which must be attached to the rear of the machine with the provided pins. Cut the banding and remove the unit from the pallet. Then remove any packing material and ensure that the additional points are available. If you have a pull‐type hitch model, remove machine from crate and install the single point hitch and mounting bracket with supplied hardware. Then install the drag/roller to the rear of the machine. Dealer Checklist Inspect the equipment thoroughly to be certain it is set up properly before delivering it to the customer. The following check list is a reminder of points to inspect. Check off each item if it is found satisfactory or after proper adjustment is made. ____ Check that all safety decals are installed and in good condition. Replace if damaged. ____ Check all bolts to be sure they are tight. ____ Check that all cotter pins and safety pins are properly installed. ____The disc gangs have been pre assembled and mounted to the main frame at the factory. It is important for the dealer to visually check and make sure all parts are intact prior to delivery to customer. ____ Show customer the safe, proper procedures to be used when mounting, dismounting, and storing equipment. ____ For 3‐point units, add wheel weights, ballast in front tires, and/or front tractor weight to enhance front end stability. A minimum 20% of tractor and equipment gross weight must be on front tractor wheels. When adding weight to attain 20% of tractor and equipment weight on front tractor wheels, you must not exceed the ROPS weight certification. Weigh the tractor and equipment. Do not estimate! ____ Show customer how to make adjustments. ____ Present Operator’s Manual and request that customer and all operators read it before operating equipment. Point out the manual safety rules, explain their meanings and emphasize the increased safety hazards that exist when safety rules are not followed. ... - Page 13 Dealer Checklist (continued) ____ POINT OUT THE SAFETY DECALS. Explain their meaning and the need to keep them in place and in good condition. Emphasize the increased safety hazards when instructions are not followed. ____ Explain to customer the potential crushing hazards of going underneath raised equipment. Instruct customer that service work does not require going underneath unit and never to do so. ...
-
Page 14: Installation & Removal
Installation & Removal Installing Pull‐Type Machine on Utility Vehicle 1. Park ATV or Gator. (See SAFETY RULES section.) 2. Place the machine behind the vehicle. MF1204 Drawn Hitch 3. Place single point hitch onto vehicle 2” hitch ball. Close coupler and align the hitch pin holes. NOTE: For optimum performance, keep drawbar as level as possible during operation and transport (See Operating section). 4. Install hitch pin through holes in coupler. 5. Secure spring locking pin through hole in hitch pin. 6. Attach wiring clips to vehicle battery. ... - Page 15 Installing 3‐Point Machine on Tractor 1. Park tractor safely. (See SAFETY RULES section.) 2. Place the machine behind the tractor. iMatch Hitch 3‐Point Hitch 3. Engage three point pins onto tractor iMatch hitch or Quick‐Coupler. Make sure proper bushings are in place. Close locking latches (A). 4. If tractor does not have an iMatch or Quick‐Coupler, Install lower hitch pins (C) through holes in link arms and secure with spring locking pins (B). Then install top hitch pin (C) in tractor turnbuckle and secure with locking clip (B). Make sure proper bushings are in place. ...
- Page 16 Removing Pull‐Type Machine from Utility Vehicle 1. Park unit safely. (See SAFETY RULES section.) CAUTION: Avoid injury! Do not attempt to disconnect machine from vehicle with material remaining in the unit. Machine could become unstable causing injury. . Remove all material from seed box. MF1204 Drawbar Hitch 3. Remove spring locking pin from hitch coupler. 4. Remove hitch pin. Open coupler. 5. Move machine off vehicle hitch ball. 6. Install hitch pin and spring locking pin on hitch coupler for storage. ...
- Page 17 Removing 3‐Point Machine from Tractor 1. Park tractor safely. (See SAFETY RULES section.) CAUTION: Avoid injury! Do not attempt to disconnect machine from tractor with material remaining in the unit. Machine could become unstable causing injury. . 2. Remove all material from tines and disk iMatch Hitch 3‐Point Hitch 3. Disconnect locking mechanisms (A) on iMatch or Quick Hitch and lower tractor 3‐point hitch to disengage. 4. If attached directly to tractor 3‐point hitch, remove spring locking pins (B) and hitch pins (C) from link arms and locking clip (B) and hitch pin (C) from turnbuckle. 5. Install hitch pins and locking pins and clips on hitch for storage. ...
-
Page 18: Operating The Mulch Finisher
Operating the Mulch Finisher Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped out by an operator’s single careless act. addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, judgment, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment. The operator is responsible for the safe operation of this equipment. The operator must be properly trained. Operators should be familiar with the equipment, the tractor, and all safety practices before starting operation. Read the safety rules and safety decals on pages 6‐9. Owner should check and tighten all hardware after the first hour of operation. The break in stage of your new Mulch Finisher can cause minimal loosening of disc gangs and other hardware as the new paint wears. Please see Bolt Torque Chart (pages 33‐34) for proper torque information. When to Use Mulch Finisher Grass should be less than 76 mm (3 in.) high for best tillage results. CAUTION: Avoid injury! Keep hands and feet away from all moving parts. Never carry riders. IMPORTANT: Avoid damage! Never exceed the weight capacity of the unit. Never operate with broken or worn out parts. On Pull‐Type model, engage wheels to transport position when crossing concrete or asphalt surfaces. Always back carefully in a straight line to avoid jackknifing the machine. Periodically remove debris build up that can restrict performance of or damage the S‐tines. ... - Page 19 Checking Tractor Ground Speed 1. Check ground speed in an open area. 2. Measure a test area that is 30.5 m (100 ft) in length. 3. Operate tractor at a consistent RPM. Operate tractor at a low speed and drive the test distance. Record the time needed to travel that distance. 4. Make three passes, recording the time for each pass. The average time should be 14 to 23 seconds to achieve the recommended operating speed range: ∙ at 4.8 km/h (3 mph), the average time traveling the test distance should be 23 seconds. ∙ at 8 km/h (5 mph), the average time traveling the test distance should be 14 seconds. 5. Adjust speed accordingly to achieve the recommended speed range. ...
-
Page 20: Operating - Tillage Components
Operating – Tillage Components When to use the Tillage Components The disks and S‐tines will actively penetrate soil, allowing much needed air, water, and nutrients to enter the soil. It will also relieve soil compaction and manage weed populations. Moderate soil moisture content is important for proper operation of the Mulch Finisher. Penetration will not occur in extremely dry soil, and very wet conditions will cause the unit to ʺbog down,ʺ possibly causing product damage. The tillage components should not be used when conditions are too wet or too dry. To determine condition, dig a small amount of your soil, about 76 mm (3 in.) deep: If soil appears powdery and brittle, it is too dry. Wait until a later date, after a rainfall. If soil appears damp, roll a small amount into a ball in the palm of your hand, if it forms a ball, then it is too wet. Ideally, the soil should fall apart when rolled in the palm of your hand. Wait till a later date for soil to dry. If soil is too wet, the S‐tines will penetrate too deep and your tractor could lose traction, causing machine damage. If soil is too dry, the S‐tines will not penetrate the soil properly. Checking the Disks and S‐Tines during Operation on a Tractor Operation of the disk and S‐tines will vary with soil type, condition, and moisture levels. Make sure soil conditions are appropriate for operation. Do not add weights to the machine to try and improve penetration in dry conditions. Test operation of the disks and S‐tines by driving the tractor forward about 3 m (10 ft). Observe the operation. Check for uniform soil flow, levelness of the ground, and proper sizing of clods. Adjust ground speed to achieve proper tillage results. Periodically, check the S‐tines for residue build‐up. Remove any debris that might restrict or cause damage to the S‐tines. Grass should be less than 76 mm (3 in.) high for proper tillage action during food plot planting. When in use, all S‐tines on the Mulch Finisher should deflect back and ʺflipʺ the soil backward. If disks or S‐tines seem to drag, the unit is too low and should be raised. If all the ... - Page 21 disks or S‐tines stay in the free position, the unit should be lowered. If the disks or S‐tines are not moving through the full range of motion, make up or down adjustments as required. Checking the Disks and S‐Tines during Operation on a Utility Vehicle NOTE: Make up or down adjustments by no more than 6.4 mm (1/4 in.) each time, until proper results are achieved. MF1204 Pull‐Type Machine 1. Adjust height of wheels with electric motor that comes with machine. 2. Place single‐point hitch in center hole as a starting point. . 3. Tow Mulch Finisher to a level site and test depth of machine 4. Raise or lower wheels to place disks and S‐tine points at desired depth. Machine frame should be relatively level front‐to‐rear. 5. For deeper tillage, adjust single‐point hitch to lowest hole. For shallower tillage or transport, adjust it to the top hole. ...
- Page 22 Selecting the Operating Positions of the S‐Tines CAUTION: Avoid injury! Do not make adjustments unless the machine is installed on a tractor or utility vehicle. Keep hands and feet away from disks and S‐tines when lowering to the ground. Adjust S‐tine toolbar up and down by sliding it within the frame receivers and locking it in place using pins (A) and locking clips. TRANSPORT AND OPERATE HIGH (B) ‐ Use bottom hole to raise S‐tines out of the ground. OPERATE MEDIUM (C) ‐ Use middle hole for minimum S‐tine penetration. OPERATE LOW (D) ‐ Use top hole for maximum S‐tine penetration. ...
-
Page 23: Operating The Disk Gangs
Operating the Disk Gangs CAUTION: Avoid injury! Disk blades are sharp. Wear gloves and handle with care. Keep hands and feet away from all moving parts. The disk gangs have three angle adjustments. FORWARD HOLE: Shallowest angle setting, use for light disking MIDDLE HOLE: Medium angle setting, use for normal disking REAR HOLE: Sharpest angle setting, use for aggressive disking 1. Remove spring lock pin (A) and pull out angle adjustment pin (B). 2. Push or pull disk gangs to desired position. Re‐install pin (B) and (A). ... -
Page 24: Service & Troubleshooting
Using the control box for raising wheels The box illustrated above is for the pull‐type model and contains one switch to raise and lower the wheels for transport or to control the depth of tillage. This box can be connected with alligator clips or wired directly to the utility vehicle battery. ... - Page 25 Service and Troubleshooting Servicing the Attachment CAUTION: Avoid injury! Disks and S‐tines are sharp. Wear gloves and handle with care. Shield sharp parts during service work. • NEVER GO UNDERNEATH EQUIPMENT. Never place any part of the body underneath equipment or between moveable parts even when the engine has been turned off. Hydraulic system leak down, hydraulic system failures, mechanical failures, or movement of control levers can cause equipment to drop or rotate unexpectedly and cause severe injury or death. • Service work does not require going underneath. • Read the Operator’s Manual for service instructions or have service performed by a qualified dealer. NEVER Un‐hook Unit from Tractor when Plow Attachments are Removed! This may result in injury. To prevent or eliminate rust on disks and S‐tines or other ground engaging parts, apply a light coat of oil on them after each use. For rust appearing on any part of your machine, sand lightly and coat with enamel. Grease each bearing assembly before each use. Periodically check the disks and S‐tines. Remove any debris that might build up and restrict their performance. Periodically check tightness of all fasteners. ...
- Page 26 Troubleshooting 1. Unit not tracking or is fishtailing A. Adjust top link to increase weight on the rear of the machine. B. Decrease speed. C. Reduce disk gang angle. D. Machine assembled incorrectly. Ensure that S‐tines are properly spaced. E. Make sure that all points or sweeps are equally worn. 2. Unit skipping or jumping in untilled, hard soil A. Decrease speed. B. Reduce disk gang angle. C. Reduce depth of cut by carrying on 3 point lift for the first pass. NOTE: Some experimentation may be required by trial and error to arrive at proper solution. 3. Unit leaving an un‐level soil profile. A. Place roller on top of drag. B. Reduce depth of S‐tines. C. Level the frame of the machine by adjusting tractor turnbuckle. D. Any combination of the above. 4. Unit ridging on the outside of machine. A. Decrease speed. B. Reduce disk gang angle. C. Level the frame of the machine by adjusting tractor turnbuckle. D. Any combination of the above. 5. Blades and/or S‐tines plugging with soil or trash. A. Soil conditions not suitable for tillage due to excessive moisture. B. Grass is too high. Mow with a rotary cutter before tillage. ...
-
Page 27: Storage
Storage Storing the Mulch Finisher CAUTION: Avoid injury! Disks and S‐tine points are sharp. Wear gloves and handle with care. Store attachments so sharp parts are shielded from contact. 1. Park tractor or utility vehicle safely. (See SAFETY RULES section.) 2. Remove machine from tractor or utility vehicle (See Installation & Removal section). 3. Wash machine thoroughly. Allow to dry completely. 4. Replace all worn, damaged, or missing parts. 5. Sand any rusted areas lightly and paint with enamel. 6. Lubricate moving parts. 7. Apply a light coverage of oil to all disks, S‐tines, and points to prevent rust. 8. Reduce air pressure in tires on pull‐type unit and raise wheels off the ground. 9. If storing inside, place machine in a dry area with disks and points on the floor. 10. If storing outside, block machine off the ground to prevent contact with moisture. 11. Place a waterproof cover over the machine if it must be stored outside. ... - Page 28 Removing the Machine from Storage CAUTION: Avoid injury! Disks and S‐tine points are sharp. Wear gloves and handle with care. Store attachments so sharp parts are shielded from contact. 1. Wash the machine if necessary. Allow to dry completely. 2. Inspect tires for deterioration (pull‐type machine). 3. Inflate tires to proper pressure (pull‐type machine). 4. Make sure all parts are in place and hardware is secure. ...
-
Page 29: Specifications
Mulch Finisher Seeder Specifications Models #’s MF1204 MF1206 MF1208 Machine weight 753 lbs 1066 lbs 1242 lbs Tractor Horsepower 30-50 PTO HP 45-75 PTO HP 60-100 PTO HP range Pull-type hitch 20 (500 CC)-40 Horsepower range Working width 42” 60” 82”... -
Page 30: Attachments
Attachments The Frontier Mulch Finisher is adaptable to many uses and needs. The following attachments can be ordered to meet your specific needs. Drawbar and Electric Lift Attachment (MF1204 Only) The MF1204 can be ordered as a tractor 3‐point hitch unit or a utility vehicle pull‐type unit. Additionally, any MF1204 3‐point machine can also be converted to a pull‐type machine with this attachment. The kit includes a drawbar for a 2” ball hitch, drawbar receiver and hardware, electric lift jack, control box, and wheel assembly (see below). Pull‐Type Components S‐Tine Toolbar Attachment (MF1204 3‐point Unit Only) The MF1204 comes standard with only ONE toolbar equipped with three S‐Tines. The tractor 3‐point machine can be equipped with this second toolbar attachment, which comes with two S‐tines and the same compliment of sweeps, chisels, and turning tips as the base machine. This second toolbar slides into the frame receivers that are in front of the existing toolbar. This attachment will NOT work on the pull‐type machine because the wheel assembly mounts in these receivers (see next page). ... - Page 31 Second S‐Tine Toolbar Frame Grating Kit (MF1206 and MF1208 Only) The framework of the MF1206 and MF1208 is set‐up from the factory with brackets to attach two metal grates. These are very handy to haul seed, tillage components, weight, etc. on the Food Plot Seeder. Always secure whatever you are hauling with heavy straps. Metal Grates (2)
-
Page 32: Attachments
Seeding Conversion Kit To turn a Mulch Finisher into a seeding machine, you can order a kit that includes all of the seeding components found on the FP12 series Food Plot Seeder. This includes the rear sub‐ frame, seedbox(s), rear drag, and roller. Seeding Components Rolling Basket Attachment To further level and condition your seedbed, an optional rolling basket is available for all Mulch Finishers. It includes an aggressive, slat‐type rolling basket to break up clods and move soil, as well as two springs to provide the necessary downforce. Rolling Basket... - Page 34 Copyright © 2008 Plotmaster Systems, LTD. All Rights Reserved.
