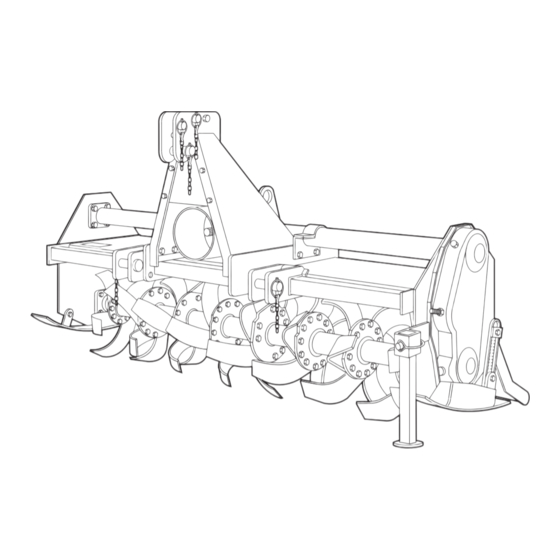

Frontier RT 1142 Operator's Manual

Rotary tillers
Hide thumbs
Table of Contents

Advertisement

Quick Links

ROTARY TILLERS
RT 1142
RT 1149
Cod. F07010181 / Rev. 05 (2011-09)
O P E R A T O R ' S
RT 1157
RT 1165
M A N U A L
RT 1265

Advertisement

Table of Contents
loading

Related Manuals for Frontier RT 1142

Summary of Contents for Frontier RT 1142

  • Page 1 O P E R A T O R ’ S M A N U A L ROTARY TILLERS RT 1142 RT 1265 RT 1157 RT 1165 RT 1149 Cod. F07010181 / Rev. 05 (2011-09)

  • Page 2: Table Of Contents

    Removing tiller from storage ......27 Operating Operate safetly ..........16 Assembly / Spare parts Wear appropriate clothing ......17 RT 1142-1149 ..........28 Stay clear of rotating driveline ...... 17 RT 1157-1165..........30 Raising parking stand ........17 RT 1265 ............32 Lowering parking stand ........
  • Page 3 TO THE DEALER: Assembly and proper installation of this product is the responsibility of the Frontier dealer. Read manual instruction and safety rules. Make sure all items on the Dealer’s Pre-Delivery Check List in the Operator’s Manual are completed before releasing equipment to the owner.

  • Page 4: Technical Specifi Cation

    TECHNICAL SPECIFICATIONS RT 1142 - 1149 (Adjustable offset) RT 1157 - 1165 (Adjustable offset) RT 1265 Technical specifi cations - Page 4...
  • Page 5 TECHNICAL SPECIFICATIONS RT 1142 - 1149 Model Work/width Tractor HP Tractor HP Weight Side Speeds Input Hitch Tines Rotor Rotor inches lbs. Drive shaft gear box speed offset blades fl anges Chain Shear Cat. “I” RT 1142 10-20 Single 3.9”...

  • Page 6: Technical Specifi Cation - Hitch

    TECHNICAL SPECIFICATIONS - HITCH RT 1142 and 1149: Cat. «I» Standard RT 1142 and 1149: Cat. «I» Quick Coupler Without bushings: Cat. «I» Standard With bushings: Cat. «I» Quick Coupler RT 1157 and 1165 : Cat. «I» and «II» Quick Coupler RT 1157 and 1165 : Cat.

  • Page 7: Safety Signs

    SAFETY SIGNS Safety-alert symbol Read and recognize safety information. Be alert to the potential for personal injury when you see this safety-alert symbol. On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with safety-alert symbol. DANGER identifi es the most serious hazards. In this manual, the word CAUTION and this symbol call attention to safety messages.

  • Page 8: Machine Safety Labels And Positions

    MACHINE SAFETY LABELS AND POSITIONS RT 1142 - 1149 RT 1157 - 1165 RT 1265 Safety Signs - Page 8...
  • Page 9 MACHINE SAFETY LABELS AND POSITIONS RT 1142 - 1149 Kg... GREASE RT 1157 - 1165 LEVEL RT 1265 6) Coupling point for lifting (indicating the maximun capacity) 7) Greasing point 8) Oil level plug 9) Oil drain plug 10) Oil fi ll plug...

  • Page 10: Preparing The Vehicle

    • LOCK park brake. • FIRMLY block tiller on horizontal surface. Locate driller pin in holes (B). RT 1142-1149 model. 2. Fasten each draft link to draft link brackets with drilled pins and quiklock pins (C). Preparing the vehicle - Page 10...
  • Page 11 2. Fasten each draft link to draft link brackets with drilled pins and quiklock pins (C). Locate driller pin in top holes (D) RT 1142-1149 model. 3. Install center link (F) on tiller and fasten with drilled pin and quiklock pin (E).

  • Page 12: Pto Shaft

    INSTALLING 4. Install PTO shaft to tractor. IMPORTANT: Tiller MUST BE level front to rear. • Engage the cardan shaft and check that it is perfectly locked on the tractor PTO (G). Check that the guard (H) is free to turn and fi x it with the relative latch. 5.

  • Page 13: Pto Shaft With Shear Pin

    INSTALLING PTO shaft with shear pin (1142 model) The shear pin, inserted in the PTO shaft, is equipped with a safety bolt (A) that is set for an average force. Whenever unduly resistant obstacles cause the bolt to shear, it must be replaced by a new bolt. PTO shaft with clutch (1149-1157-1165-1265 model) The PTO shaft can be equipped with safety clutch to...

  • Page 14: Quick Coupler (Optional)

    INSTALLING Quick Coupler (optional) 1) Install hitch Quick Coupler (A) on the tractor (see tractor operator manual). 2) Stop vehicle on a level surface, not on a slope, then move the tractor back until the Quick Coupler (A) is range with the (B) and (C) hitch points. 3) Raise the Quick Coupler (A) and make sure that tiller’s hitch is in the right position (E).

  • Page 15: Removing

    • STOP engine. • LOCK park brake. • FIRMLY block tiller on horizontal surface. RT 1142 - 1149 4. Disconnect driveline from tractor by pulling back on coupler to release it from the LOCKED position. 5. Remove quik-lock pin (D) and drilled pin (E) from center link (F).

  • Page 16: Operating

    OPERATING Operate safely • Protect your hands when you inspect or unplug the tiller. You may need gloves or tools, such as a screwdri- ver or scraper. Be sure hardware is tight. Repair or replace damaged, badly worn, or missing parts. Be sure guards and shields are in good condition and fastened in place.

  • Page 17: Wear Appropriate Clothing

    OPERATING Wear appropriate clothing • Wear close fi tting clothing and safely equipment appropriate for the job. • Loud noise can cause impairment or loss of hearing, wear a suitable protective device such as ear- plugs. Stay clear of rotating drivelines Entanglement in rotating driveline can cause serious injury or death: •...

  • Page 18: Leveling Tiller (Front-To-Rear)

    OPERATING Leveling tiller (front-to-rear) Start the engine. Lower the tiller to 25 mm (1 in.) off the ground. Stop the engine. Make sure the top of the tiller is LEVEL, or PARAL- LEL with the ground, front-to-rear. Adjust level, if necessary. To adjust level: Start the engine.

  • Page 19: Adjustable Offset

    Adjustable offset The tiller unit can be shifted sideways in relation to the three-point hitch. This makes the implement extremely RT 1142 - 1149 versatile during the various working conditions. Use of the hexagonal drive shaft allows the tiller unit to quickly slide, thus notably simplifyng the operation.

  • Page 20: Tilling Tips

    PART NUMBERS MAY CHANGE, use part numbers listed at the end of this manual when you order. If a number changes, your dealer will have the latest number. WHEN YOU ORDER PARTS, your Frontier Equipment dealer needs your machine serial number. This is the number you have recorded in the INTRODUCTION section in the front of this manual.

  • Page 21: Service Machine Safely

    SERVICE MACHINE SAFELY Practice safe maintenance • Understand service procedure before doing work. Keep area clean and dry. • Never lubricate, service, or adjust machine while it is moving. Keep safety devices in place and in working condition. Keep hardware tight. •...

  • Page 22: Service Lubrication

    (C) (if the cardan shaft has a clutch). Check the tightening of the clutch springs. Every 1000 work hours Greasing chain (RT 1142 - 1149) 1. Install park stand. 2. Lower tiller to the ground.

  • Page 23: Greasing And Lubricant Points

    SERVICE LUBRICATION Greasing and lubricant points RT 1142 - 1149 model D) Rotor spindle lubricator E) Reduction unit oil plug: Qty. 0.5 lt (0.13 US gal.) M) Hoe blades fi xing bolts N) Greasing chain (see Service lubrication: Every 1000 working hours): Qty.

  • Page 24: Service

    To get the best performance from your tiller: • Replace badly bent, worn, or broken tines immediatly. • Replace worn or broken hardware (see your Frontier dealer for correct hardware). • MAKE SURE to replace tines on ONE spindle at time to keep spiral tine pattern.

  • Page 25: Tines

    SERVICE CAUTION: Make sure you block tiller before doing any service on the tiller. • STOP engine. • LOCK park brake. • FIRMLY block tiller on horizontal surface. Tines can be changed with the tiller mounted on tractor. Make sure you block the tiller before doing any service on the tiller.

  • Page 26: Troubleshooting

    Using troubleshooting chart If you are experiencing a problem that is not listed in this chart, see your Frontier dealer for service. When you have checked all the possible causes listed and you are still experiencing the problem, see your Frontier dealer.

  • Page 27: Storing Machine

    STORING MACHINE Storing tiller CAUTION: Before you work around hitch: • STOP engine. • LOCK park brake. • FIRMLY block tiller on horizontal surface. 1. Put parking stand in the DOWN position (See Lowering Parking Stand in the Operating Tiller sec- tion).

  • Page 28: Assembly / Spare Parts

    ASSEMBLY RT 1142 - 1149 CAUTION: FIRMLY block tiller on horizontal surface. Installing mast braces (PHASE 1) 1) Install spacer (D), bolt (F) and nut (B) on mast braces (A and G). Do not tighten bolts and nuts at this time.
  • Page 29 ASSEMBLY RT 1142 - 1149 PHASE 1 PHASE 2 OPERATION OPERATION Assembly - Page 29...
  • Page 30 ASSEMBLY RT 1157 - 1165 CAUTION: FIRMLY block tiller on horizontal surface. Installing mast braces (PHASE 1) 1) Install spacers (D), bolts (E) and nuts (C) on mast braces (I, M) and adaptation plates (A,B) Do not tighten bolts and nuts at this time. Installing parking stand (PHASE 2, operation 1) 3) Put parking stand (N) and fasten bolts (O) and nuts (P).
  • Page 31 ASSEMBLY RT 1157 - 1165 PHASE 1 PHASE 2 OPERATION OPERATION OPERATION Assembly - Page 31...
  • Page 32 ASSEMBLY RT 1265 CAUTION: FIRMLY block tiller on horizontal surface. Installing mast braces (PHASE 1) 1) Install spacer (D), bolt (E) and nut (C) on mast braces (I, M). Do not tighten bolts and nuts at this time. 2) Install front and rear plates (B, H) with bolts and nuts (A, F, L, G) on mast braces. Do not tighten bolts and nuts at this time.
  • Page 33 ASSEMBLY RT 1265 PHASE 1 PHASE 2 OPERATION OPERATION OPERATION Assembly - Page 33...

  • Page 34: Installing Driveline On Tiller

    ASSEMBLY / SPARE PARTS Installing driveline on tiller NOTE: Shield removed for clarity ONLY. ALWAYS keep shield in place. 1. Pull coupler back and slide driveline on driveshaft until coupler LOCKS in place. NOTE: You should hear a clicking sound when dri- veline is properly installed.
  • Page 36 Part N°. F07010181...
  • Page 37 P A R T S C A T A L O G ROTARY TILLERS RT 1142 RT 1265 RT 1157 RT 1149 RT 1165 Cod. F07010375 / Rev. 10 (2016-10)
  • Page 38 THE PART NUMBERS IN THIS PARTS CATALOG WERE CORRECT AT THE TIME THIS CATALOG WAS PUBLISHED. IT IS OUR POLICY TO CONSTANTLY IMPROVE OUR MACHINES; THEREFORE, PART NUMBERS MAY CHANGE WHEN ORDERING PARTS. VERIFY PART NUMBERS THROUGH YOUR DEALER. THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 39 RT 1142 - 1149 - 1157 - 1165 - 1265 PRIMARY INDEX FRAME COD. DESCRIPTION A1/m RT 1142 - 1149 B1/m RT 1157 - 1165 RT 1157 - 1165 C1/m RT 1265 RT 1265 ROTOR RT 1142 - 1149 RT 1157 - 1165...
  • Page 40 A1/m RT 1142 - 1149 CHÂSSIS SAFETY DECALS KIT FRENCH KIT THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 41 PLATE MH41100704 LEFT STIRRUP MH41100909 GEARBOX SUPPORT MH29100557 CHAIN MHF01010084 SCR. M14X1,5X55 U5738 8.8ZN MHF01220059 NUT M14X1,5 D980 MHF20020379 SET LABELS "L" JD MHF20020375 "L-W-A" JD FRENCH LABEL SET RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 42 RT 1142 - 1149 ROTOR THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 43 (E) For -XFRT11X142087 and -XFRT11X142100 and below fi t MH41100406 (F) For -XFRT11X142087 and -XFRT11X142100 and below fi t MH41100203 (G) For -XFRT11X142087 and -XFRT11X142100 and below fi t MHF02050112 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 44 A3/m RT 1142 - 1149 LATERAL TRANSMISSION THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 45 (A) For -XFRT11X142087 and -XFRT11X142100 and below fi t MHF02050112 (B) For -XFRT11X142087 and -XFRT11X142100 and below fi t MH41100203 (C) For -XFRT11X142087 and -XFRT11X142100 and below fi t MH41100304 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 46 RT 1142 - 1149 TRANSMISSION THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 47 NUT M8X1,25 D980 MH01110144 CARDAN PROTECTION MH38100146 P.T.O. PROTECTION MHF01410037 WASHER M6 6,4X12,5X1,6 U6592ZN MHF01020403 SCR. M6X1X16 U5739 8.8ZN MHF01220034 NUT M10X1,25 D980 MHF01200244 NUT M8X1,25 U5588 6.8ZN MH41100108 GEARBOX RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 48 A5/m RT 1142 - 1149 PTO SHAFT RT 1149 5MHF08011786 L= 680 BONDIOLI RT 1142 5MHF08011787 L= 680 BONDIOLI THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 49 COMPL. CLUTCH FFL22A/4* MHF08011920 SCREW M8X50+ NUT MHF08011914 FORK S4+FLANGE-FFV23 MHF08001840 BOND.BUSHING MHF08011915 LINING MHF08011916 HUB+DISC FFLA23 MHF08011910 PUSHBUTTON MHF08011917 DIS.INT.149 SP.4 2481A0007 MHF08011918 367001151 SPRING XFFL22A MHF08011919 2481A0008 DISCO SPIN.-X-FFL22 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 50 B1/m RT 1157 - 1165 FRAME THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 51 3RD POINT RIGHT SIDE PANEL MHF01010126 SCR. M16X1,5X110 U5738 8.8ZN MHF01480112 GROWER WASHER D.10 MHF01010254 SCR. M10X1,25X35 U5740 8.8ZN MHF01010244 SCR. M10X1,25X25 U5740 8.8ZN MHF01220034 NUT M10X1,25 D980 MH73100607 LEVELL.BONNET ADJUSTER RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 52 RT 1157 - 1165 FRAME SAFETY DECALS KIT FRENCH KIT THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 53 NUT M10X1,25 D980 MHF01010281 SCR. M12X1,25X25 U5740 8.8ZN MH73114915 SHAFT GUARDS MH73112913 SHAFT GUARDS MH73116913 TRANSM. SHAFT COVER MHF20020418 RT1157/RT1165 MOD. FRONTIER C MHF20020375 "L-W-A" JD FRENCH LABEL SET RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 54 RT 1157 - 1165 ROTOR THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 55 ROTOR SUPPORT SIDE PANEL MHF04010175 BEARING D35 D72 B17 6207 MHF01440033 SPRING WASHER D.35,2X45X1 MHF02050146 ELASTIC RING DE 35X 1,5 U7435 MHF01010244 SCR. M10X1,25X25 U5740 8.8ZN MH00567202 BOLT M12X1,25X35 + N.+ W. RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 56 B4/m RT 1157 - 1165 LATERAL TRANSMISSION THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 57 (A) For -XFRT11X111927 and -XFRT11X111931 and below fi t MHF04010178 (B) For -XFRT11X111927 and -XFRT11X111931 and below fi t MH19100210 (C) For -XFRT11X111927 and -XFRT11X111931 and below fi t MH48000201 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 58 RT 1157 - 1165 TRANSMISSION THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 59 MH48000110 GASKET MM.0,3 MH48000111 GASKET MM.0,5 MH48000126 FLANGE SUPPORT MH73100106 REDUCTION GEAR ASS.BLY (A) For -XFRT11X111927 and below fi t MH48014202 (B) For -XFRT11X111931 and below fi t MH48016202 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 60 B6/m RT 1157 - 1165 PTO SHAFT RT 1157 5MHF08011785 L= 680 BONDIOLI RT 1165 9 10 THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 61 MHF08011913 513860302 HUB 3/8 Z6 XFL. 32 MHF08011910 403000002R10 BUTTON 238000061 MHF08011906 2481C0007 INT.DISK 170 SP.4 MHF08011907 367002200 SPRING 141X95 MHF08011911 SCREW 10X60 8.8 MHF08011908 248200001 PRESSURE DISK 178X95 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 62 C1/m RT 1265 FRAME 27 28 7 16 THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 63 (B) For -1XFRT12XTE0140230 and below fi t MH69100546 (C) For -MCRT1260X500913 and -MCRT1265X500963 and below fi t MH63100936 (D) For -1XFRT12XTE0140230 and below fi t MH70100904 (E) For -1XFRT12XTE0140230 and below fi t MH70100903 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 64 RT 1265 FRAME SAFETY DECALS KIT FRENCH KIT THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 65 SNAP PIN D.8X 70 ZN MHF01010283 SCR. M12X1,25X30 U5740 8.8ZN MH73100715 SUPPORT MH66100556 SUPPORT MHF05100025 PLUG MHF01220034 NUT M10X1,25 D980 MHF20020457 DECAL KIT JD RT1070E-1260-1265 MHF20020375 "L-W-A" JD FRENCH LABEL SET RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 66 RT 1265 ROTOR THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 67 ROTOR PIN SIDE PANEL MH19100431 ROTOR SUPPORT SIDE PANEL MHF03010287 OIL SEAL 45X65X10 MHF04010216 BEARING D35 D80 B21 6307 MHF01440033 SPRING WASHER D.35,2X45X1 MHF02050146 ELASTIC RING DE 35X 1,5 U7435 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 68 RT 1265 LATERAL TRANSMISSION THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 69 MH70100707 TRANSMISSION SIDE PANEL MHF01220022 NUT M8X1,25 D980 A) For MCRT 1260X 700992 and below replace also the chain stretcher MH02108305. (B) For -1XFRT12XTE0140230 and below fi t MH69100545 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 70 RT 1265 TRANSMISSION 16 1 29 27 THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 71 MH74100126 PROTECTION SUPPORT MHF01410064 WASHER M10 10,5X20X2 U6592 ZN MHF01020403 SCR. M6X1X16 U5739 8.8ZN MHF01410037 WASHER M6 6,4X12,5X1,6 U6592ZN MH01110144 CARDAN PROTECTION MH38100146 P.T.O. PROTECTION MHF03100174 GASKET SET A2 RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 72 C7/m RT 1265 PTO SHAFT 5MHF08011789 L= 770 BONDIOLI RT 1265 10 11 THIS PARTS LISTING IS CONTINUED RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)
  • Page 73 MHF08011907 SPRING 141X95 MHF08011908 PRESSURE DISC 178X95 (A) For previous cardan shaft MHF08011533 fi t. In case of replacement of the whole cardan shaft, order new cardan shaft MHF08011789. RT 1142 - 1149 - 1157 - 1165 - 1265 (October-16)

This manual is also suitable for:

Rt 1149Rt 1157Rt 1165Rt 1265
