- Page 1 User ManualUser Manual L-862S Stop Bar Elevated Airfield Lighting Light Product Solutions Catalog 96A0246, Rev. G, www.adb-air.com...
-
Page 2: Disclaimer / Standard Warranty
Storage precautions that must be followed. ADB reserves the right to examine goods upon which a claim is made. Said goods must be presented in the same condition as when the defect therein was discovered. ADB Airfield Solutions furthers reserves the right to require the return of such goods to establish any claim. -
Page 3: Liability
Use this equipment only as described in the manual. ADB cannot be held responsible for injuries or damages resulting from non-standard, unintended uses of its equipment. The equipment is designed and intended only for the purpose described in the manual. -
Page 4: Adb Bvba
This manual could contain technical inaccuracies or typographical errors. ADB BVBA reserves the right to revise this manual from time to time in the contents thereof without obligation of ADB BVBA to notify any person of such revision or change. Details and values given in this manual are average values and have been compiled with care. -
Page 5: Table Of Contents
1.2.9 Maintenance and Repair ....................4 Elevated Stop Bar Light ............................5 2.1 Record of Changes ......................... 5 2.2 Introduction ......................... 6 2.2.1 L-862S Light Fixture: Required Equipment ................7 2.2.2 Specifications ........................ 7 2.2.2.1 Input ........................7 2.2.2.2 Lamp........................7 2.2.2.3 Rated Lamp Life ....................... - Page 6 96A0246 Rev. G 2.6.2 Lens, Reflector, and Gasket Replacement ................18 3.7 Parts ..........................21 3.7.1 L-862S Light Fixture Part Numbering System ................21 3.7.2 L-862S Light Fixture Parts List ................... 21 3.7.3 Possible Spare Parts ....................... 22 © ADB Airfield Solutions All Rights Reserved...
-
Page 7: Safety
1.0 Safety This section contains general safety instructions for installing and using ADB Airfield Solutions equipment. Some safety instructions may not apply to the equipment in this manual. Task- and equipment-specific warnings are included in other sections of this manual where appropriate. -
Page 8: To Use This Equipment Safely
Failure to follow these warnings may cause the fasteners to loosen, damage the equipment, potentially to loosen the equipment. This can lead to a highly dangerous situation of FOD, with potential lethal consequences. © ADB Airfield Solutions All Rights Reserved... -
Page 9: Operation
• Verify that the moving equipment is rated to handle the weight. • When removing equipment from a shipping pallet, carefully balance and secure it using a safety strap. Failure to follow these instructions can result in death, serious injury, or equipment damage. © ADB Airfield Solutions All Rights Reserved... -
Page 10: Action In The Event Of A System Or Component Malfunction
ARC FLASH AND ELECTRIC SHOCK HAZARD Allow only qualified personnel to perform maintenance, troubleshooting, and repair tasks. • Only persons who are properly trained and familiar with ADB Airfield Solutions equipment are permitted to service this equipment. • An open airfield current circuit is capable of generating >5000 Vac and may appear OFF to a meter. -
Page 11: Elevated Stop Bar Light
2.1 Record of Changes Page Description Checked Approved Date Initial Release 10/7/99 Changed to new title page. Changed ADB 5/16/01 to Siemens Airfield Solutions. Changed to new title page. Changed 5/21/11 Siemens to ADB Airfield Solutions. Updated format/ drawings 8/12/14 updated transformers... -
Page 12: Introduction

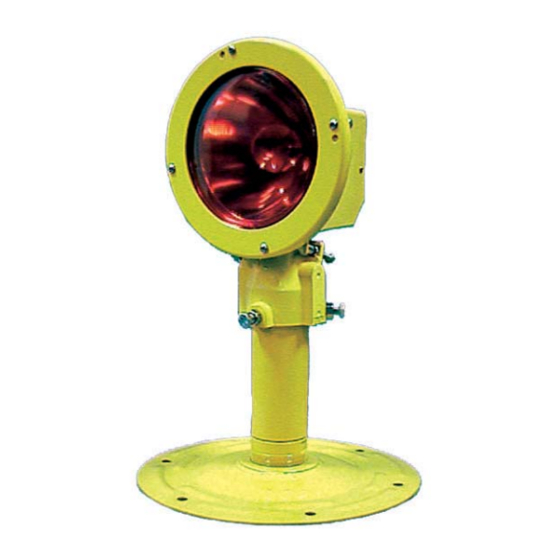

96A0246 Rev. G Introduction 2.2 Introduction See Figure 1 for the standard L-862S light fixture for installation on a base plate with a 2 NPT threaded hub. This section describes the L-862S elevated stop bar fixture. The ADB Airfield Solutions L- 862S light fixtures are installed in-line with in-pavement stop bar lights on each side of the taxiway. -
Page 13: L-862S Light Fixture: Required Equipment
500 hours (minimum) 2.2.2.4 Lens Color Traffic signal red 2.2.2.5 Environmental The L-862S light fixture is designed to operate under the conditions presented below for Operating Conditions temperature, wind, altitude, and relative humidity. 55 °C (-67 °F to +131 °F) 2.2.2.6 Temperature... -
Page 14: Minimum Average Intensity
Traffic signal red 6.6 A 2,000 2.2.2.14 Lamp Current and Refer to Table 6 for lamp current and percent brightness. Percent Brightness Table 6: Lamp Current and Percent Brightness Lamp Current (Amperes) Percent Brightness 0.15 © ADB Airfield Solutions All Rights Reserved... -
Page 15: Installation
This subsection provides installation instructions for mounting the L-867 light base. 2.3.4 Base Mounting See Figure 2. The L-862S light fixtures (1) can be mounted on an L-867 light base (3) with a 2-inch hub mated with a base plate (2) with a diameter and bolt-hole circle corresponding to either a 12-inch (304.8-mm) or 16-inch (406.4-mm) L-867 base. - Page 16 5. Slope the top of the concrete away from the flange portion of the base so the sloped outer edges of the concrete are at surface grade. © ADB Airfield Solutions All Rights Reserved...
-
Page 17: Base Installation
5. Bolt the base plate (5) with the base plate gasket to the L-867 base using six 3/816 stainless steel bolts. Apply a drop of Loctite Grade AV to each bolt thread and use a torque wrench to torque bolts to 100 inch-pounds (11.3 Nt-m). © ADB Airfield Solutions All Rights Reserved... -
Page 18: Light Fixture Installation
8. Base Plate 12. Lens Retaining Ring To install the L-862S light fixture, perform the following procedure: 1. See Figure 3. Put the L-823 cordset (7) through the frangible column (6). 2. See Figure 2. Insert the L-823 male plug (9) into the secondary female plug (8) from the L- 830 transformer (7). - Page 19 (3). Rotate the head to provide the desired vertical alignment. After aligning the light fixture vertically, tighten and apply Loctite to the hex bolts (2) and hex nuts (3). NOTE: Horizontal and vertical alignment parameters are specified in AC 150/5340-30. © ADB Airfield Solutions All Rights Reserved...
-
Page 20: Optional Stake Installation
4. Connectors Disconnect Plug x 6 x 12-in.) 8. Optional Bare Copper Counterpoise 2. Stake Hub 5. 5 KV, L-824 Cable Wire 3. Cable Connector Support 6. Metal Stake (30 in.) 9. L-830 Transformer © ADB Airfield Solutions All Rights Reserved... - Page 21 5. Install the frangible column (1) into the stake hub (2). 6. Align the light fixture horizontally and vertically. Refer to Step 5 in “Light Fixture Installation” on page 12. © ADB Airfield Solutions All Rights Reserved...
-
Page 22: Maintenance
L-862S Stop Bar Elevated Light 96A0246 Rev. G Maintenance 2.4 Maintenance To keep L-862S light fixtures operating efficiently, follow a preventive maintenance schedule. Refer to Table 7. Refer to FAA AC 150/5340-26 for more detailed information. Table 7: L-862S Light Fixture Maintenance... -
Page 23: Troubleshooting
Refer to Table 8. This section contains troubleshooting information. This information covers only the most common problems that you may encounter. If you cannot solve the problem with the information given here, contact your local ADB Airfield Solutions representative for help. -
Page 24: Repair
WARNING Allow only qualified personnel to perform the following tasks. Observe and follow the safety instructions in this document and all other related documentation. This section provides instructions for replacing lamps for the L-862S light fixtures. 2.6.1 Lamp Replacement WARNING De-energize the circuit and lock out the circuit or regulator so that the circuit cannot be energized by remote means before attempting to service the fixture. - Page 25 Figure 5: TOP Stamped on Reflector and Gasket © ADB Airfield Solutions All Rights Reserved...
- Page 26 L-862S Stop Bar Elevated Light 96A0246 Rev. G Repair © ADB Airfield Solutions All Rights Reserved...
-
Page 27: Parts
3.7 Parts To order parts, call local ADB Airfield Solutions Customer Service or your local representative. Figure 6 shows how to determine the part number for a particular L-862S light fixture. 3.7.1 L-862S Light Fixture Part Numbering System Figure 6:... -
Page 28: Possible Spare Parts
Column, 24-in.-diameter 60A2444-2 Column, 30-in.-diameter 60A2444-3 Lens, traffic signal red 63A0958-1 NOTE A: If the optical assembly is received with a clear front lens, remove and discard the clear lens. NS: Not Shown © ADB Airfield Solutions All Rights Reserved... - Page 29 ADB Airfield Solutions Email: info@adb-air.com Suite 4 2820 Argentia Rd., Unit #2 110 High Street Mississauga, Ontario L5N 8G4 ADB Airfield Technologies Ltd. China Maidenhead Canada Room 901, 9F, Fang Heng Intl. Plaza Berkshire Tel: +1 (905) 331 6887 Building C, No. 6 Futong East Road,...
- Page 30 ADB Airfield Solutions LLC Leuvensesteenweg 585 977 Gahanna Parkway Columbus, OH 43230 B-1930 Zaventem Belgium Phone: +32 (2) 722.17.11 Tel: +1 (614) 861 1304 info.adb@adb-air.com Fax: +1 (614) 864 2069 www.adb-air.com Web: www.adb-air.com Email: adb-sales.us@adb-air.com © ADB bvba All Rights Reserved www.adb-air.com...
