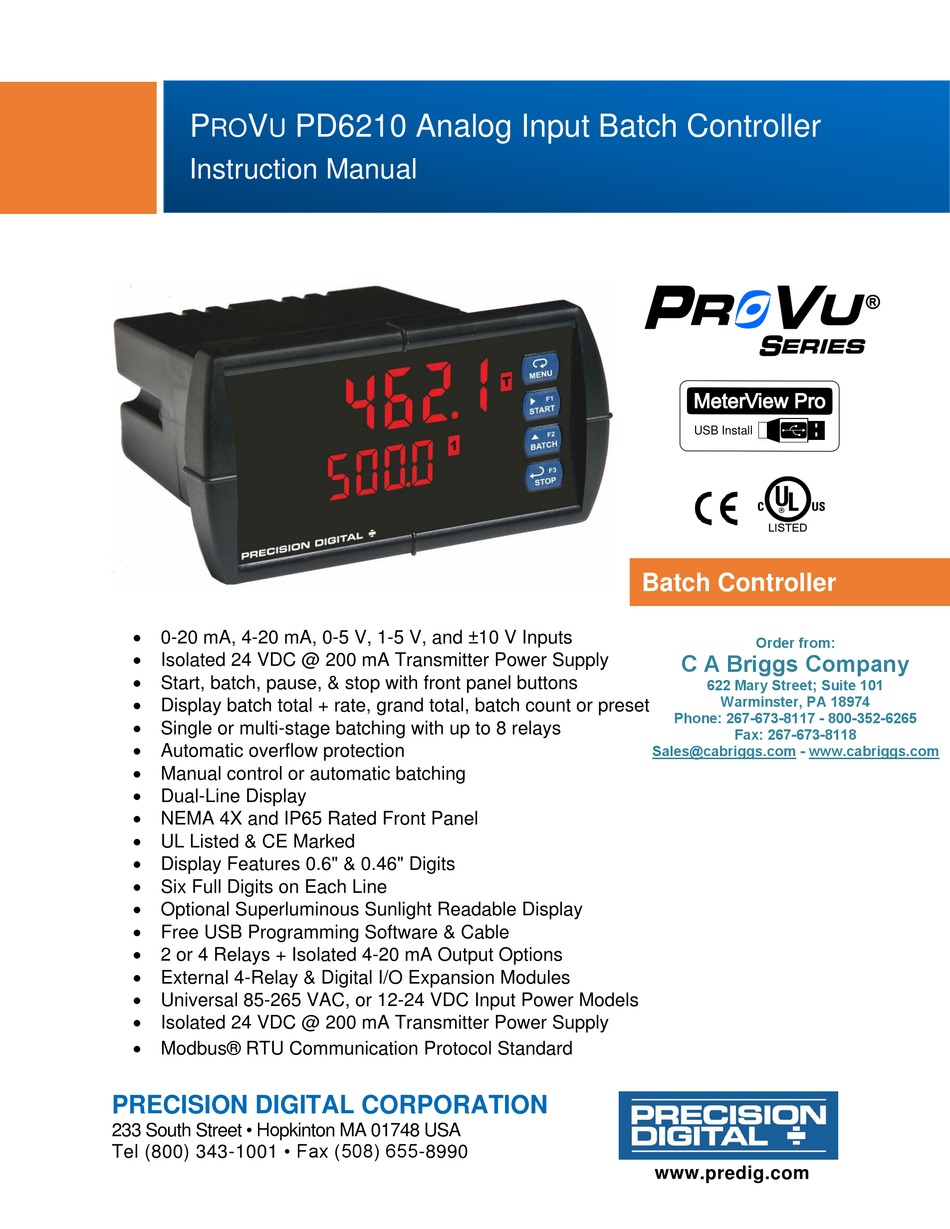

PRECISION DIGITAL PROVU PD6210 Instruction Manual

Analog input batch controller
Hide thumbs Also See for PROVU PD6210:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
P
V
RO
U
Instruction Manual
 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
 Isolated 24 VDC @ 200 mA Transmitter Power Supply
 Start, batch, pause, & stop with front panel buttons
 Display batch total + rate, grand total, batch count or preset
 Single or multi-stage batching with up to 8 relays
 Automatic overflow protection
 Manual control or automatic batching
 Dual-Line Display
 NEMA 4X and IP65 Rated Front Panel
 UL Listed & CE Marked
 Display Features 0.6" & 0.46" Digits
 Six Full Digits on Each Line
 Optional Superluminous Sunlight Readable Display
 Free USB Programming Software & Cable
 2 or 4 Relays + Isolated 4-20 mA Output Options
 External 4-Relay & Digital I/O Expansion Modules
 Universal 85-265 VAC, or 12-24 VDC Input Power Models
 Isolated 24 VDC @ 200 mA Transmitter Power Supply
 Modbus® RTU Communication Protocol Standard
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
PD6210 Analog Input Batch Controller
USB Install
Batch Controller
Order from:
C A Briggs Company
622 Mary Street; Suite 101
Warminster, PA 18974
Phone: 267-673-8117 - 800-352-6265
Fax: 267-673-8118
Sales@cabriggs.com - www.cabriggs.com
