To measure power
1 Clean and inspect all connectors.

2 On the meter, press
3 Make the connections shown in Figure 6.
 
4 On the meter, press
the source if necessary.
5 To see the power measurement for the next channel,

press CHANNEL.
When you measure the power from a network
interface card, the power level can change when
the data rate changes.
2 kHz flashes and you cannot save measurements if
the meter is connected to a MultiFiber Pro source
that is set to 2 kHz mode.
6 To save the measurements, make sure the meter has
done a scan through all 12 channels, then press
SAVE. The meter briefly shows the record number and
OK. The record number shown is for fiber number 12 in
the cable.
to make POWER show.
to select the wavelength of
Notes

How to Measure Optical Power
Fiber link
Measuring power at the
end of a link
Measuring the power

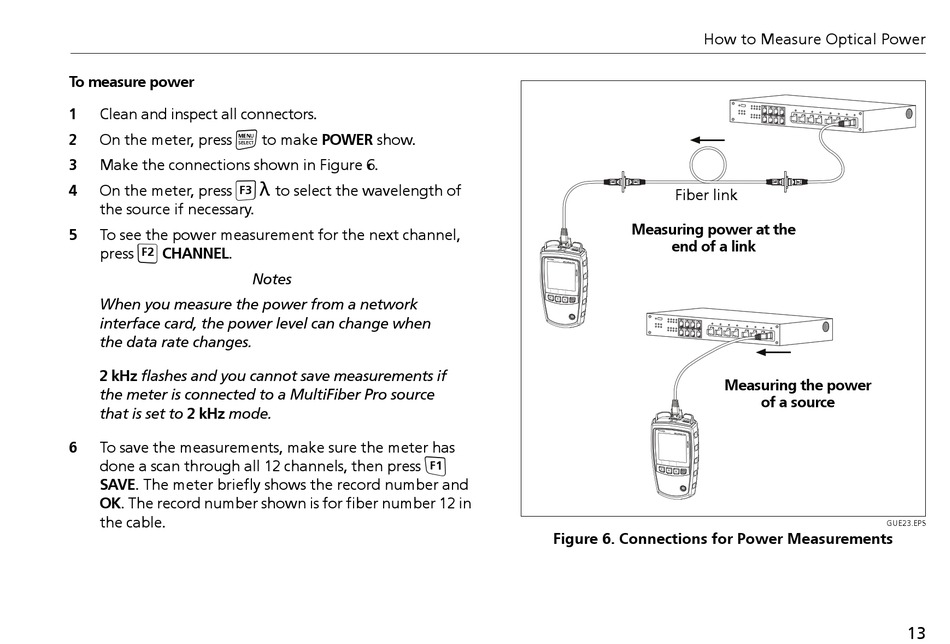

Figure 6. Connections for Power Measurements
of a source
