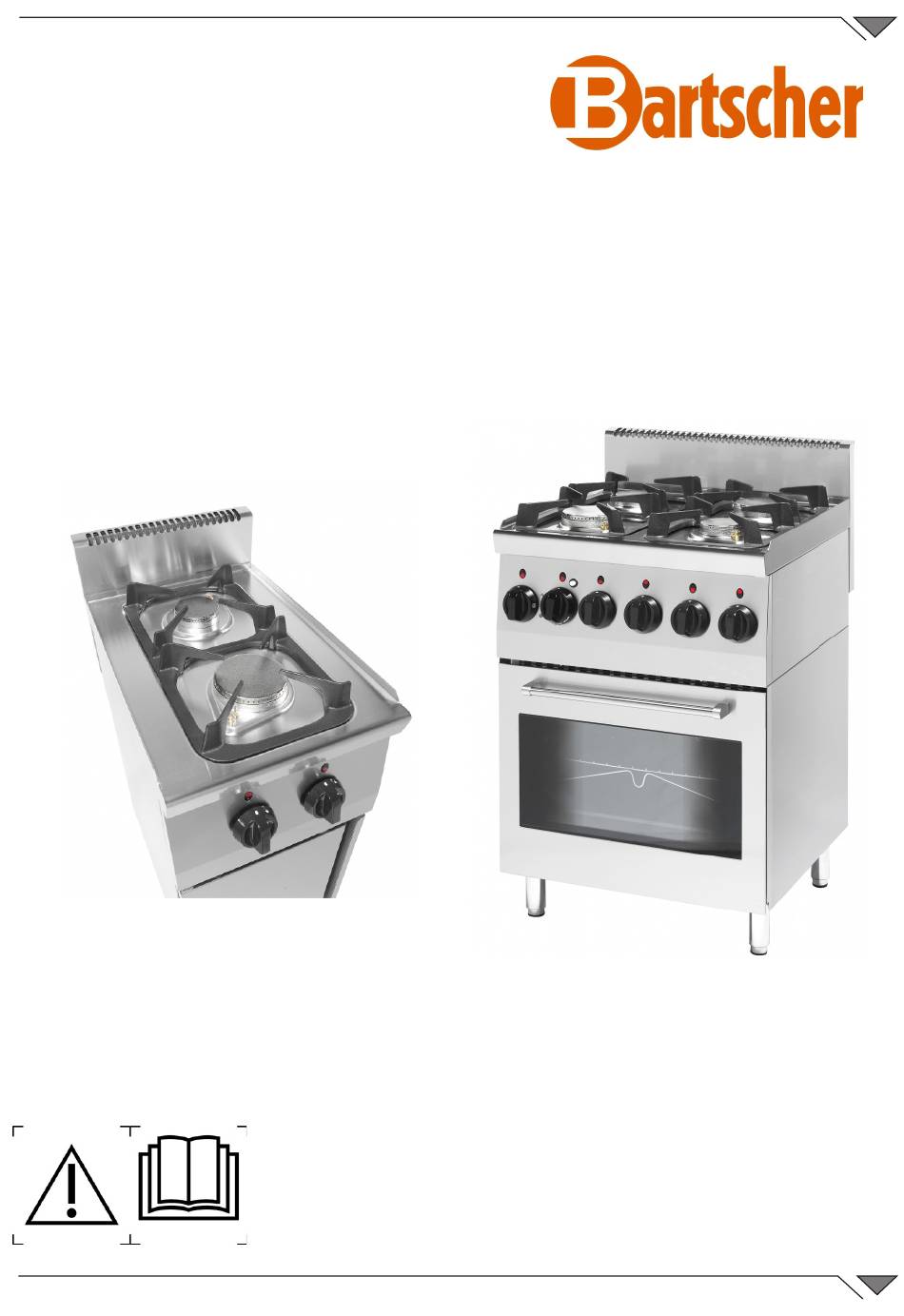

Gas cooker Gas stove with oven LPG4920...LPG6940...LPG694F...LPG694E... LPG696F... LPG4820D... LPG6840D 1317433 1315563 1317463 ENGLISH: Installation, use and maintenance manual 06/2016...
Contents 1. INSTALLATION 1.1 General and safety warnings ���������������������������������������������31 1.2 Positioning ������������������������������������������������������������������������35 1.3 Electric connection ������������������������������������������������������������36 1.4 Installation safety notes ����������������������������������������������������37 1.5 Smoke exhaust ������������������������������������������������������������������38 1.6 Connecting the gas (gas ovens only) ���������������������������������38 1.7 Connecting To A Different Type Of Gas ������������������������������40 2.
Page 3
Dear Customer, Thank you for purchasing one of our products� This oven is part of a series of electrical equipment designed for the food sector� Our ovens are easy to use, ergonomic and enable cooking control, while boasting a pleasant and modern design�...
1. INSTALLATION 1.1 General and safety warnings • Read this manual • As the packaging material thoroughly before is potentially dangerous, installation and use of it must be kept out of oven, as it provides the reach of children or important instructions animals and disposed of...
Page 5
permanence of staff not be placed in a suitably assigned to installation is ventilated room not permitted in the work prevent excessive area� accumulation of harmful substances in the air� • The appliance designed to cook foodstuffs • Children must indoor environments supervised to ensure they...
Page 6
• Interventions, tampering • Attention! case modifications damage to power cables, expressly authorised, it will not be possible to use the appliance, in this which do not respect that case the cable must be stated in this manual, will replaced by the service or make the warranty null by qualified personnel and void�...
Page 7
slippery� • The information plate provides important technical information: these essential interventions must requested maintenance or repairs of the appliance; therefore, it must not be removed, damaged or modified. • The version of the gas ovens conform to the Gas Directive 2009/142/EEC and have therefore been...
1.2 Positioning The appliances have been designed to be installed indoors� They cannot be used outdoors and cannot be exposed to atmospheric agents� The place designated for the installation of the oven must have a rigid, level and horizontal surface, which must be able to safely support the weight of the device/support assembly and the load at maximum capacity�...
Do not block the intake or heat dissipation openings and vents and place the appliance beneath an extractor hood whose system must be legally compliant� It is good practice to have the periodic maintenance of the ovens performed every year by an authorised technician and in compliance with the specific regulations.
The appliance must be included within an equipotential system whose efficiency is checked in compliance with the standards in force� For connection there is a clamp, located on the frame and marked with the symbol of Fig. 3� Fig.3 Electrical features Maximum Maximum Number of...
1.5 Smoke exhaust La macchina deve essere sempre installata sotto cappa aspirante� When the appliance is installed under the extraction hood, check that the following indications are respected: • the volume extracted must be higher than that of the flue gases generated (see current regulation);...
Page 12
Do not reduce the diameter of the section between the reducer and the appliance. Fit a gas filter above the pressure adjuster in order to ensure optimum operation� Control of the Nominal Heat Input: During initial installation and during maintenance or adaptation to another type of gas nominal heat input must be measured�...
Checking Gas Pressure: Gas supply pressure must be measured at the pressure point (Fig. 6) after the sealing screw has been removed� Fig. 6 Use a flexible pipe, connect a gauge to the pressure point (e�g� a liquid manometer with minimum resolution of 0�1 mbar) and measure the inlet pressure whilst the appliance is operating�...
Adjustment of the Minimum: Remove the knob and front panel� For adjustment of the minimum, it is necessary to intervene on the screw (Fig. 7 ref�1): by unscrewing, the flame increases and by re- Fig. 7 tightening the flame decreases. Foe LPG, turn the minimum flame fully home.
Oven Temperature Cooking Fig. 8 Ring knobs Knob Oven Selector Knob 2.2. Setting The burner cock command knobs have 4 positions for use (Fig. 8): Pilot Large flame Small flame Fig. 9 Turning on the burner pilot flame Press on the knob and turn it anti-clockwise to the “pilot” position (Fig. 9)� Hold the knob down and, at the same time, bring a match near the burner�...
3. USE OF THE ELECTRIC OVEN 3.1. First oven ignition First ignition must be performed with the empty oven� Set the thermostat to maximum by turning the selector to the multiple fan cooking symbol� Heat for approximately 60 minutes; during this operation, ventilate the room�...
3.3. Selector command knobs The electric oven has 2 selector command knobs: • the selector knob: it allows you to choose the heating type most suitable to the needs of cooking; • the thermostat knob: it allows you to select the desired temperature�...
3.6. Indicator lights Refer to Fig 8� The green one, on the top, indicates the mass of under ‘ device voltage, the second , orange bottom, indicates that the thermostat is in function between and switches on and off depending on whether the oven is in temperature or less�...
Page 19
If the burner should not remain ignited, hold the knob down for longer, thus allowing the safety valve to heat up� The oven door must remain open until the burner has ignited� To do this, check the presence of a flame through the said hole 1 (Fig. 12)� When the burner has ignited, close the oven door slowly to prevent the flame going out and take the knob to the desired temperature.
Page 20
OPERATION All cooking must be performed with the door closed� To remove food from the oven use protective gloves� Cooking containers used must be able to withstand temperatures higher than 250°C� Pay attention to condiments containing oils or fats, especially if deposited on the bottom of the oven as, if taken to high temperatures, they could ignite�...
Thermostat knob Used to power the oven and allow to select the desired temperature for cooking� INDICATOR LIGHTS The appliances have 2 indicator lights (Fig. 8)� The first, green at the top, indicates that the appliance is powered and live, the second, orange at the bottom, indicates that the thermostat is operating and it switches on and off according to the whether the oven is at temperature or not�...
Page 22
Technical characteristics GAS Power Model Power KW Weight Burners LPG4920 1x3�5kW-1�6kW LPG4920D 1x3�5kW-1�6kW LPG6940 2x3�5kW-2x6kW LPG6940D 2x3�5kW-2x6kW LPG694F 1�4 2x3�5kW-2x6kW-1x2�3kW LPG694E 2�2 2x3�5kW-2x6kW-1x2�2kW (EL) LPG696F 28.5 1�4 3x3�5kW-3x6kW-1x2�3kW Table 4 Nozzles Table G a s P r e s s u r e Nozzle Aerator opening Type...
5. MAINTENANCE and CLEANING Disconnect the appliance from the electric power supply before performing any cleaning or maintenance intervention� At the end of the working day, clean the appliance, both for reasons of hygiene and to prevent operating faults� The appliance must never be cleaned with direct or high pressure jets of water�...
Light characteristics Power supply 230V Power Connection type E 14 Heat resistance 300°C 5.3. Door cooling kit There is an additional protection device to lower the temperature of the oven door. This part must be fitted where the oven may be accessible to young children. Application of the device will be carried out by qualified personnel.
Before carrying out any dismantling operation, disconnect the mains plug from the wall socket. REPLACING THE POWER CORD The power cord must be in H05RR-F, of a section 3 3 x 1mm² (see data plate); it must be replaced as follows: •...
7. DISPOSAL OF THE APPLIANCE At the end of its life span, the appliance must be dispo- sed of in accordance with legal obligations� The symbol in Fig. 19 specifies that, at the end of its life span, the appliance must be disposed of according to the indications of the European Parliament Directive 2012/19/EU dated 04/06/2012�...
Page 27
THE MANUFACTURER SHALL NOT BE HELD LIABLE FOR ANY DAMAGES DUE TO IMPROPER INSTALLATION, TAMPERING WITH THE APPLIANCE, MISUSE, IMPROPER MAINTENANCE, FAILURE TO COMPLY WITH APPLICABLE STANDARDS AND INTENDED USE� THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES TO THE PRODUCT AT ANY TIME IT DEEMS NECESSARY OR USEFUL�...
