Insertion and installation of the board

3.3 Driver installation

Information on how to select and download the appropriate driver can be found in the document
"Quick installation PC boards" (see PDF link).
The installation of drivers of the type "ADDI-DATA Multiarchitecture Device Drivers 32-/64-Bit for
x86/AMD64" as well as the installation of the corresponding samples is described in the installation
instructions (see PDF link).
www.addi-data.com

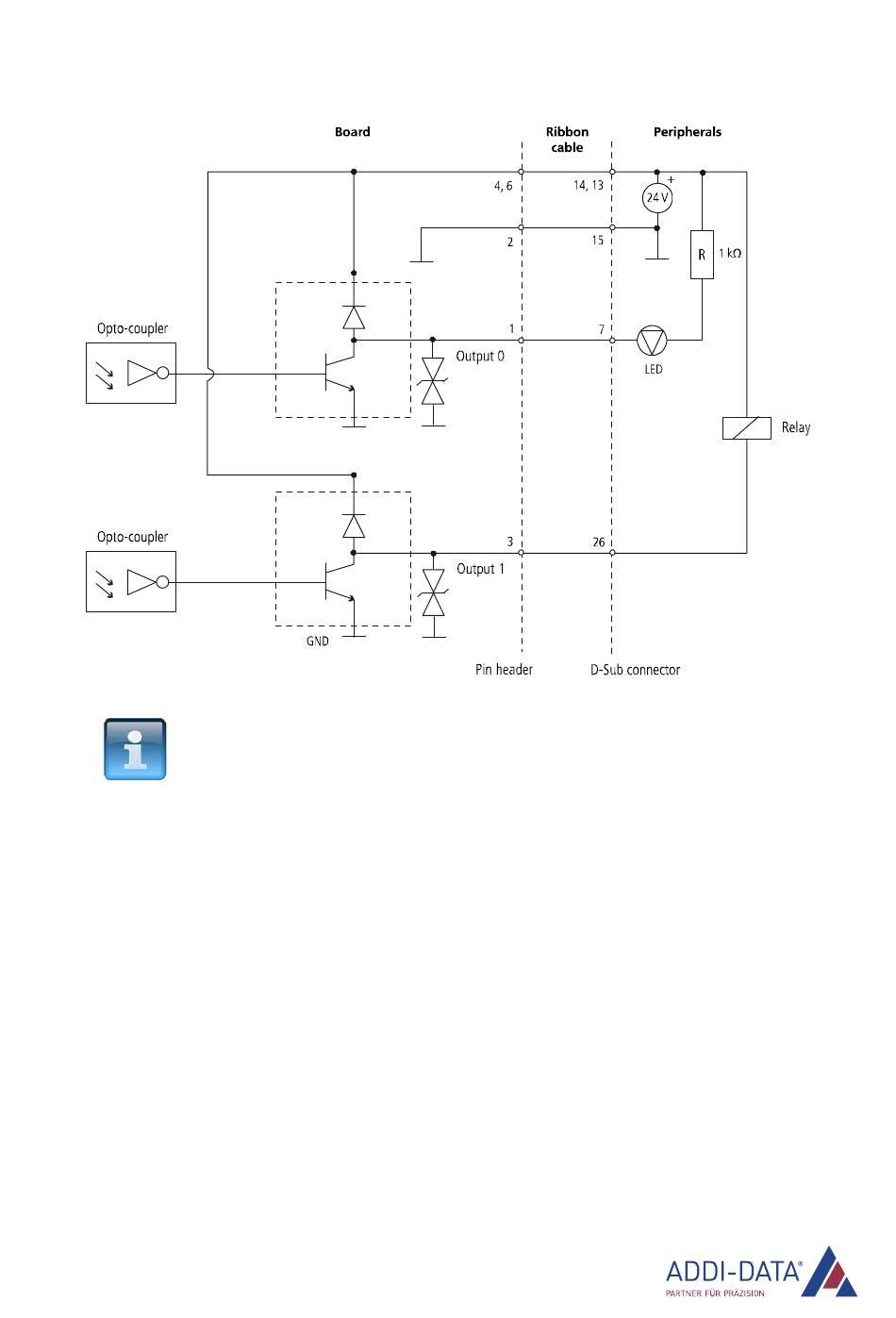

Fig. 3-13: Connection example (digital outputs)

NOTICE!
Please note that an external voltage source is required for the
digital outputs (see Chapter 7.5.3).
18
APCI-3003
