Insertion and installation of the board

3.2 Connecting the accessories

3.2.1 Connection of the screw terminal panels

The APCI-3003 board receives analog signals from the peripherals via the screw terminal panel
PX901-AG und the cable ST3003-A, which needs to be connected to the 15-pin D-Sub male connector
of the board.
Between the board and the peripherals, digital signals are exchanged via the screw terminal panel
PX901-ZG and the cable ST3003-D, which needs to be connected to the 15-pin D-Sub female
connector of the board.
In terms of electromagnetic compatibility (EMC), the cables have the following properties:
•
Metallised connector housing
•
Shielded cable
•
Cable shield folded back over insulation and firmly screwed on both sides to the connector
housing.

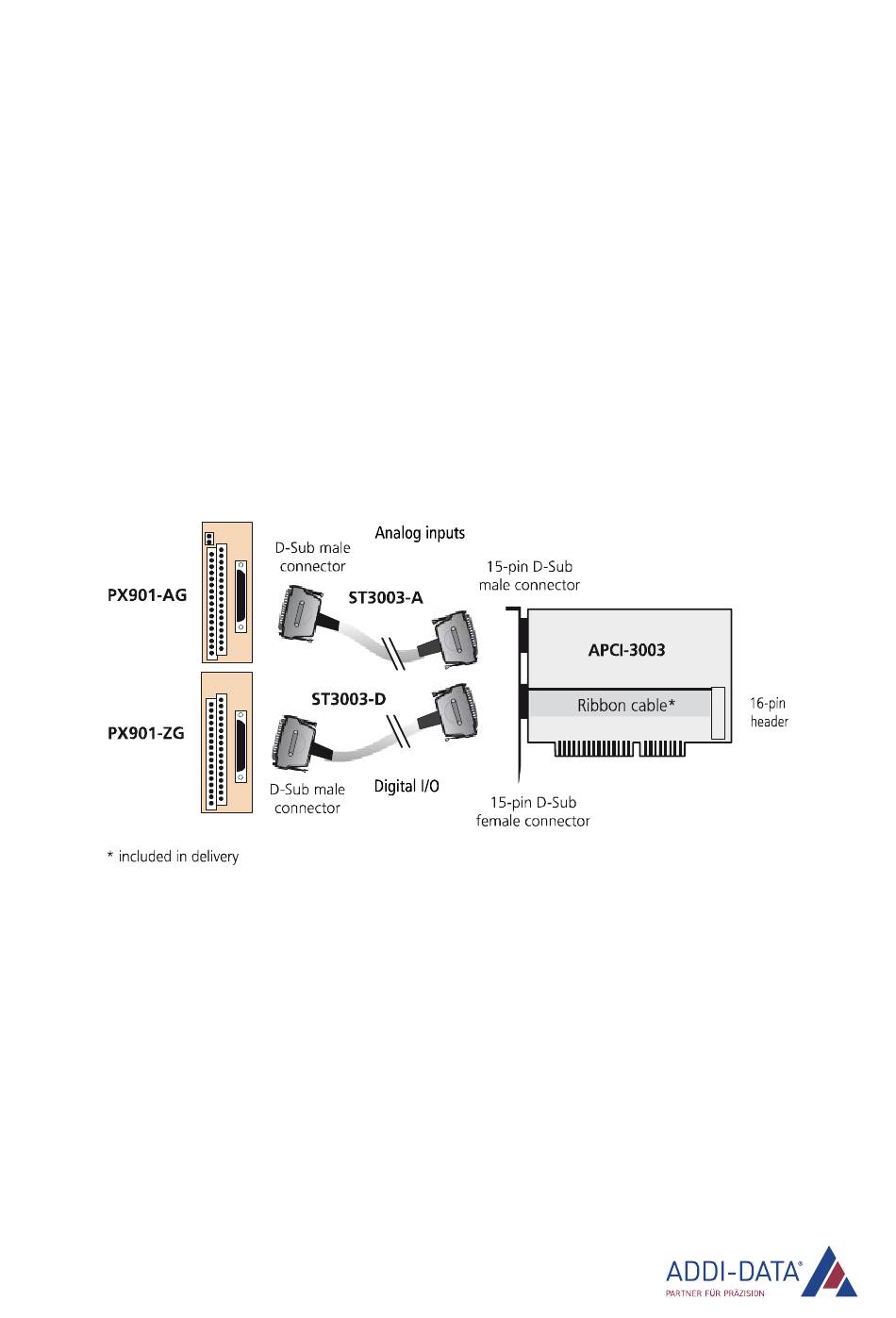

Fig. 3-4: APCI-3003: Connection of the screw terminal panels
