3.2.3 Connection principle

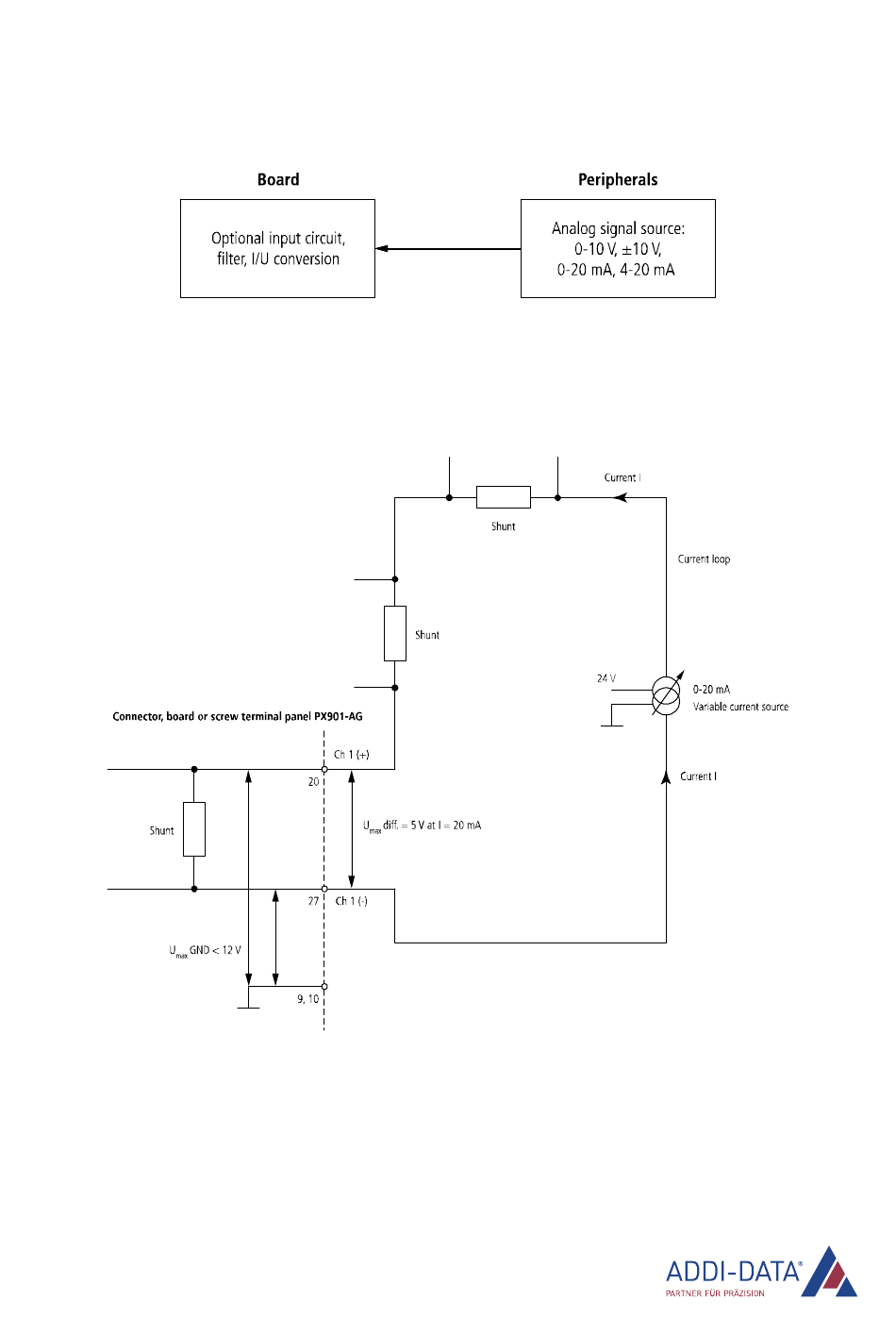

Fig. 3-9: Connection principle

With the PC-Diff option (see Chapter 7.4), the board has to be placed at the end of the current loop so
that the voltage (U
GND) at the differential input pin is 12 V max. relating to GND.
max

Fig. 3-10: Current loop for PC-Diff option
