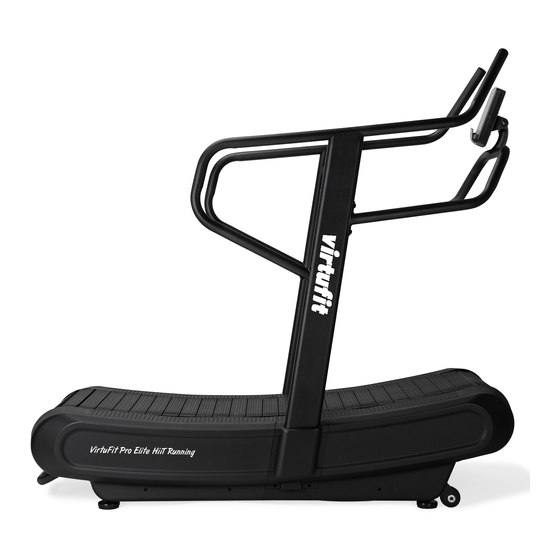

- Page 1 Pro Elite Hii T Running Treadmill ser manual...
- Page 2 INDEX 3 - 4 SAFETY INSTRUCTIONS 5 - 6 CHECKLIST 7 - 12 ASSEMBLY INSTRUCTIONS MAINTENANCE TROUBLE SHOOTING 15 - 23 CONTROL PANEL EXPLODED DRAWING 25 - 26 PARTS LIST TRAINING INSTRUCTIONS VirtuFit Pro Elite Hii T Running Treadmill...
-
Page 3: Safety Instructions
– Ensure there are no children nearby when you are exercising on the device. In addition, the device should be showed in a place that children or house pets cannot reach. – Ensure that only one person at a time uses the fitness device. VirtuFit Pro Elite Hii T Running Treadmill... - Page 4 Maintenance assembly and repair work not carried out by an official dealer. • In the event of improper use, neglect and / or poor maintenance. • Failure to maintain the fitness equipment in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit Pro Elite Hii T Running Treadmill...
- Page 5 When you open the carton, and you will find the below parts in the carton: Main body Console frame Upright post Hand rail left + right Upright post cover Console Plastic cover Running belt Aluminium slat xing belt Front roller Rear roller VirtuFit Pro Elite Hii T Running Treadmill...
- Page 6 Allen head C.K.S full thread bolt M8*15 Phillip head C.K.S. self- tapping screw ST4*16 Curve washer Φ 8.5*R25*t2.0 Hexagon socket head full thread bolt M8*45 T-shape wrench 6*80 Cross open wrench 14*17*75 L-shape wrench 6*35*80 VirtuFit Pro Elite Hii T Running Treadmill...
- Page 7 In this way you prevent the head of the socket head screw from being rotated. STEP 1 • Take out the console frame and console from the carton, connect the connect cable, then fix them with 4 pcs of M5X10 screws. VirtuFit Pro Elite Hii T Running Treadmill...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 2 • Take out the main body from the carton. VirtuFit Pro Elite Hii T Running Treadmill...
- Page 9 4 pcs M8×55×20 screws. • Same assembly step on the left side upright post. No need to connect wires. VirtuFit Pro Elite Hii T Running Treadmill...
- Page 10 Attached the right hand rail to the right upright post, then fix the upper holes with 2 pcs M8*45 screws. • Fix the bottom hole with 1 pcs M8*15 screw, then fasten all the screws. • Same assembling step on the left side. VirtuFit Pro Elite Hii T Running Treadmill...
- Page 11 ASSEMBLY INSTRUCTIONS STEP 5 • Connect the wires from right side upright post and console frame, then fix them with 4 pcs M8*25 screws. VirtuFit Pro Elite Hii T Running Treadmill...
- Page 12 ASSEMBLY INSTRUCTIONS STEP 6 • Fix the upright post cover with 4 pcs ST4*15 screws. • Attach the bottle cage on the left side with 2 screws (see image). VirtuFit Pro Elite Hii T Running Treadmill...
-
Page 13: Maintenance
CHANGING THE BATTERIES 1. If you see an improper display on the monitor, please replace the batteries to have a good result. 2. Please use 2pcs of 1.5v AA batteries as a power supply. VirtuFit Pro Elite Hii T Running Treadmill... -
Page 14: Troubleshooting
If the display does not show any values, you can try to check the sensor cables and the cables in the back of the display. If this still does not work, you can move the sensor slightly. VirtuFit Pro Elite Hii T Running Treadmill... -
Page 15: Control Panel
Fast acces to Target Distance training mode. CALORIES Fast acces to Target Calories training mode. HEART Fast acces to Target Heart Rate training mode. RATE TIME Fast acces to Target Time training mode. VirtuFit Pro Elite Hii T Running Treadmill... - Page 16 Display currunt training speed. PACE Set the time to reach the target distance. Display LOAD resistance value for each level in WATT window when adjust LOAD LOAD resistance. Display range L1 ~ L4. VirtuFit Pro Elite Hii T Running Treadmill...
-
Page 17: Operation
0.25s, LCD display MAX ICON, WATTS,SPEED ,PULSE,also after keep shows 7s with buzzer sound 0.25s, LCD display AVE ICON WATTS , SPEED ,PACE, after keep shows 7s without display any data at the moment, then re-show the data two times and enter into stand by mode (FIG 5). VirtuFit Pro Elite Hii T Running Treadmill... -
Page 18: Quick Start
FIG 6 INTERVAL10/20 1. Press” INTERVAL10/20” button ,enter to this mode , LCD display , with buzzer beeps 0.5s. 2. If did not input in 30s when setting, computer will back to standby mode. VirtuFit Pro Elite Hii T Running Treadmill... - Page 19 8 times). Buzzer rings 0.5s enter to stop mode (the average value of the sports results is only calculated within the Work time). 6. When the last REST is reached ,this mode is stop directly. 7. If no single input in 5Min, buzzer rings 0.5s enter into stand by mode. VirtuFit Pro Elite Hii T Running Treadmill...
- Page 20 11. Press the “STOP” button to sound the buzzer for 0.5 seconds and enter into the stop mode. 12. If the result of movement is displayed, press “STOP” button to leave and return to standby mode. VirtuFit Pro Elite Hii T Running Treadmill...
- Page 21 3. After setting, press ”ENTER” confirmed, TARGET & CALORIE ICON continue to flashing, meanwhile start to count down form the setting value. 4. Press the “START “button once, enter into the break mode, and press “START” to continue running. VirtuFit Pro Elite Hii T Running Treadmill...
-
Page 22: Target Distance
1. Press ” TARGET HEART RATE ” button, enter to this mode, LCD flashing display Age ICON with presetting value 30 or the last setting value.P ress “UP - DOWN ”button to setting (setting range 11~99 ), it is non recyclable. VirtuFit Pro Elite Hii T Running Treadmill... - Page 23 13. If did not complete the setting in 30 s , the buzzer rings for 0.5 s and back t o standby mode. 14. If the result of movement is displayed, press “STOP ” button to leave and return to standby mode. SET AGE PULSE START < TARGET 10% > TARGET 10% VirtuFit Pro Elite Hii T Running Treadmill...
-
Page 24: Exploded Drawing
EXPLODED DRAWING VirtuFit Pro Elite Hii T Running Treadmill... -
Page 25: Parts List
VR 3 pin connected wire L-950mm Wheel and axle 3 pin connected wire L-500mm Driving pulley wheel - front 2 pin plug bottom section connected wire L-1000mm Driving wheel axle Driving wheel plate - Aluminum Resistor VR VirtuFit Pro Elite Hii T Running Treadmill... - Page 26 Phillip head C.K.S. full thread bolt M5*10 End cover t1.2*φ31 Hexagon lock nylon nut M6 Hexagon socket head full thread bolt M8*75 Flat washer φ6 Spring washer φ6 Allen head C.K.S. half thread bolt M8*30*20 VirtuFit Pro Elite Hii T Running Treadmill...
-
Page 27: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Pro Elite Hii T Running Treadmill... - Page 28 For questions or missing parts please contact your dealer.
