Summary of Contents for Caple C876I

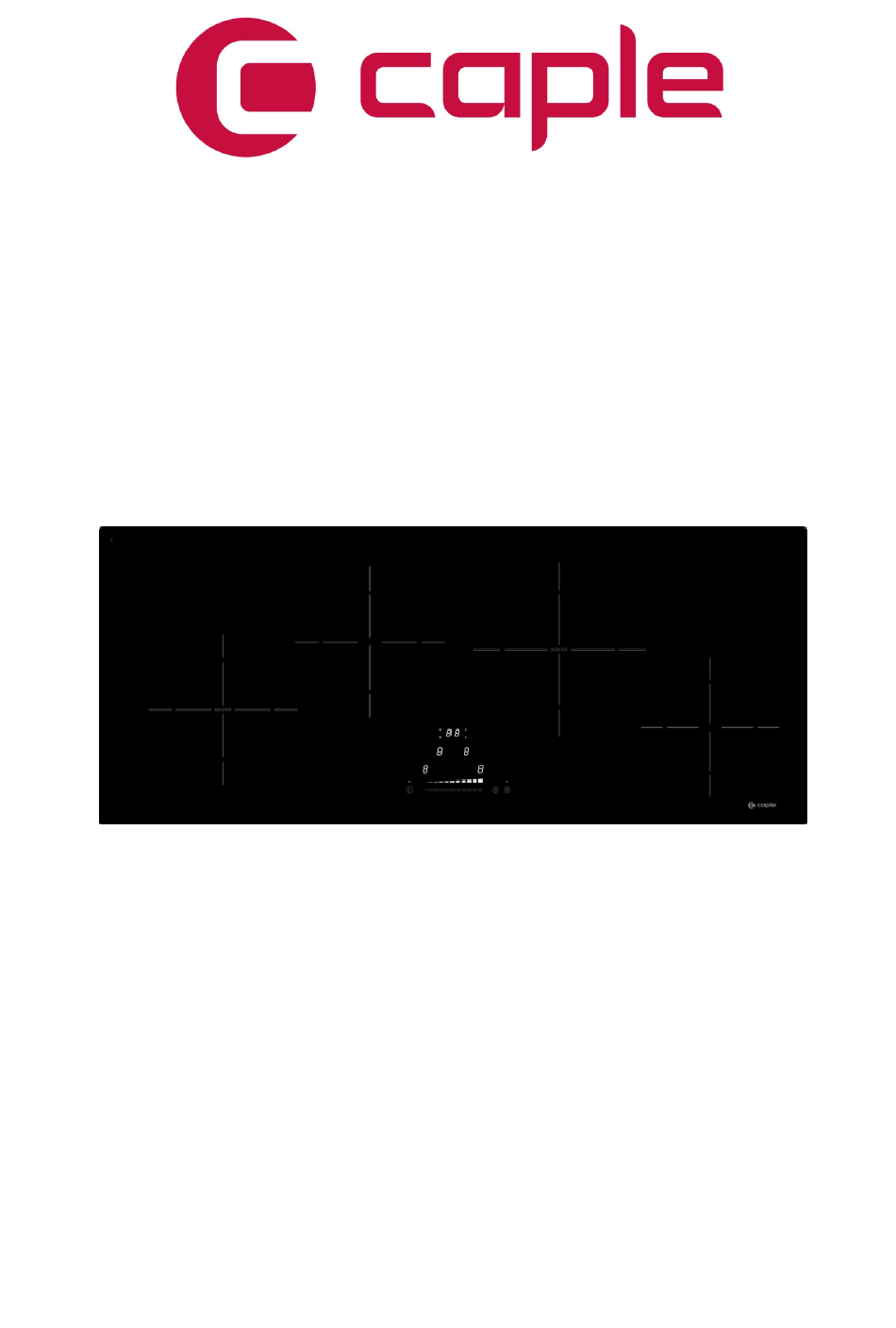

- Page 1 C876I Caple Sense Induction Hob Ribbon Technical Manual...
- Page 2 C876I Caple Sense Induction Hob Ribbon...
- Page 3 C876I Caple Sense Induction Hob Ribbon Part Number Description A24658/0 GLASS AECO1000 INDUCTOR 160P/160 IPS INDUCTOR 200P/160 NIPS AECO1001 CABLE 4 WIRES FOR INDUCTOR A11070/0 ATC1041 TOUCH CONRTOL PCB POWER CORD A15386/0 CONNECTION BOX A10712/0 GASKET FOR WORKTOP A10153/0...
- Page 4 C876I Service Manual 1. To detect the wrong breakdowns : 1-1 Connection to the electric network: Control the tightening of the screws of the connection box Control the section of the cables used (see manual of use) Control if the earth wire (green/yellow) is connected...
- Page 5 1-2 Installation: Control the installation of the gasket under the glass. If the glass is glued with silicone leave the glass in place and dismount the steel case under the work plan. Control the ventilation of the air coming in of the ventilators (minimum 2 cm of space).
- Page 6 To determine the breakdown according to the indications of the control panel. Display Designation Description zero the heating zone is activated 1…9 level of power selection of the cooking level pan detection no pan or inadequate pan Error message electronic failure residual heat heating zone is hot locking...
- Page 7 2-2 Locking « L » To lock the hob: Press the key [0/I] (On/Off). Press at once simultaneously the key “P” and the display of the front right cooking zone for 4 zones hobs and rear right cooking zone for 3 zones hobs. Then press the key of the cooking zone again.
-
Page 8: Error Code
ERROR CODE Legend: Visual Control TC = Touch Control panel Cable LIN = White Cable 0.25 mm (ex : connection between TC and Filter Board PCB). No appropriated measure IHE = Induction Heating Element Measure with multimetre Error Code Description Potential Failure Measure What to do…... - Page 9 Error Code Description Potential Failure Measure What to do… Temperature sensor indicates overheat of induction coil A cool down is necessary Error is Cooking zone has overheated disappearing when cooling down IHE over temperature (maybe pot boiled without Wrong algorithm calculated food...) Replace IHE with sensor if E2 reappears over-temperature at coil...
- Page 10 Error Code Description Potential Failure Measure What to do… Frequency problem Check the frequency and voltage Network failure Overvoltage Replace the IHE Compatibility problems Unknown error Replace IHE or TC between IHE and TC Fan or control electronics Fan failure Replace IHE defect Temperature probe PT 1000 is...
- Page 11 Error Code Description Potential Failure Measure What to do… As soon as the hob is installed, please check if it works properly. If you cannot turn on the appliance, please double check the electrical connections on both sides of the power cord. A wrong connection that lasts more than 30 Defect mains connection minutes will cause permanent damage that...
- Page 12 Error Code Description Potential Failure Measure What to do… Key evaluation defect, Touch Control switches off after Short circuit or interruption Er22 Replace TC 3,5- around key evaluation 7,5s. Er 03 + continuously Continuous key activation, Liquid or cookware on glass “sound”...
-
Page 13: Configuration Procedure
CONFIGURATION PROCEDURE What to do when the symbol [ E 4 ] appears : I) The hob must be reconfigured according to the following procedure : Before you start the procedure : Make sure that there is no more pot on the hob. Use a pan adapted to induction. -
Page 14: Wiring Diagram
WIRING DIAGRAM Heating zone Heating zone Heating zone Heating zone Middle Right Left Middle Left Right X1.4 X1.4 X2.1 Touch Control Touch Control...
