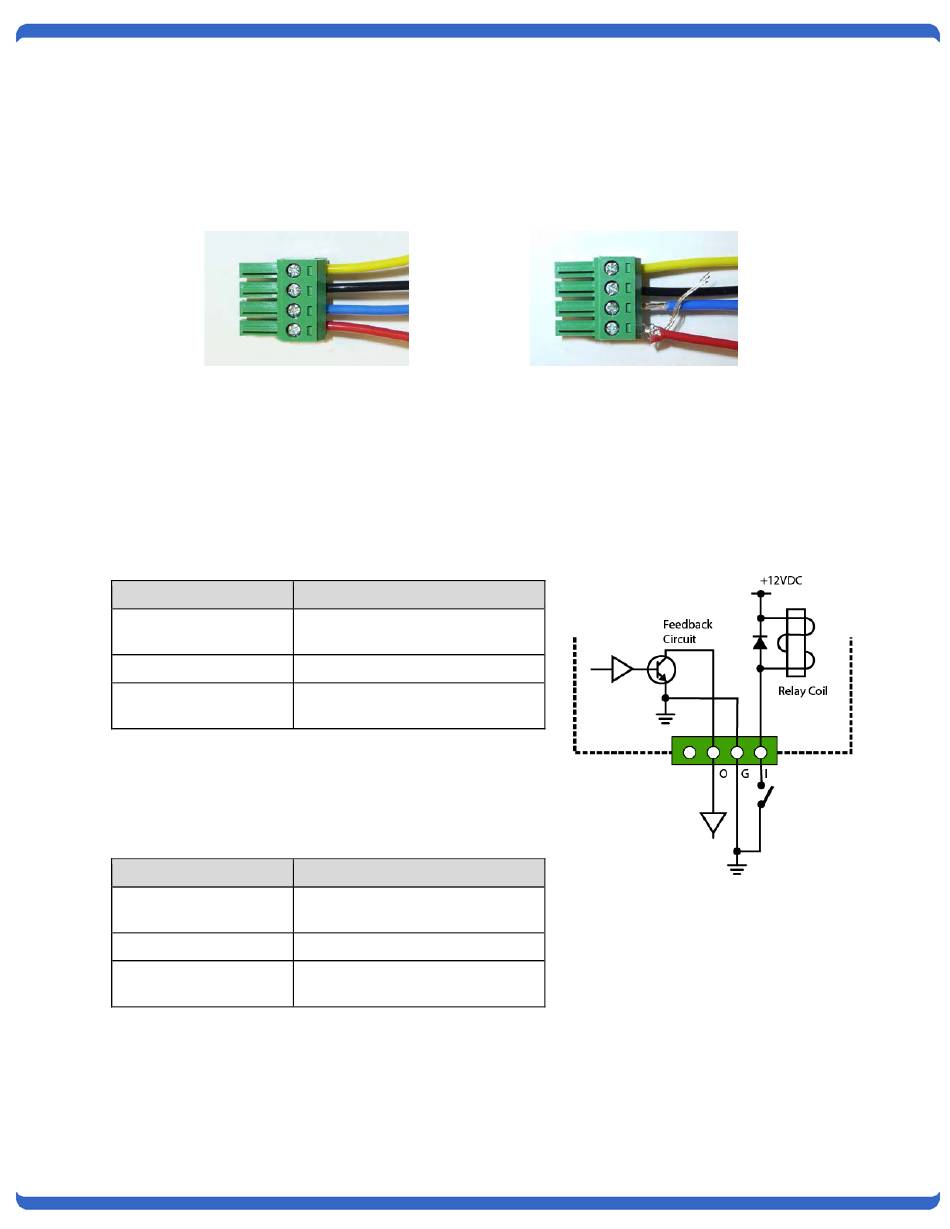

2.2.
Inputs and Outputs
The screw terminal blocks are on removable connectors for easy cable fabrication.
diagram and table co-responding to the proper model.
Make sure screw terminals are tightened securely and that there are no loose strands of cable, or excessive
stripped wires.
2.3.
Model iBoot-IO 1410037
Default Power ON
Dry Contact Control
iBoot-IO
O
Feedback Output
G
Ground
I
Control Input
2.4.
Model iBoot-IO-OFF 1410039
Default Power OFF
Dry Contact Control
iBoot-IO-OFF
O Feedback Output
G Ground
I
Control Input
2.5.
Dry Contact Versions - Specifications
Input Relay Coil Sensitivity:
Output Transistor Rating:
V181217N
Proper Screw Terminal
Connections
Function
High(Open) = Power OFF
Low (Ground) = Power ON
Common Ground
Open = Power ON
Ground= Power OFF
Function
High(Open) = Power OFF,
Low (Ground) = Power ON
Common Ground
Open = Power OFF
Ground= Power ON
44mA @ 12 VDC
100 mA 30 VDC Max.
iBoot-IO
Follow the correct
Poor Screw Terminal
Connections.
Note Loose Wires and
Excessive Stripping
Wiring Diagram for Dry Contact Versions
iBoot-IO and iBoot-IO-OFF
Page 2
