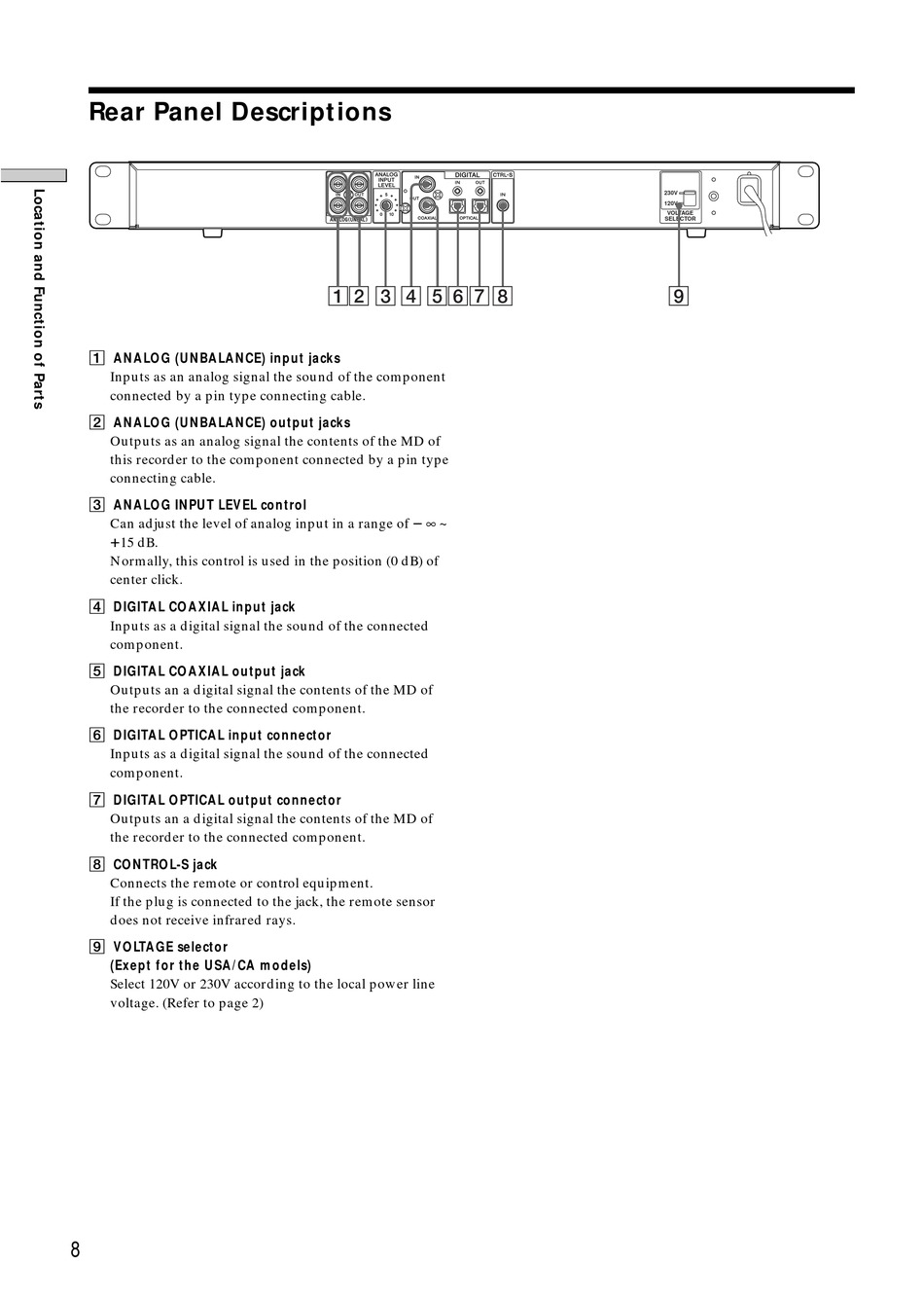

Rear Panel Descriptions

1 ANALOG (UNBALANCE) input jacks
Inputs as an analog signal the sound of the component
connected by a pin type connecting cable.
2 ANALOG (UNBALANCE) output jacks
Outputs as an analog signal the contents of the MD of
this recorder to the component connected by a pin type
connecting cable.
3 ANALOG INPUT LEVEL control
Can adjust the level of analog input in a range of _
+15 dB.
Normally, this control is used in the position (0 dB) of
center click.
4 DIGITAL COAXIAL input jack
Inputs as a digital signal the sound of the connected
component.
5 DIGITAL COAXIAL output jack
Outputs an a digital signal the contents of the MD of
the recorder to the connected component.
6 DIGITAL OPTICAL input connector
Inputs as a digital signal the sound of the connected
component.
7 DIGITAL OPTICAL output connector
Outputs an a digital signal the contents of the MD of
the recorder to the connected component.
8 CONTROL-S jack
Connects the remote or control equipment.
If the plug is connected to the jack, the remote sensor
does not receive infrared rays.
9 VOLTAGE selector
(Exept for the USA/CA models)
Select 120V or 230V according to the local power line
voltage. (Refer to page 2)
