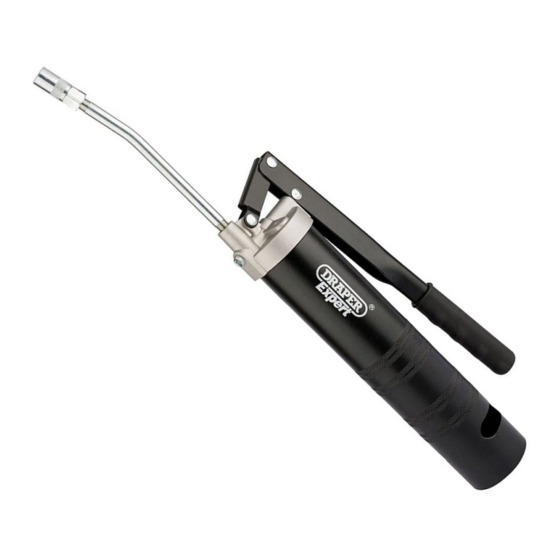

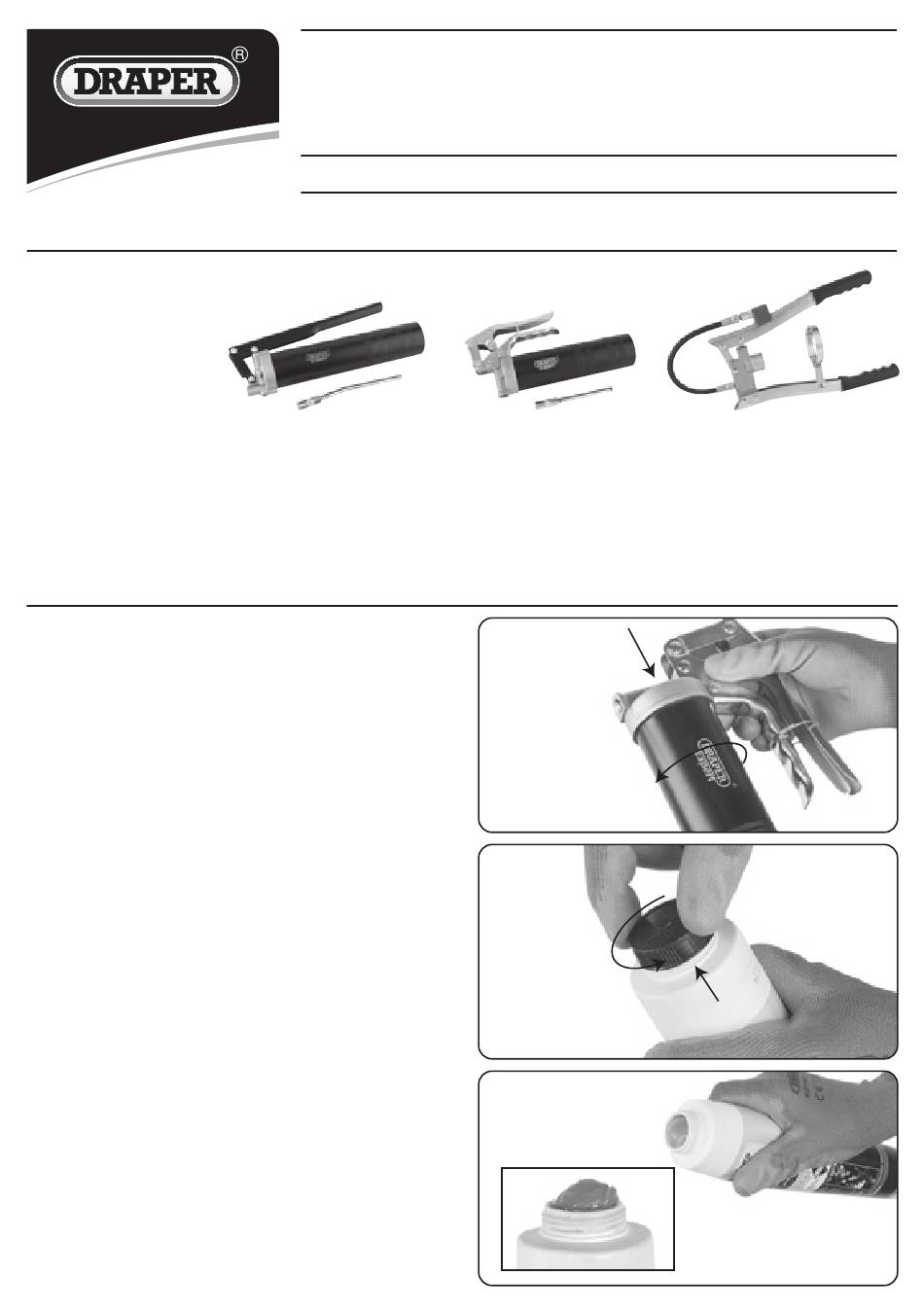

Draper A10/EXP/F Instructions

1.

TECHNICAL DESCRIPTION

Stock No..............................................16159 .............................................16160 ............................................. 16157
Part No. ........................................... A9/EXP/LS .......................................A8/EXP/LS.......................................A10/EXP/F
Pressure......................................10,000psi/690bar ............................5,000psi/345bar .............................7,500psi/517bar
Output ........................................ 0.5g per stroke.............................. 0.5g per stroke.............................. 0.8g per stroke
Cartridge type .......................400gm x large thread .................... 400g x large thread.................. 500 or 600g small thread
2.

ASSEMBLY

Unscrew barrel from pump head anti-clockwise (note no
barrel on Draper Stock No.16157).
Remove screw-cap from grease cartridge.
Push base of grease cartridge until grease is protruding
approx. 6mm out of the cartridge.
This is required to prevent air entering the pump unit.
Manual for
Screw-on Grease Guns
Stock Nos.16157, 16159, 16160
INSTRUCTIONS
Part Nos.A10/EXP/F , A9/EXP/LS, A8/EXP/LS
