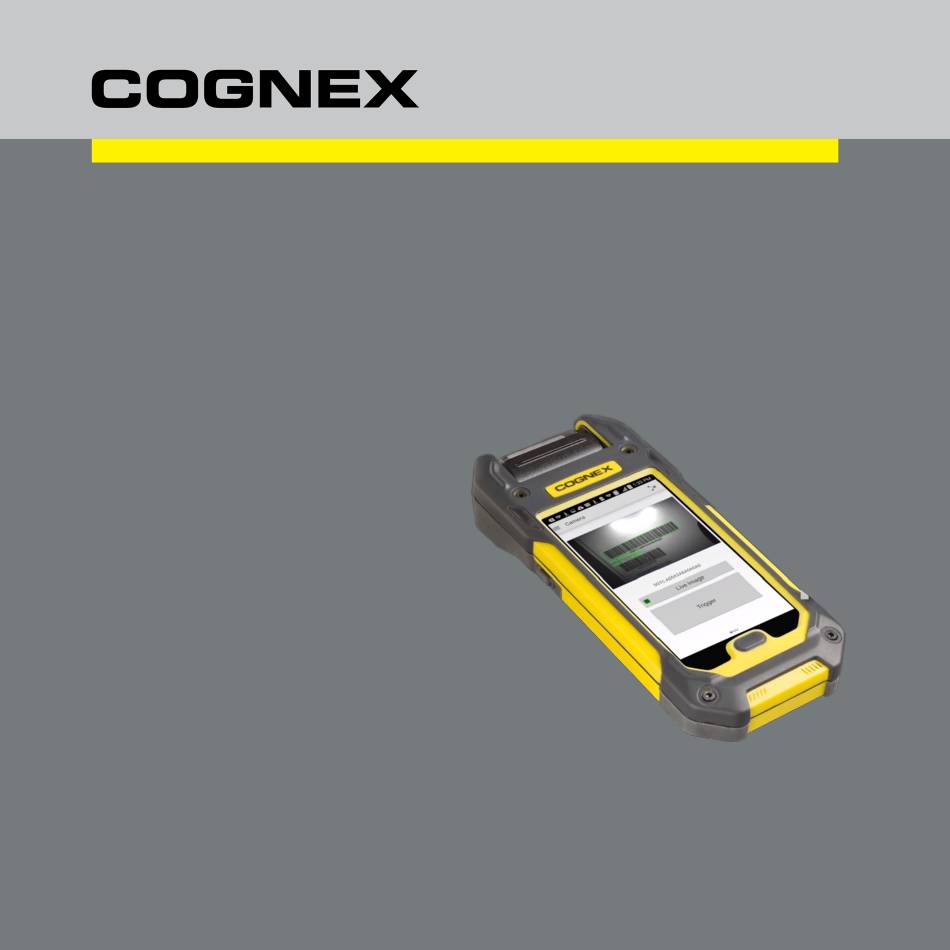

MX-1000
Quick Reference Guide
09/08/2017
Version:5.7.1.51

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Cognex MX-1000

Summary of Contents for Cognex MX-1000

  • Page 1 MX-1000 Quick Reference Guide 09/08/2017 Version:5.7.1.51...
  • Page 2 Precautions Observe these precautions when installing the Cognex product, to reduce the risk of injury or equipment damage: To reduce the risk of damage or malfunction due to over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply, route all cables and wires away from high-voltage power sources.
  • Page 3 MX-1000 Layout Scanner head (rotatable by 45°) Indicator LEDs Side trigger buttons Power button Touch screen Home button Speaker vents Recessed area for mobile camera Slider to lock battery cover Battery cover Lanyard hook End cap of pistol grip* Trigger button on the pistol grip*...
  • Page 4 MX-1000 Accessories Battery for reader (DMA-MTBATTERY-01) Battery for pistol grip accessory (3070 mAh, DMA-HHBATTERY-01) Pistol grip (DMA-GRIP-01) Note: The grip features its own trigger button and an additional battery which can be charged via the charging station. Belt holster (DMA-HOLSTER-01, and DMA-HOLSTER-02)
  • Page 5 USB Type-C battery charger kits: DMA-MXUSB-01: USB Type-C Battery Cover (DMA-MXUSB-00) + USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER) DMA-MXUSB-02: USB Type-C Battery Cover (DMA-MXUSB-00) + Handstrap (DMA-MXSTRAP-00) DMA-MXUSB-03: USB Type-C Battery Cover (DMA-MXUSB-00) + USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER) + Handstrap (DMA-MXSTRAP-00) Passive car holder (DMA-VMHOLDER-00) Note: Using or storing the device outside of the recommended...

  • Page 6: Dimensional Drawings

    Dimensional Drawings...

  • Page 7: Field Of View And Reading Distances

    Field of View and Reading Distances Note: Due to tolerances, ranges can vary by +/- 5 mm for small codes to +/- a couple of centimeters for large codes.

  • Page 8: Assembling The Reader

    Assembling the Reader Note: For details, see the MX-1000 Reference Manual. For a list of supported mobile devices, please contact Cognex.

  • Page 9: Installation

    Install Software and Documentation and Connect the Reader To configure an MX-1000 reader, the DataMan Setup Tool software must be installed on a networked PC. The DataMan Setup Tool is available from the DataMan support site: http://www.cognex.com/support/dataman.

  • Page 10: Imager Specifications

    MX-1000 Specifications 510 g (675 g with pistol grip) Weight Charging Temperature 0ºC — +35ºC (+32ºF — +95ºF) Operating Temperature 0ºC — +40ºC (+32ºF — +104ºF) - 40 ºC — +60ºC ( -40 ºF — +140ºF) Storage Temperature Maximum Humidity <...

  • Page 11: Charging Station Specifications

    Charging Station Specifications Weight 380 g Operating Temperature 0ºC — +40ºC (+32ºF — +104ºF) Storage Temperature -40ºC — +60ºC (-40ºF — +140ºF) Maximum Humidity 95% (non-condensing) Power Supply Requirements 24 V, 13 W maximum LPS or NEC Class 2 power supply...

  • Page 12: Compliance Statements

    Compliance Statements The MX-1000 has Regulatory Model 1AA7 and meets or exceeds the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Please read these guidelines carefully before using your device.
  • Page 13 A est conforme à la norme NMB-003 du Canada. For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).

  • Page 14: Compliance Statements: Mx-1000 Charging Station

    Compliance Statements: MX-1000 Charging Station The MX-1000 Charging Station has Regulatory Model 1ABA and meets or exceeds the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow.
  • Page 15 KN24 Registration number: MSIP-REM-CGX-DMA-MT-BASE For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 16 Changes or modifications made to this equipment not expressly approved by Cognex may void the FCC authorization to operate this equipment. Canadian Compliance This Class A digital apparatus complies with Canadian ICES-003. Cet appareil...

  • Page 17: China Rohs

    China RoHS Hazardous Substances 有 害 物 质 Part Name Lead (Pb) Mercury Cadmium Hexavalent Polybrominated Polybrominated 部 件 名 称 铅 (Hg) (Cd) Chromium biphenyls (PBB) diphenyl ethers 汞 镉 多 溴 联 苯 (Cr (VI)) (PBDE) 六 价 铬 多...
  • Page 18 Copyright © 2017 Cognex Corporation. All Rights Reserved.
