MX-1100
Quick Reference Guide
2021 June 14
Revision: 6.3.0.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cognex MX-1100

Summary of Contents for Cognex MX-1100

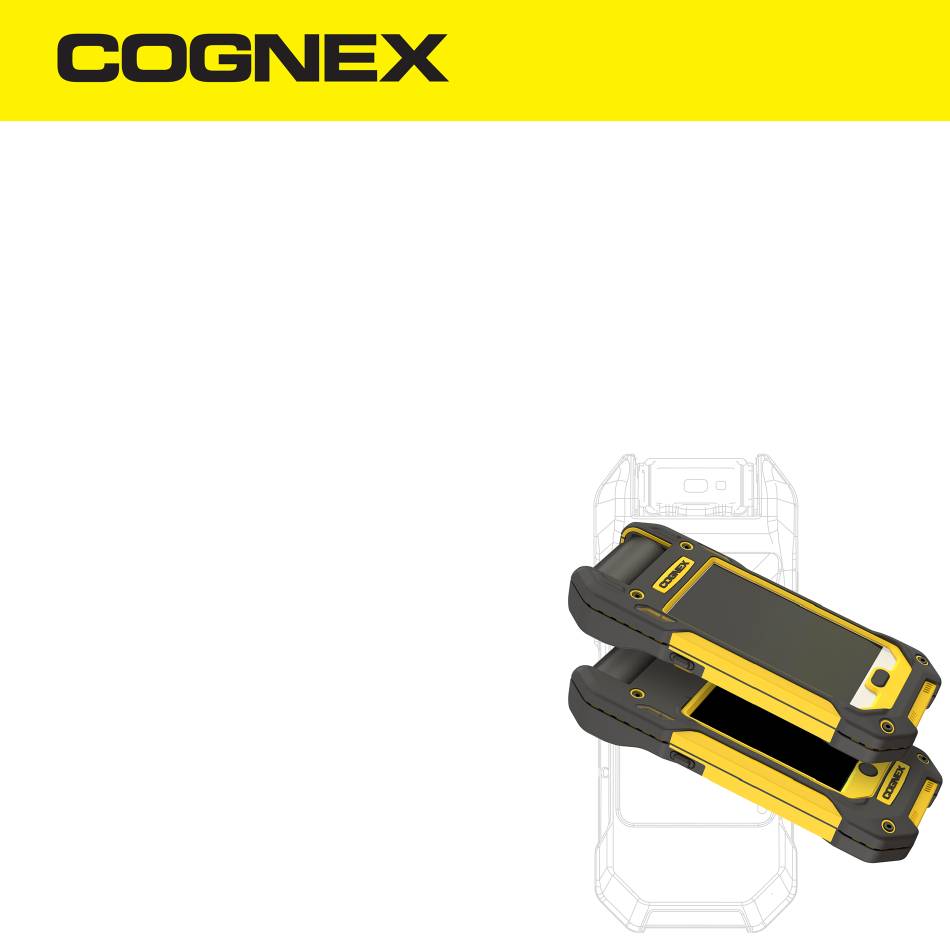

  • Page 1 MX-1100 Quick Reference Guide 2021 June 14 Revision: 6.3.0.21...
  • Page 2 Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: Route cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply.
  • Page 3 Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
  • Page 4 MX-1100 Layout Layout Scanner head (rotatable by 45°) Indicator LEDs Side trigger buttons Power button Touch screen Home button Speaker vents Recessed area for mobile camera Slider to lock battery cover...
  • Page 5 Battery cover Lanyard hook End cap of pistol grip* Trigger button on the pistol grip* *Pistol grip is optional...
  • Page 6 MX-1100 Accessories Accessory Battery for reader (3120 mAh) DMA-MTBATTERY-01 Battery for pistol grip accessory (3070 mAh) DMA-HHBATTERY-01 Pistol grip DMA-GRIP-01 Note: The grip features its own trigger button and an additional battery which can be charged via the charging station.
  • Page 7 Accessory DMA-24VPWR-US Power supply for charging station 24V/24W DMA-24VPWR-EU USB Type-C battery charger kits 1. DMA-MXUSB-01 USB Type-C Battery Cover 2. DMA-MXUSB-02 3. DMA-MXUSB-03 (DMA-MXUSB-00) + USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER) USB Type-C Battery Cover (DMA-MXUSB-00) + Handstrap (DMA-MXSTRAP-00) USB Type-C Battery Cover (DMA-MXUSB-00) + USB Type-C 3Amp Car Charger...
  • Page 8 Accessory DMA-COVERKIT-S6 Top Cover DMA-COVERKIT-S7 DMA-COVERKIT-S8 DMA-COVERKIT-S9 DMA-COVERKIT-I5 DMA-COVERKIT-I6 DMA-COVERKIT-S4 DMA-COVERKIT-S5 DMA-COVERKIT-J3 DMA-COVERKIT-J327 DMA-COVERKIT-J330 DMA-COVERKIT-A3 DMA-COVERKIT-X4 DMA-COVERKIT-N42 DMA-COVERKIT-s10e DMA-COVERKIT-iX...

  • Page 9: Dimensional Drawings

    Dimensional Drawings...

  • Page 10: Field Of View And Reading Distances

    Field of View and Reading Distances Working Distance Horizontal Values Vertical Values = 15 mm = 6.4 mm = 4.09 mm = 210 mm = 148.31 mm = 94.67 mm = 420 mm = 301.14 mm = 192.22 mm...
  • Page 11 Distances in mm / 1D min code Distances in mm / 2D min code 25-105 5 MIL 15-70 5 MIL 25-158 7.5 MIL 15-105 7.5 MIL 25-210 10 MIL 15-140 10 MIL 25-420 20 MIL 15-275 20 MIL Note: Due to tolerances, ranges can vary by +/- 5 mm for small codes to +/- a couple of centimeters for large codes.

  • Page 12: Assembling The Reader

    Plug the pistol grip cable into the grip connector. Insert the reader battery. Assemble the reader with the pistol grip and tighten the screws. Note: For details, see the MX-1100 Reference Manual. For a list of supported mobile devices, please contact Cognex.

  • Page 13: Installation

    Do not force the connections or damage may occur. Install Software and Documentation and Connect the Reader To configure an MX-1100 reader, the DataMan Setup Tool software must be installed on a networked PC. The DataMan Setup Tool is available from the DataMan support site: http://www.cognex.com/support/dataman.

  • Page 14: Imager Specifications

    MX-1100 Specifications Specification MX-1100 Imager Weight 510 g (675 g with pistol grip) Operating Temperature 0ºC— +40ºC (+32ºF — +104ºF) Charging Temperature 0ºC — +35ºC (+32ºF — +95ºF) Maximum Humidity < 95% (non-condensing) Environmental IP65 Codes 1-D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93,...

  • Page 15: Led Wavelengths

    6.0 μm square pixels Image Resolution (Pixels) 752 x 480 global shutter sensor Lens Type 6.2 mm with different focal positions for MX-1000 and MX-1100, M12 lens with IR blocking filter LED Wavelengths The following table shows LED types and the related wavelengths:...

  • Page 16: Charging Station Specifications

    Charging Station Specifications Specification Charging Station Weight 380 g Operating Temperature 0ºC — +40ºC (+32ºF — +104ºF) Storage Temperature -40ºC — +60ºC (-40ºF — +140ºF) Maximum Humidity 95% (non-condensing) 24 V, 24 W maximum LPS or NEC Class 2 power supply Power Supply Requirements 0.5A (inductive) and 1A (non-inductive)

  • Page 17: Compliance Statements

    FCC Part 15, Subpart B Class A Canada ICES-003, Class A European Community Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. Safety and Regulatory European Compliance This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 18 Korea MX-1000: Regulatory Model 1AA7 (inductive), R00078 (non-inductive) For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 19 appropriate take-back systems for product disposal. Those systems will reuse or recycle most of the materials of the product you are disposing in a sound way. The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal.
  • Page 20 KN24 Registration number: MSIP-REM-CGX-DMA-MT-BASE For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 21 The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration.
  • Page 22 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根 据 中 国 大 陆 《 电 子 信 息 产 品 污 染 控 制 管 理 办 法 》 ( 也 称 为 中 国 大 陆 RoHS)， 以...
  • Page 23 Copyright © 2021 Cognex Corporation. All Rights Reserved.
