MX-1000 Series
Quick Reference Guide
2021 June 14
Revision: 6.3.0.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cognex MX-1000 Series

Summary of Contents for Cognex MX-1000 Series

  • Page 1 MX-1000 Series Quick Reference Guide 2021 June 14 Revision: 6.3.0.21...
  • Page 2 Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: Route cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply.
  • Page 3 Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

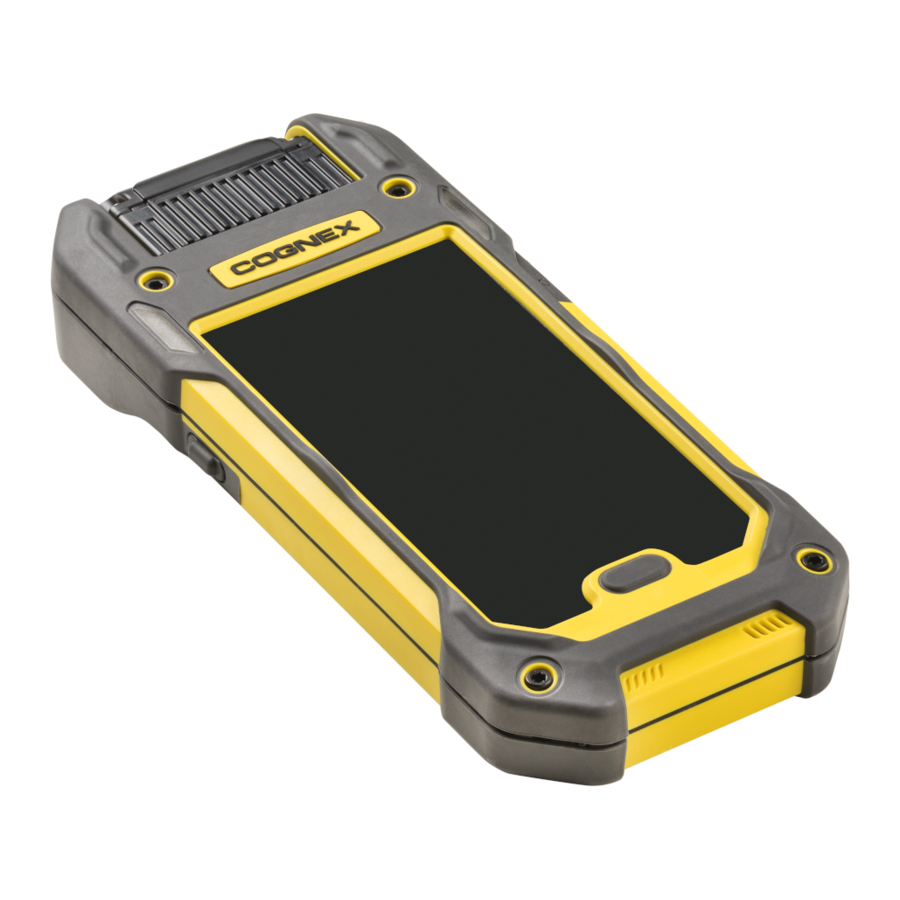

  • Page 4 MX-1000 Layout Layout Scanner head (rotatable by 45°) Indicator LEDs Side trigger buttons Power button Touch screen Home button Speaker vents Recessed area for mobile camera Slider to lock battery cover...
  • Page 5 Battery cover Lanyard hook End cap of pistol grip* Trigger button on the pistol grip* *Pistol grip is optional...
  • Page 6 MX-1000 Series Accessories Accessory Battery for reader (3120 mAh) DMA-MTBATTERY-01 Battery for pistol grip accessory (3070 mAh) DMA-HHBATTERY-01 Pistol grip DMA-GRIP-01 Note: The grip features its own trigger button and an additional battery which can be charged via the charging station.
  • Page 7 Accessory DMA-24VPWR-US Power supply for charging station 24V/24W DMA-24VPWR-EU USB Type-C battery charger kits 1. DMA-MXUSB-01 USB Type-C Battery Cover 2. DMA-MXUSB-02 3. DMA-MXUSB-03 (DMA-MXUSB-00) + USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER) USB Type-C Battery Cover (DMA-MXUSB-00) + Handstrap (DMA-MXSTRAP-00) USB Type-C Battery Cover (DMA-MXUSB-00) + USB Type-C 3Amp Car Charger...
  • Page 8 Accessory DMA-COVERKIT-S6 Top Cover DMA-COVERKIT-S7 DMA-COVERKIT-S8 DMA-COVERKIT-S9 DMA-COVERKIT-I5 DMA-COVERKIT-I6 DMA-COVERKIT-S4 DMA-COVERKIT-S5 DMA-COVERKIT-J3 DMA-COVERKIT-J327 DMA-COVERKIT-J330 DMA-COVERKIT-A3 DMA-COVERKIT-X4 DMA-COVERKIT-N42 DMA-COVERKIT-s10e DMA-COVERKIT-iX...

  • Page 9: Dimensional Drawings

    Dimensional Drawings...

  • Page 10: Field Of View And Reading Distances

    Field of View and Reading Distances Note: Due to tolerances, ranges can vary by +/- 5 mm for small codes to +/- a couple of centimeters for large codes.
  • Page 11 Plug the pistol grip cable into the grip connector. Insert the reader battery. Assemble the reader with the pistol grip and tighten the screws. Note: For details, see the MX-1000 Reference Manual. For a list of supported mobile devices, please contact Cognex.

  • Page 12: Installation

    Windows Start menu, select the following to access the manual: All Programs > Cognex > DataMan Software v6.1.0 > Documentation. Note: If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the reader.

  • Page 13: Imager Specifications

    MX-1000 Specifications Specification MX-1100 Imager Weight 510 g (675 g with pistol grip) Operating Temperature 0ºC— +40ºC (+32ºF — +104ºF) Storage Temperature -40ºC — +60ºC (-40ºF — +140ºF) Charging Temperature 0ºC — +35ºC (+32ºF — +95ºF) Maximum Humidity < 95% (non-condensing) Environmental IP65 Codes...
  • Page 14 Specification MX-1000 Imager Image Sensor 1/3 inch CMOS Image Sensor Properties 6.0 μm square pixels Image Resolution (Pixels) 752 x 480 global shutter sensor Lens Type 6.2 mm with different focal positions for MX-1000 and MX-1100, M12 lens with IR blocking filter LED Wavelengths The following table shows LED types and the related wavelengths: λ...

  • Page 15: Charging Station Specifications

    Charging Station Specifications Specification Charging Station Weight 380 g Operating Temperature 0ºC — +40ºC (+32ºF — +104ºF) Storage Temperature -40ºC — +60ºC (-40ºF — +140ºF) Maximum Humidity 95% (non-condensing) 24 V, 24 W maximum LPS or NEC Class 2 power supply Power Supply Requirements 0.5A (inductive) and 1A (non-inductive)

  • Page 16: Compliance Statements

    EN55022, Class A European Community EN55024 Australia AS/NZS 3548 Class B VCCI V-2/2015.04 Japan IEC/CISPR 22 Korea IEC/CISPR 24 KN22 KN24 Registration number: MSIP-REM-CGX-DM9050 Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support.
  • Page 17 CB report available upon request. TÜV SÜD, IEC/EN 61010-1. Korea MX-1000: Regulatory Model 1AA7 (inductive), R00078 (non-inductive) For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).
  • Page 18 This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed. In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal.
  • Page 19 KN24 Registration number: MSIP-REM-CGX-DMA-MT-BASE For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 20 The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration.
  • Page 21 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根 据 中 国 大 陆 《 电 子 信 息 产 品 污 染 控 制 管 理 办 法 》 ( 也 称 为 中 国 大 陆 RoHS)， 以...
  • Page 22 Copyright © 2021 Cognex Corporation. All Rights Reserved.
