MX-1502
Quick Reference Guide
2020 June 05
Revision: 1.0.0.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cognex MX-1500

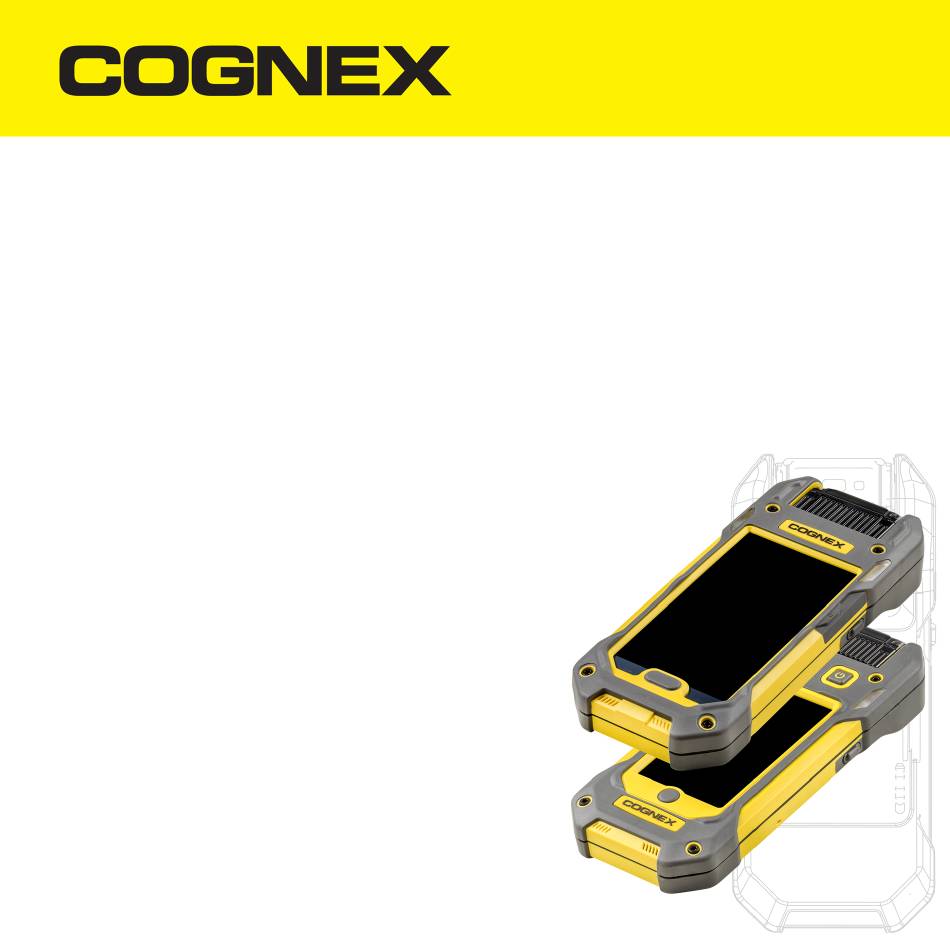

  • Page 1 MX-1502 Quick Reference Guide 2020 June 05 Revision: 1.0.0.10...
  • Page 2 Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: Route cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply.
  • Page 3 MX-1502 Layout Layout Standard front cover Indicator LEDs Side trigger buttons Power button Touch screen Home button Speaker vents Recessed area for mobile camera Slider to lock battery cover Battery cover Lanyard hook End cap of pistol grip* Trigger button on the pistol grip* *Pistol grip is optional...
  • Page 4 MX-1502 Accessories Accessory Battery for reader (3120 mAh) DMA-MTBATTERY-01 Battery for pistol grip accessory (3070 mAh) DMA-HHBATTERY-01 Pistol grip DMA-GRIP-01 Note: The grip features its own trigger button and an additional battery which can be charged via the charging station. DMA-HOLSTER-01 Belt holster DMA-HOLSTER-02...
  • Page 5 Accessory USB Type-C battery charger kits 1. DMA-MXUSB-01 USB Type-C Battery Cover 2. DMA-MXUSB-02 3. DMA-MXUSB-03 (DMA-MXUSB-00) + USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER) USB Type-C Battery Cover (DMA-MXUSB-00) + Handstrap (DMA-MXSTRAP-00) USB Type-C Battery Cover (DMA-MXUSB-00) + USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER) + Handstrap (DMA-MXSTRAP- Passive car holder...
  • Page 6 Accessory DMA-COVERKIT-S6 Top Cover DMA-COVERKIT-S7 DMA-COVERKIT-S8 DMA-COVERKIT-S9 DMA-COVERKIT-I5 DMA-COVERKIT-I6 DMA-COVERKIT-S4 DMA-COVERKIT-S5 DMA-COVERKIT-J3 DMA-COVERKIT-J327 DMA-COVERKIT-J330 DMA-COVERKIT-A3 DMA-COVERKIT-X4 DMA-COVERKIT-N42 DMA-COVERKIT-s10e DMA-COVERKIT-iX...
  • Page 7: Dimensional Drawings

    Dimensional Drawings MX-1502 standard front cover model:...
  • Page 8 Field of View and Reading Distances MX-1502-LR Readers with 6.2 mm Lens Distances in mm 1D min. code 10 MIL 2000 50 MIL 4100 100 MIL Distances in mm 2D min. code 10 MIL 50 MIL 1700 199 MIL...
  • Page 9: Mx-1502-Er Readers With 12 Mm Lens

    MX-1502-ER Readers with 12 mm Lens Distances in mm 1D min. code 4 MIL 4500 50 MIL 9500 100 MIL Distances in mm 2D min. code 7 MIL 1000 25 MIL 2000 50 MIL...
  • Page 10: Mx-1502-Xr Readers With 20 Mm Lens

    MX-1502-XR Readers with 20 mm Lens Distances in mm 1D min. code 4 MIL 8000 50 MIL 14500 100 MIL Distances in mm 2D min. code 4 MIL 1000 14 MIL 2000 28 MIL...
  • Page 11: Mx-1502-Dl Readers With 6.2 Mm Lens

    MX-1502-DL Readers with 6.2 mm Lens Distances in mm 1D min. code 0-200 10 MIL 0-260 15 MIL 0-300 20 MIL Distances in mm 2D min. code 20-170 6 MIL 0-200 10 MIL 0-60 15 MIL...
  • Page 12 Working Distance Horizontal Values Vertical Values = 15 mm = 6.4 mm = 4.09 mm = 210 mm = 148.31 mm = 94.67 mm = 420 mm = 301.14 mm = 192.22 mm Distances in mm / 1D min code Distances in mm / 2D min code 25-105 5 MIL...
  • Page 13 Distances in mm / 1D min code Distances in mm / 2D min code 25-158 7.5 MIL 15-105 7.5 MIL 25-210 10 MIL 15-140 10 MIL 25-420 20 MIL 15-275 20 MIL Note: Due to tolerances, ranges can vary by +/- 5 mm for small codes to +/- a couple of centimeters for large codes.
  • Page 14: Assembling The Reader

    Plug the pistol grip cable into the grip connector. Insert the reader battery. Assemble the reader with the pistol grip and tighten the screws. Note: For details, see the MX-1502 Reference Manual. For a list of supported mobile devices, please contact Cognex.
  • Page 15: Installation

    Windows Start menu, select the following to access the manual: All Programs > Cognex > DataMan Software v6.1.0 > Documentation. Note: If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the reader.
  • Page 16: Imager Specifications

    MX-1502 Specifications Specification MX-1100 Imager 499g (664g with pistol grip) Weight Operating Temperature 0ºC— +40ºC (+32ºF — +104ºF) - 10 ºC — +60ºC ( +10 ºF — +140ºF) Storage Temperature 0ºC — +35ºC (+32ºF — +95ºF) Charging Temperature Maximum Humidity <...
  • Page 17 The following table shows LED types and the related wavelengths: λ [nm] WHITE 5700K (Color Temperature) BLUE HIGH POWER RED RED IN DL VERSION...
  • Page 18: Charging Station Specifications

    Charging Station Specifications Specification Charging Station Weight 380 g Operating Temperature 0ºC — +40ºC (+32ºF — +104ºF) Storage Temperature -40ºC — +60ºC (-40ºF — +140ºF) Charging Temperature 0ºC — +35ºC (+32ºF — +95ºF) Maximum Humidity 95% (non-condensing) Environmental IP40 24 V, 24 W maximum LPS or NEC Class 2 power supply Power Supply Requirements 0.5A (inductive) and 1A (non-inductive) Note: The operating and charging temperature may be lower depending on...
  • Page 19: Compliance Statements

    European Community EN55024 VCCI V-2/2015.04 Japan Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. Safety and Regulatory European Compliance This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 20 REM-CGX-R00045 Japanese Statement For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 21 In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems will reuse or recycle most of the materials of the product you are disposing in a sound way. The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal.
  • Page 22 Regulator Specification EN55032, Class A European Community EN55024 Australia AS/NZS 3548 Class A Japan VCCI V-3/2015.04 Class A IEC/CISPR 22 Korea IEC/CISPR 24 KN22 KN24 Registration number: MSIP-REM-CGX-DMA-MT-BASE Laser safety statement WARNING: Illumination and Lens assembly: This device has been tested in accordance with IEC60825-1 3rd ed., 2014., and has been certified to be under the limits of a Class 2 Laser device.
  • Page 23 For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 24 Safety and Regulatory FCC Class A FCC Part 15, Class A This equipment has been tested and found to comply with the limits for a Class A digital Compliance Statement device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 25 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根 据 中 国 大 陆 《 电 子 信 息 产 品 污 染 控 制 管 理 办 法 》 ( 也 称 为 中 国 大 陆 RoHS), 以...
  • Page 26 Copyright © 2020 Cognex Corporation. All Rights Reserved.
