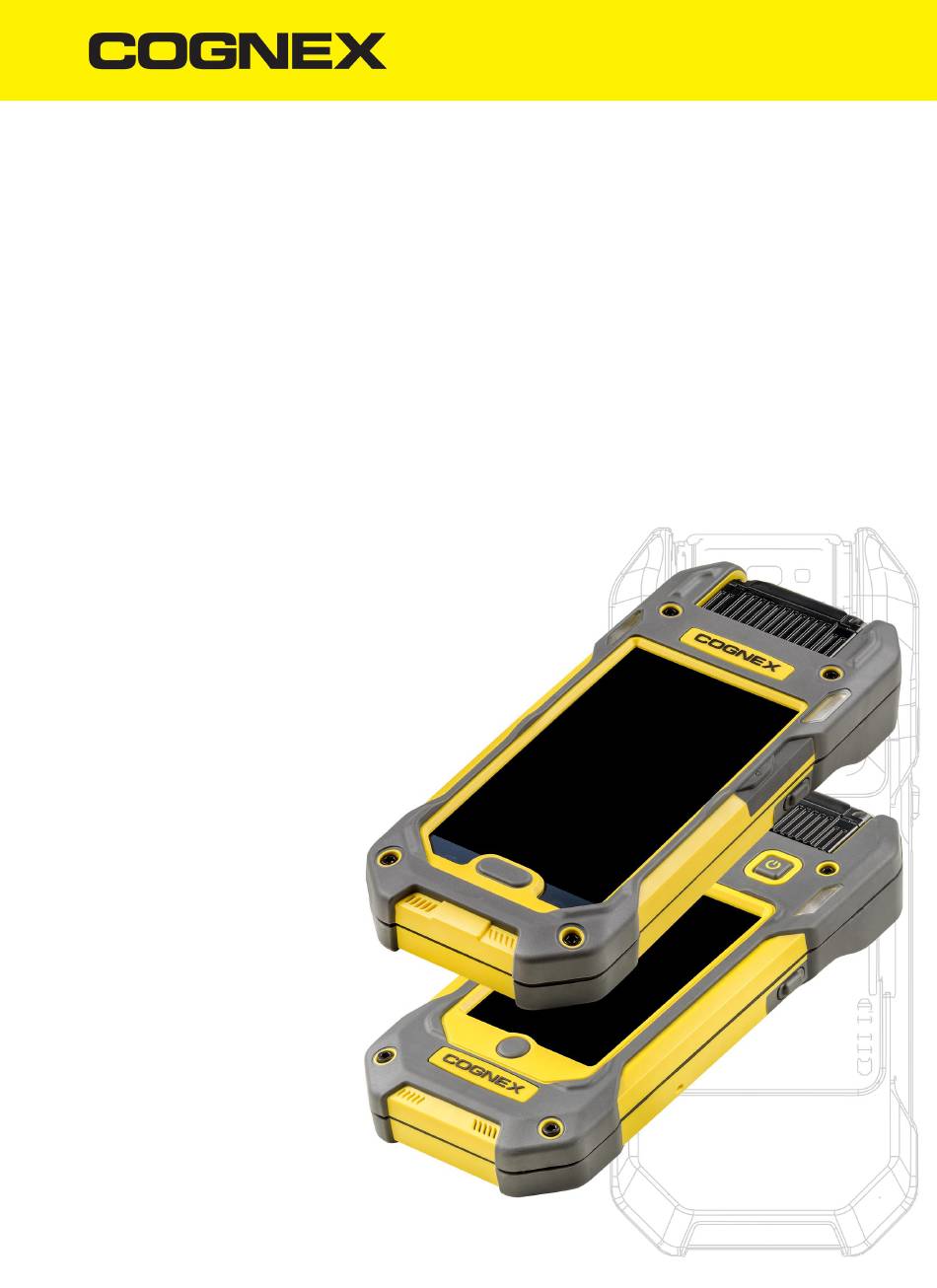

MX-1502
Reference Manual
2019 November 15
Revision: 6.1.6SR2.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1502 and is the answer not in the manual?

Questions and answers

Related Manuals for Cognex MX-1502

Summary of Contents for Cognex MX-1502

  • Page 1 MX-1502 Reference Manual 2019 November 15 Revision: 6.1.6SR2.2...

  • Page 2: Legal Notices

    Copyright © 2019. Cognex Corporation. All Rights Reserved. Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.

  • Page 3: Table Of Contents

    Setting up the MX-1502 Assembling the MX-1502 Assembling the Reader with the Pistol Grip Charging Charging an MX-1502 Using the Wireless Charging Station USB Type-C Charging Changing Battery in the MX-1502 Reader Changing Battery in the Pistol Grip Reading Codes with your MX-1502 MX-1502-LR Readers with 6.2 mm Lens...

  • Page 4: Symbols

    Symbols Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

  • Page 5: Getting Started

    This section provides general information about the Cognex MX-1502 Vision-Enabled Mobile Terminal (henceforth referred to as "MX-1502 reader"). You can also find information on the MX-1502 accessories and the physical layout of the reader and the charging station in this section.
  • Page 6 Getting Started Note: A mobile device is necessary to work with the MX-1502 reader. The currently supported devices are: Galaxy S6, S7, S8 S9 Galaxy J3 Galaxy A3 Galaxy XCover 4 iPhone SE, 5S, 6, 6S, 7, 8 iPod touch generations 5th and 6th...

  • Page 7: Mx-1502 Accessories

    Getting Started MX-1502 Accessories Battery for reader (3120 mAh) DMA-MTBATTERY-01 Battery for pistol grip accessory (3070 mAh) DMA-HHBATTERY-01 Pistol grip DMA-GRIP-01 Note: The grip features its own trigger button and an additional battery which can be charged via the charging station.
  • Page 8 Getting Started Wireless car charger DMA-VMCHARGER-00 DMA-24VPWR-US Power supply for charging station 24V/24W DMA-24VPWR-EU USB Type-C battery charger kits: 1. DMA-MXUSB-01 1. USB Type-C Battery Cover (DMA- MXUSB-00) + USB Type-C 3Amp Car Charger (DMA-MXUSB-CHARGER) 2. DMA-MXUSB-02 2. USB Type-C Battery Cover (DMA- MXUSB-00) + Handstrap (DMA- MXSTRAP-00) 3.

  • Page 9: Mx-1502 Layout

    Getting Started MX-1502 Layout Standard front cover Indicator LEDs Side trigger buttons Power button Touch screen Home button Speaker vents Recessed area for mobile camera Slider to lock battery cover Battery cover Lanyard hook End cap of pistol grip* Trigger button on the pistol grip*...

  • Page 10: Layout Of The Charging Station

    Getting Started Layout of the Charging Station Top view: Charging station power LEDs Device charger bay Battery charger LED Spare battery charger bay Bottom view: Cable guide Power plug (24 V, jack) Power plug (24 V, terminal block) Note: Supply power by using only one of the connectors.

  • Page 11: Indicator Leds

    Getting Started Indicator LEDs MX-1502 indicator LEDs Type Signal Color Interval Meaning Status Battery health RED and GREEN blinking Battery health low Configuration GREEN 2 short blinks/1 sec Internal reconfiguration Overheat protection 2 short blinks/1.5 sec Overheat protection Status Low battery status...

  • Page 12: Dimensional Drawings

    Getting Started Dimensional Drawings MX-1502 standard front cover model:...

  • Page 13: Mx-1502 Specifications

    Note: The operating and charging temperature may be lower depending on the installed mobile phone. Imager Specifications Specification MX-1502 Standard and Long Range Imager Image Sensor 1/3 inch CMOS Image Sensor Properties 4.8mm x 3.6mm (W x H), 3.75 µm square pixels...
  • Page 14 Getting Started Environmental IP40 24 V, 24 W maximum LPS or NEC Class 2 power supply Power Supply Requirements 0.5A (inductive) and 1A (non-inductive) Note: The operating and charging temperature may be lower depending on the installed mobile phone.

  • Page 15: Setting Up The Mx-1502

    This section provides information on how to assemble, and how to set up your MX-1502 reader. Assembling the MX-1502 The first step in preparing your MX-1502 is assembling the components of your MX-1502 Kit. The MX-1502 Kit contains the following components: Base unit Battery + cover...
  • Page 16 Setting up the MX-1502 Perform the following steps to assemble the MX-1502 reader: 1. Carefully place the rubber insert on the base unit which is the lower part of the reader. 2. Take the provided USB cable and plug it into the base unit. Then take your phone and put it on the rubber insert.

  • Page 17: Assembling The Reader With The Pistol Grip

    If you want to use your reader with a pistol grip, perform the following steps: 1. Open the back cover of the reader by unlocking the sliders and take out the battery. Note: For more information about back cover locking and opening, see Changing Battery in the MX-1502 Reader).

  • Page 18: Charging

    Setting up the MX-1502 2. Plug the pistol grip accessory cable into the grip accessory connector. WARNING: Do not insert the battery into the pistol grip during the assembly process. Note: For more information on how to insert the battery into the grip after the assembly process, see Changing Battery in the Pistol Grip on page 24...

  • Page 19: Charging An Mx-1502 Using The Wireless Charging Station

    Charging an MX-1502 Using the Wireless Charging Station You can charge your MX-1502 reader using the wireless charging station. It has threaded inserts at the bottom to be securely mountable on different surfaces. It allows the charging of both the spare battery and the main unit.
  • Page 20 Setting up the MX-1502 When the wireless reader is removed from the device bay, the charging station power led becomes red. It indicates that the charger is inactive. To charge the spare battery, you need to insert it to the battery charging bay of the charging station. Make sure that the...
  • Page 21 Setting up the MX-1502 Once you put the spare battery into the battery bay, the battery charger LED light turns to red, while the flashing red light indicates an error. When charging is finished, the LED light turns green. Note: For more information on the battery charger LED lights, see...

  • Page 22: Usb Type-C Charging

    Note: Both the cable and the power supply must be compatible with 5V/3A. Changing Battery in the MX-1502 Reader The MX-1502 reader contains a battery (lithium polymer battery, capacity: 3000 mAh) which you can charge by putting it into the spare battery charging bay of the charging station.
  • Page 23 Setting up the MX-1502 Note: For more information on charging the batteries, see Charging. 3. Put a new battery into the battery bay of your reader or wait until the charging process of the discharged battery is finished. Make sure that the battery is properly installed in the battery bay.

  • Page 24: Changing Battery In The Pistol Grip

    The battery used in the devices may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 60 ºC (140 ºF), or incinerate. Replace battery with Cognex DMA-HHBATTERY-01 only. The use of another battery may present a risk of fire or explosion.
  • Page 25 Setting up the MX-1502 3. Put the replacement battery into the slot. The battery has a small triangle on one side. Make sure that you insert the battery into the slot with the side depicting the triangle pushed in first.

  • Page 26: Reading Codes With Your Mx-1502

    Reading Codes with your MX-1502 Reading Codes with your MX-1502 The following map shows the field of view (FoV) of MX-1502 readers. Reading distance values are also provided for 2-D and Code39 example code distances. MX-1502-LR Readers with 6.2 mm Lens The following map shows the FoV of the MX-1502-LR readers with a 6.2 mm lens.

  • Page 27: Mx-1502-Xr Readers With 20 Mm Lens

    Reading Codes with your MX-1502 MX-1502-XR Readers with 20 mm Lens The following map shows the FoV of the MX-1502-XR readers with a 20 mm lens at various distances. The FoV values are shown as follows:...

  • Page 28: Mx-1502-Dl Readers With 6.2 Mm Lens

    Reading Codes with your MX-1502 MX-1502-DL Readers with 6.2 mm Lens The following map shows the FoV of the MX-1502-DL readers with a 6.2 mm lens at various distances. The FoV values are shown as follows:...
  • Page 29 Reading Codes with your MX-1502 Note: Due to tolerances, ranges can vary by +/- 5 mm for small codes to +/- 2 centimeters for large codes.

  • Page 30: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Cleaning the Reader Housing To clean the outside of the reader housing, use a small amount of mild detergent cleaner or isopropyl alcohol on a cleaning cloth. Do not pour the cleaner directly onto the reader housing. CAUTION: Do not attempt to clean any MX Series product with harsh or corrosive solvents, including lye, methyl ethyl ketone (MEK) or gasoline.

  • Page 31: Compliance Statements

    Statement For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous...

  • Page 32: Compliance Statements: Mx-1502 Charging Station

    2014., and has been certified to be under the limits of a Class 2 Laser device. For European Union Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).

  • Page 33: 中 国 大 陆 Rohs (Information For China Rohs Compliance)

    Compliance Statements This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed. In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal.
  • Page 34 Compliance Statements Hazardous Substances 有害物质 Part Name Lead (Pb) Mercury (Hg) Cadmium Hexavalent Polybrominated Polybrominated 部件名称 铅 汞 (Cd) Chromium biphenyls (PBB) diphenyl ethers (PBDE) 镉 多溴联苯 多溴二苯醚 (Cr (VI)) 六价铬 Regulatory Model R00045 Regulatory Model 1ABA This table is prepared in accordance with the provisions of SJ/T 11364. 这个标签是根据SJ / T 11364 的规定准备的。...

  • Page 35: Precautions

    Precautions Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: Route cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply.
  • Page 36 Copyright © 2019 Cognex Corporation. All Rights Reserved.
