LEGRAND 488 43 Quick Start Manual

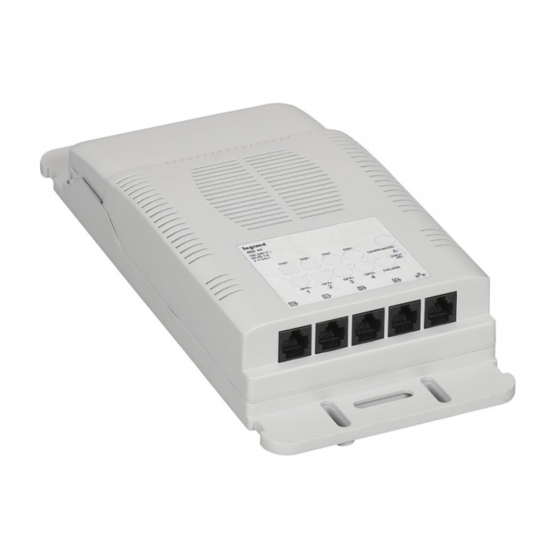

Controller - 4 x 1-10 V outputs
1. USE
This device is a power unit used for managing lighting loads.
It must be connected to one or more detectors and/or diverted
auxiliary controls in order to operate.
The load(s) can be controlled manually or automatically by the
detectors and/or the controls associated with the device.
2. TEChNiCal fEaTUrES
LEARN indicator:
indicates the learning
Control or RESET phase
buttons
Indicators
(on if output
activated)
1 Fluorescent tubes
2 Tungsten halogen bulbs
3
Compact fluorescent bulbs
4
Ballasts 1 - 10 V
1
4
230 V~ 4 x 1000 VA
110 V~ 4 x 500 VA
Technical data sheet: F01121EN/00
CONTENTS
LEARN button
Red indicator:
indicates that the capacity of
the , , or BUS
has been exceeded
4 x 4.3 A
Updated on:
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 488 43
Voltage: 100-240 V~
Frequency: 50/60 Hz
No load power consumption: 4 W
Wiring:
- Power:
Power supply: 2 x 2.5 mm
N L1: via normally open relay contact
N L2: via normally open relay contact
N L3: via normally open relay contact
N L4: via normally open relay contact
0 - 10 V  1.5 mm
2
- Control:
Connection between detector and controller: RJ 45 cord or cable or
BUS/SCS cable to be fitted with RJ 45 connector
( , , , 150 m max. cord or BUS/SCS cable between the
controller and the furthest detector)
( 500 m max. cord or BUS/SCS cable between the power supply
and the furthest product)
The product incorporates positive safety
- If there is a peripheral fault on the
come back on automatically after 10 minutes.
- If there is a connection fault on the
automatically after 50 seconds.
Product installation: in a suspended ceiling or on a suitable cable tray
Peripherals compatible with the offer:
- Digital detectors: infrared, ultrasound or dual technology
- Pushbutton lighting controls: switch and scenario management
multifunction controls|
+ +
Usage temperature: -5°C to +45°C
Storage temperature: -20°C to +70°C
Weight: 580 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP20
2
4
4 x 1000 VA
4 x 4.3 A
4 x 500 VA
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical features . . . . . . . . . . . . . . . .1
3. Overall dimensions. . . . . . . . . . . . . . . .2
4. Connection . . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . . .2
6. Parameter setting . . . . . . . . . . . . . . . . .3
7. Maintenance. . . . . . . . . . . . . . . . . . . . .3
8. Standards . . . . . . . . . . . . . . . . . . . . . . .3
(screw terminals)
2
, , or
BUS, the lights come back on
+  200 mA
3
4
4 x 1000 W
4 x 500 W
Created on: 22/09/2010
Page
BUS, the lights
4 x 4.3 A
