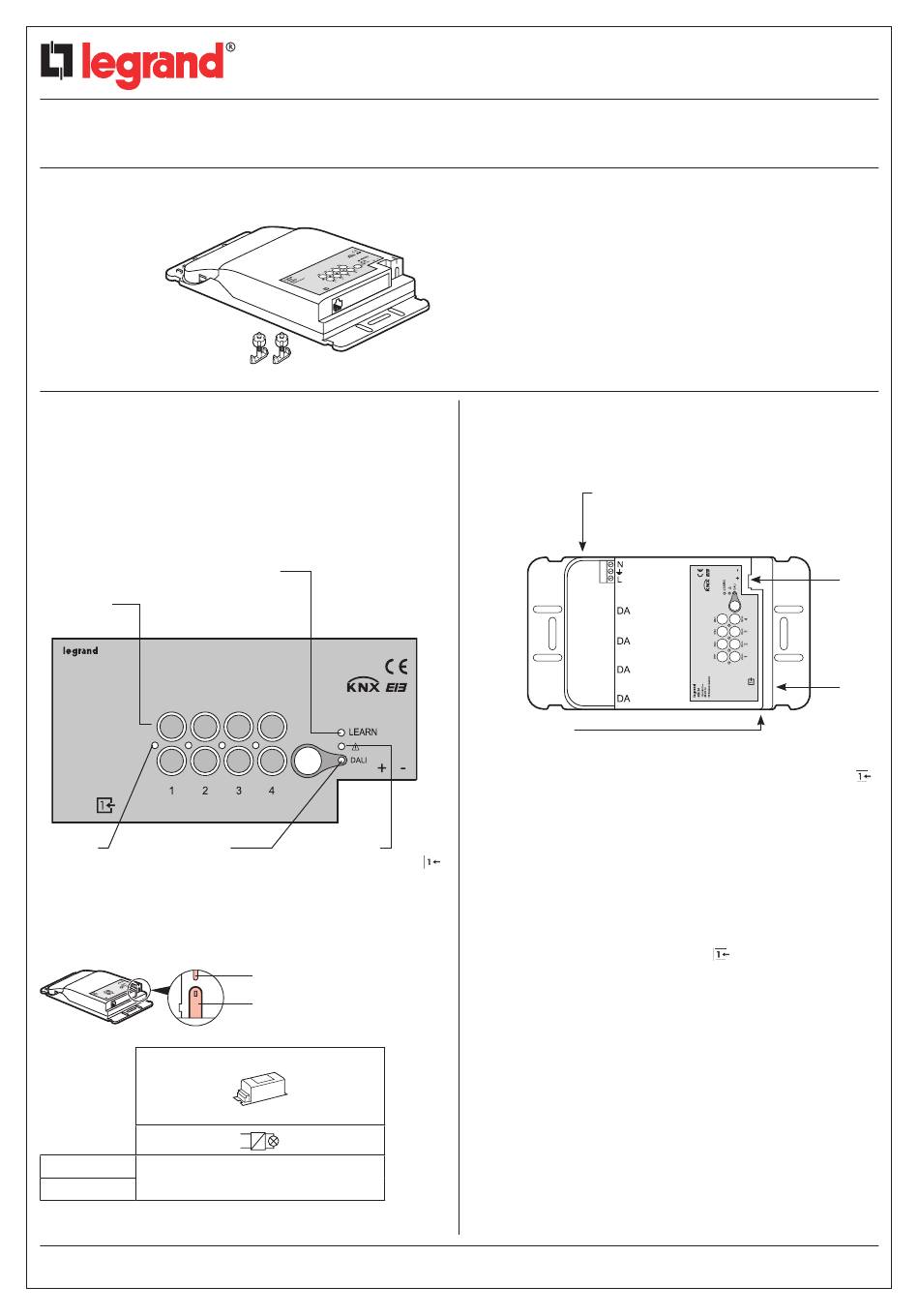

LEGRAND 0 488 64 Quick Start Manual

Controller - 4 x DALI circuits -
BUS/KNX
DALI
1. USE
This device is a power unit for managing lighting loads (DALI or DSI).
It must be connected to one or more sensors and/or remote auxiliary
controls in order to operate.
The load(s) can be controlled manually or automatically by the sensors
and/or the controls associated with the device.
2. TECHNICAL CHARACTERISTICS
LEARN LED:
indicates the learning
Control phase or RESET
buttons
Indicators DALI LED:
(on if output indicates the
activated) learning phase or
RESET of the
DALI or DSI ballasts
1 DALI ballast
1
230 V~
32 ballasts max./channel
110 V~
Technical data sheet: S000064192EN-3
CONTENTS
Red LED:
indicates that the BUS
capacity has been exceeded
"PROG & RESET LED"
"PROG & RESET button"
Updated: 29/10/2015
87045 LIMOGES Cedex France
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 0 488 64
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . .1
3. Dimensions. . . . . . . . . . . . . . . . . . . . . .2
4. Connection . . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . . .3
6. Parameter setting . . . . . . . . . . . . . . . . .4
7. Communication objects . . . . . . . . . . . .4
8. Care . . . . . . . . . . . . . . . . . . . . . . . . . . .6
9. Standards . . . . . . . . . . . . . . . . . . . . . . .6
2. TECHNICAL CHARACTERISTICS (continued)
Voltage: 100-240 V~
Frequency: 50/60 Hz
No load power consumption: 2.4 W
Power side
Power supply: 2 x 2.5 mm
Control side
• BUS
Connection between the compatible peripherals in the offer and
the controller: RJ 45 cord or BUS cable to fit RJ 45 connector (
max. 150 m between the controller and the furthest peripherals)
• KNX
Connection between the controller and products in the KNX offer:
KNX cable fitted with red, black KNX connector (350 m max. of
cable between the power supply and the furthest product. Beyond
this distance, repeaters must be used.)
The product incorporates positive safety
- If there is a peripheral fault on the BUS
the lights come back on automatically after 10 minutes.
Product installation: in a suspended ceiling or on a suitable cable tray
Page
(screw terminals)
2
DALI  1.5 mm
2
KNX
BUS
,
Created: 03/05/2012
1/6
