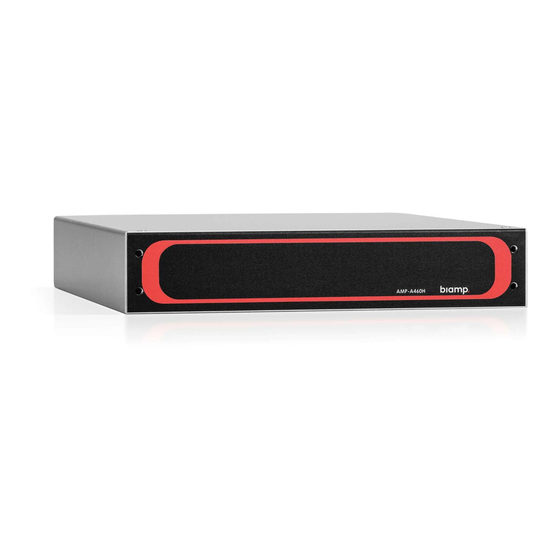

- Page 1 AMP-A460H OPERATION MANUAL April 2019...
- Page 2 A460H - Setup and Installation Setup and Use CAUTION All speaker wiring connections should be made by qualified personnel and with the amplifier power removed. The 100V output requires Class 3 wiring. Please refer to a qualified electrician or other qualified person according to local codes. Installation Each unit requires a space of 1.75 inch (44mm) high, 8.7 inch (221mm) wide with 10.47 inch (266mm) depth and may be mounted on a flat surface or in a rack enclosure.
-
Page 3: Amplifier Output Connections
This plug is the main disconnecting device and should remain readily operable. There are no user interchangeable parts. Please contact Biamp Technical Support or your local distributor for all service requirements. - Page 4 A460H – Connections Input Wiring All wiring examples are Single Channel Connections Balanced Input Connections Unbalanced Input Connections Speaker Wiring All wiring examples are Single Channel Connections Single Channel 4 or 8 ohm Bridged mode 4 or 8 ohm Bridged mode 70/100V...
- Page 5 A460H - Setup Gain staging The amplifier channels are intended to be used with the default output blocks available in Tesira Software. Care should be taken to match the speaker load to the output capabilities (wattage) of the amplifier. For example, if a low-impedance single channel speaker load is 60 watts you are perfectly matched at the nominal input level.
- Page 6 A460H - Amplifier Current Draw AMP-A460H 1/8 Power Bridged Constant Voltage 4 ohm 8 ohm 4 ohm 8 ohm 100V Current Draw Amps Amps Amps Amps Amps Amps 100VAC 50Hz 100VAC 60Hz 120VAC 60Hz 230VAC 50Hz 240VAC 50Hz 1/3 Power...
