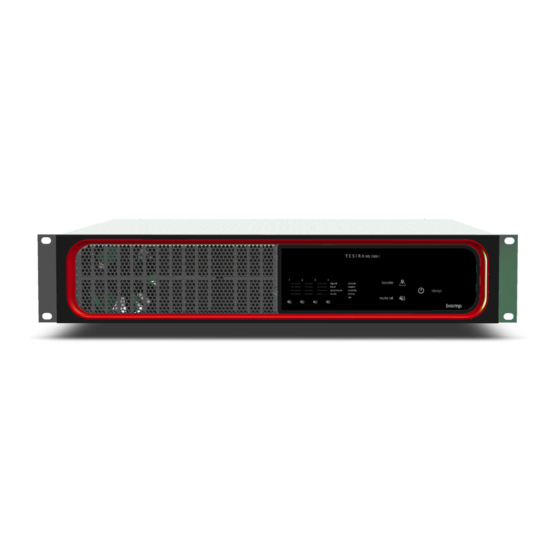

TesiraXEL 1200.1 AMPLIFIER
Installation & Operation Guide
4-channel, 1200W Network Amplifier
The TesiraXEL1200.1 is an AVB/TSN enabled,
digital networked, four-channel amplifier that
allows users to distribute 1-100% of available
power to any channel via a single asymmetric
power bank. The TesiraXEL 1200.1 supports
selectable impedance (4Ω, 8Ω, 70V, or 100V)
and delay equalization per channel.
The TesiraXEL1200.1 is equipped with an
audible locate function on the front panel to
validate connected loudspeaker runs without
requiring the amplifier to be configured.
The TesiraXEL 1200.1 comes with a software-
configurable media interface, allowing designers
to choose their preferred network topology.
Redundancy, daisy chain, single-cable, or
separate control and AVB are all supported.
The TesiraXEL 1200.1 also supports 802.1X
authentication for added security requirements.
Features
100% asymmetrical loading per channel
Selectable impedance per channel: 4Ω, 8Ω, 70V, 100V
Configurable media interface
Audible locate
Configurable via Tesira Software
Auto standby mode
Delay equalization per channel
Port authentication via IEEE 802.1X
Asymmetric Power Bank
The TesiraXEL 1200.1 amplifier features a single Asymmetric Power Bank which allows
customized distribution of power to loudspeaker channels, allowing for greater flexibility and
efficiency in sound system design.
Network Interface
The TesiraXEL 1200.1 amplifier is equipped with two network interface ports (RJ-45
connectors) that may be configured as a redundant pair, separated media network and
control, or used for daisy-chaining multiple devices.
A:
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
T:
+1 503.641.7287
W:
www.biamp.com
MAY 2019
