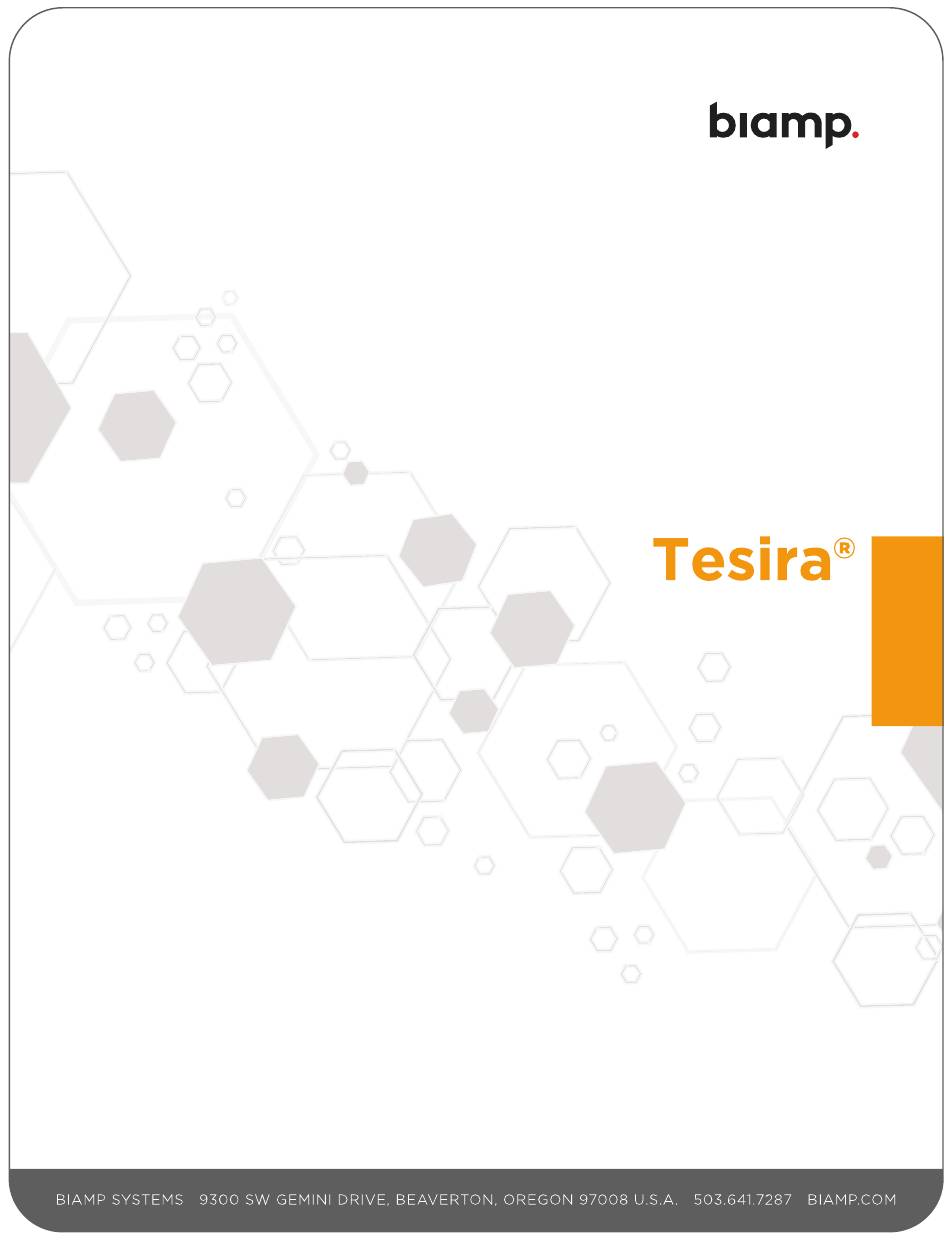

- Page 1 AMP-4175R, AMP-4300R CV, AMP-4350R and AMP-8175R. OPERATION MANUAL April 2019 585.0407.900...

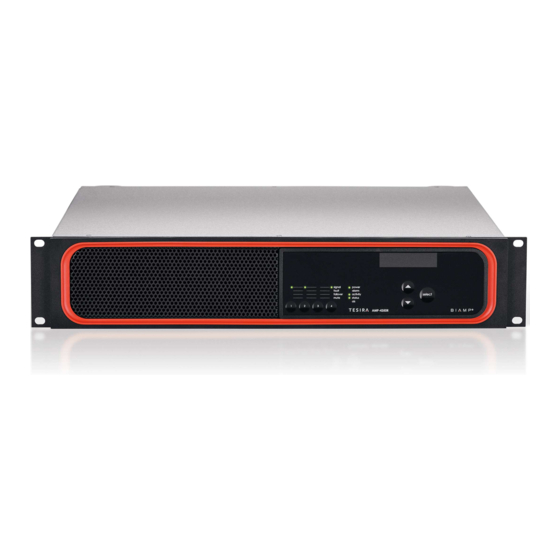

- Page 2 All Tesira® Amplifiers are AVB/TSN enabled, digital networked, multi-channel amplifiers. Models include the AMP-4175R, AMP-4300R CV, AMP-4350R and AMP-8175R. The Tesira Amplifiers function as an integrated part of a Tesira audio system that is configured through the Tesira configuration software. The amplifiers serve as a dedicated endpoint making installations easier to design, support and maintain.
- Page 3 Tesira Amplifiers Setup and Installation Setup and Use The Tesira software provides an intuitive interface for configuration of the Tesira amplifier devices. The information supplied by this manual relates to physical connections and assignment. For more details on software setup, please consult the Tesira Help File.
- Page 4 Tesira Amplifiers Front The LED indicators on the front panel of the amplifier provide information and operational status of the amplifier and its associated output channels. LED layout and channel meters vary between amplifier models. LED’s are grouped to show chassis status indication and amplifier channel status indication.
-
Page 5: Network Connection
Provides for connection of the appropriate power cord. Each amplifier uses a switch mode power supply that has an operating voltage of 100-240V at 50/60 Hz. The Tesira AMP-8175R, AMP-4350R and AMP- 4300R CV Current draw is 3 – 2.2 Amps. The Tesira AMP-4175R Current draw is 2 – 2 Amps. CAUTION Do not remove or defeat the ground prong on the power cord, as this will constitute a shock hazard. - Page 6 Tesira Amplifiers Rear Amplifier Output Connections CAUTION All Speaker wiring connections should be made by qualified personnel and with the amplifier power removed. The 100V output requires Class 3 wiring. Please refer to a qualified electrician or other qualified person according to local codes.
