Product Information Sources This guide covers installing and setting up the amplifier. • Please see the product datasheets on Biamp.com for each Voltera amplifier’s • specifications. If you are installing the amplifier in an AV system managed by a Tesira DSP device, •...

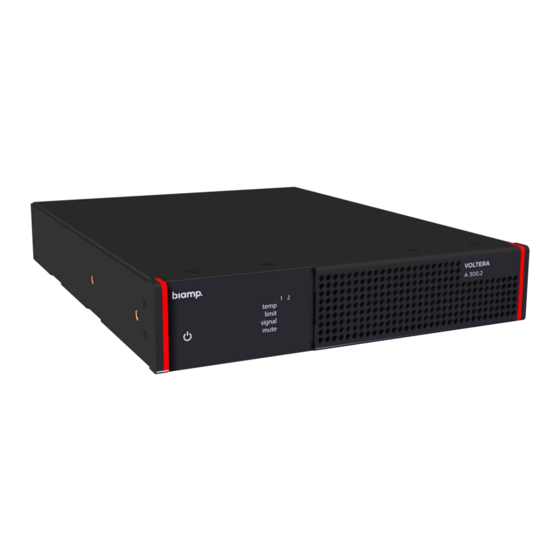

Installation Considerations • Install the device away from heat sources, such as vents, radiators, heat registers, and stoves. • Do not exceed the maximum ambient operating temperature of 32° - 104° F (0° - 40° C). • Avoid installing near water or steam. Device Layout Front Panel Power indicator...
Page 3
Front Panel LED Indicators Power Indicator The amplifier is off. Green The amplifier is powered. Yellow The amplifier is asleep. Channel Status Indicators Green Yellow Channel within safe temp Fan speed medium Fan speed max temperature limits Channel within safe Channel limiting Channel limit...
Page 4
A 300.2 and A 600.2 Back Panels The amplifiers share an identical panel layout. Channel 1 gain control 2, 3-pin input ports Attenuator and high pass filter switches Channel 2 gain control Factory config port (not for use) Logic input / output connectors 2 speaker output ports Voltage control input A 300.4 and A 600.4 Back Panels...
Installation and Setup Overview Installation Perform the procedures described in the Installation chapter to install the amplifier on a flat horizontal surface or in an AV equipment rack. ✓ Install in a location. • Freestanding, page 7 • Surface mount, page 8 •...
Installation Install Option: Freestanding Place the amplifier on a flat horizontal surface. 1. Verify the surface is flat and level, and that the amplifier's power cord and connections will be safely out of the way to avoid snagging, yanking, or crushing. 2.
Page 8
Install Option: Surface Mount Secure the amplifier to a flat surface using the surface mount brackets. 8x - M3x5mm screws 1. Verify the surface is flat and level, and that the amplifier’s power cord and connections will be safely out of the way to avoid snagging, yanking, or crushing. 2.
Page 9
Install Option: A single amplifier in a 19-inch AV rack Install a single amplifier by itself in an AV equipment rack using the included single-device mounting bracket and the device mounting bracket. 4x – M4 x 8mm screws 1. Verify the installation rack space meets the temperature and spacing requirements in the Installation Considerations section on page 2.
Page 10
Option: Dual devices in a 19-inch rack Install two amplifiers side by side in a standard AV rack using the device mounting bracket included with each unit and two of the included surface mounting brackets. 1. Verify the installation rack space meets the temperature and spacing requirements in the Installation Considerations section on page 2.
Page 11
4x – M4 x 8mm screws 4. Fasten the included device mounting bracket to the left side of the amplifier it came with. Then fasten the included device mounting bracket to the right side of the second amplifier. 5. Place the linked amplifiers in the rack and secure them in place. Advance to the Connect the Amplifier procedure on page 12.
Page 12
Connect the Amplifier and Set the Hardware Settings Connect the amplifier to the input and output devices in the AV systems as well as any voltage control and input / output logic. See the descriptions in this section for the port functions. Adjust the mode settings and turn on the high pass filter if required for your system.
Page 13
Set the Output Mode and High Pass Filter Switches: Each channel has 2 mode switches. These can be positioned in 4 combinations activating one of 4 output modes. HPF switch is placed in either the ON or Off position. Switch position diagram Mode switches (M) The 4 modes modify the gain structure and limiter thresholds.
Page 14
Connect the Speakers to the Output Ports Keep the following points in mind. • To minimize power loss, use a speaker cable of appropriate gauge for the load impedance. • Use the supplied euroblock plugs to connect loudspeaker outputs. • If stranded speaker wire is used, be sure to incorporate all strands into the connector, as stray strands can short to the adjacent terminal or chassis.
Page 15
Optional: Connecting the Logic Inputs and Outputs (I/Os) Pitch: 3.5mm Pin Functions Note – the pin functions are factory set. • Pin 1 Input: Mute all o Active low • Pin 2 Output: Health output o Fault exists if low •...
Page 16
Plug in the Amplifier Always use the detachable power cord that came with the amplifier or an identical replacement. 1. Attach the power cord to the power receptacle on the back of the amplifier. 2. Plug the connected power cord into the wall power outlet. Voltera Amplifiers Installation and Setup Guide...
Design software. It is typically embedded on digital Tesira system devices and can also be found online. Tesira Help System (Online) • Support Articles Technical support articles for Tesira Software can be found on Biamp’s Cornerstone knowledgebase support site. • Click Here: Tesira - Biamp Cornerstone Training Training courses for Tesira products and system core concepts are available online.
Page 18
Configuring the Amplifier in a Tesira System For Tesira-DSP-managed systems only. See the Tesira Help system described on the previous page for help configuring the speaker in the AV system. 1. Connect a computer with the Tesira software to the controller device for the AV system the amplifier is now installed in.
Page 19
Support@biamp.com 9300 SW Gemini Drive Beaverton, OR 978008 USA Warranty: biamp.com/legal/warranty-information Safety & Compliance: biamp.com/compliance July 27, 2023...
