AMP-450BP PoE+ Amplifier
Installation & Operation Guide

Product Description

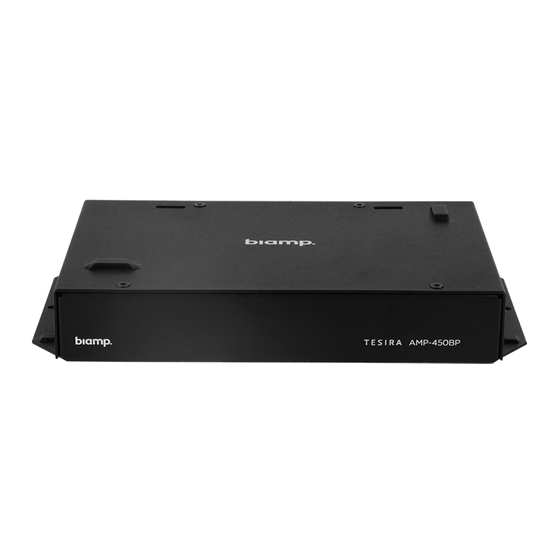

The AMP-450BP is a four-channel PoE+ (IEEE 802.3at Class 4, 30W)
conferencing amplifier for use in Tesira
spaces, the amplifier is designed to be mounted directly to the back of a
Desono™ C-IC6 loudspeaker, minimizing cabling requirements.
Each AMP-450BP comes with an optional enclosure to protect electrical
connections and comply with typical code requirements for above-ceiling
installations. The AMP-450BP includes an internal limiter, and is capable of
providing 3 watts of continuous power to all four channels.
The Tesira AMP-450BP is also capable of operating in a burst mode to
handle peak signals, providing up to 50 watts (4Ω load) or 30 watts (8Ω
load) per channel. The output channels are software configurable, including
selectable power versus channel count.
The amplifier serves as a dedicated endpoint in a Tesira system, making
installations easier to design, support, and maintain. The AMP-450BP is ideal
®
for TesiraFORTÉ
-equipped conference rooms or other applications where
sound reinforcement is needed.
page 1
®
systems. Suitable for air handling
Installation and Operation Guide

Setup and Use

The Tesira software provides an intuitive interface for setup and programming
of the AMP-450BP. The information supplied by this manual relates to
physical connections and device setup. For more details on software setup,
please consult the
Tesira Help
File.

Installation

Install away from heat sources, such as vents, radiators, heat registers
and stoves. Also avoid installing near water or steam. The conferencing
loudspeaker has a secondary support point via chain or wire for connecting
to the building structure. Do not exceed the maximum ambient operating
temperature of 32° - 104° F (0° - 40° C).

Features

Four channels; 3 watts of continuous power per channel
Burst mode to handle peak signals in accordance with ANSI/CTA-
2006-B; supports up to 50 watts (4Ω load) or 30 watts (8Ω load) per
channel
Powered by PoE+ (IEEE 802.3at Class 4, 30W)
Class D amplifier topology
Fan-less operation
Includes internal limiter function
Software-selectable power versus channel count
Evaluated to the requirements of UL 2043 and is suitable for use in air
handling spaces
LED indicators for power and amplifier status
Configurable via Tesira software
AMP-450BP
