Page 1: Power Amplifier
CPA 130 Power Amplifier Operation Manual Biamp Systems | 9300 S.W. Gemini Drive | Beaverton, OR | 97008 | USA | +1.503.641.7287 | www.biamp.com... -
Page 2: Table Of Contents
CPA130 TABLE OF CONTENTS Safety Information pgs. 2~5 Front Panel pg. 6 Rear Panel pg. 7 Precautions pg. 8 Internal Modifications pg. 9 Specifications pg. 10 Block Diagram pg. 11 Warranty pg. 12... - Page 3 CPA130 INTRODUCTION CPA130 dual channel power amplifiers are designed to supply reliable service in permanent installations. CPA130 amplifiers have complete short-circuit and thermal protection with automatic reset. Barrier strip input and 5-way binding post output connectors provide trouble free, dependable connections. CPA130 amplifiers are passively cooled for quiet operation, without fan noise or filter maintenance.
-
Page 4: Safety Information Pgs. 2~5
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus Keep these instructions. (including amplifiers) that produce heat. Heed all warnings. Do not defeat the safety purpose of the polarized or grounding-type plug. -
Page 8: Front Panel

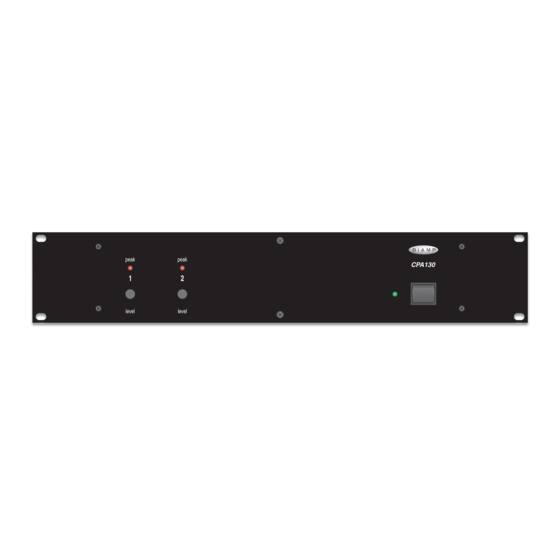

FRONT PANEL Channel Peak Indicators: These red LED indicators will light when their respective channel amplifiers have reached maximum output. To avoid clipping distortion, and to protect speakers from being damaged, reduce the input level until the Peak Indicator no longer lights. Channel Level Control Mounting Holes: These holes are provided for optional front panel mounting of the channel level controls (see Internal Modifications: Front Panel Level Controls on page 9). -
Page 9: Rear Panel
Channel Level Controls for the desired output volume from the CPA130. In mono-bridge mode, Channel 1 becomes the active input and Channel 2 input is inactive. As an option, the Channel Level Controls may be mounted to the CPA130 front panel (see Internal Modifications: Front Panel Level Controls on page 9). -
Page 10: Precautions
The CPA130 is designed to be installed in a standard 19" equipment rack. The amplifiers have cooling vents on both the top and bottom panels. Do not block the cooling vents in any way. When mounting the CPA130 in a rack, leave at least one rack-space above and below the amplifier to allow proper air flow. -
Page 11: Internal Modifications
This eliminates excessive current at low frequencies due to speaker transformer inductance, which can cause distortion or damage to the amplifier. If the CPA130 is used in mono-bridge mode to drive a distributed speaker system, it is only necessary for the Channel 1 High-Pass Filter to be enabled. -
Page 12: Specifications
SPECIFICATIONS Maximum Power Output (@ 2kHz): both channels driven into 4 ohms 65 watts/channel both channels driven into 8 ohms 40 watts/channel mono bridge into 8 ohms 130 watts Signal-to-Noise Ratio (20Hz~20kHz): rated power into 4 ohms > 96dB Total Harmonic Distortion: 20Hz~20kHz @ rated power <... -
Page 13: Block Diagram
BLOCK DIAGRAM CPA130 Block Diagram Peak Signal Channel 1 Detect Level Channnel 1 Channel 1 input Output Balanced Common input Stage High Pass Filter Driver Amplifier Power Amplifier 180Hz, 18dB/octave Peak Signal Detect Mono Channel 2 Bridge Level Channel 2... -
Page 14: Warranty
WARRANTY BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL 1. BIAMP Systems warrants to the original purchaser of new THIS WARRANTY IS IN LIEU OF ALL OTHER products that the product will be free from defects in material WARRANTIES, EXPRESS OR IMPLIED.
