Phone - Rath Multi-Line Command Center Installation & Operation Manual

Option 2
5-16 Line System:
• On top of each RJ45 interface there is a label indicating connection:
SLT is the port used for connecting elevator phones
DKP is the port used for connecting Command Center phone(s)
TWT is the port used for outside Telco lines
• Plug the supplied RJ45 pigtail cables into the RJ45 interface connections following the wiring chart and pin
out color scheme below.
• Refer to the top of the cards to see what type of RJ45 interface and number of extensions
• The same pin-out color scheme should be used for the primary card and for all additional cards. The
system uses T568-A for pin-out wiring.
• Each card installed in 5-16 line units will have 3 RJ45 interface connections
• The first card installed will always be:
• Interface 1 (01-04): connection for up to 4 phones (SLT)
• Interface 2 (05-06): connection for up to 2 Telco lines (TWT)
• Interface 3 (07-08): connection for up to 2 Command Center Phones (DKP)
• Each additional card is used for connecting phones and phone lines:
• Interface 1 (01-04): connection for up to 4 phones (SLT)
• Interface 2 (05-06): connection for up to 2 Telco lines (TWT)
• Interface 3 (07-08): connection for up to 2 Telco lines (TWT)

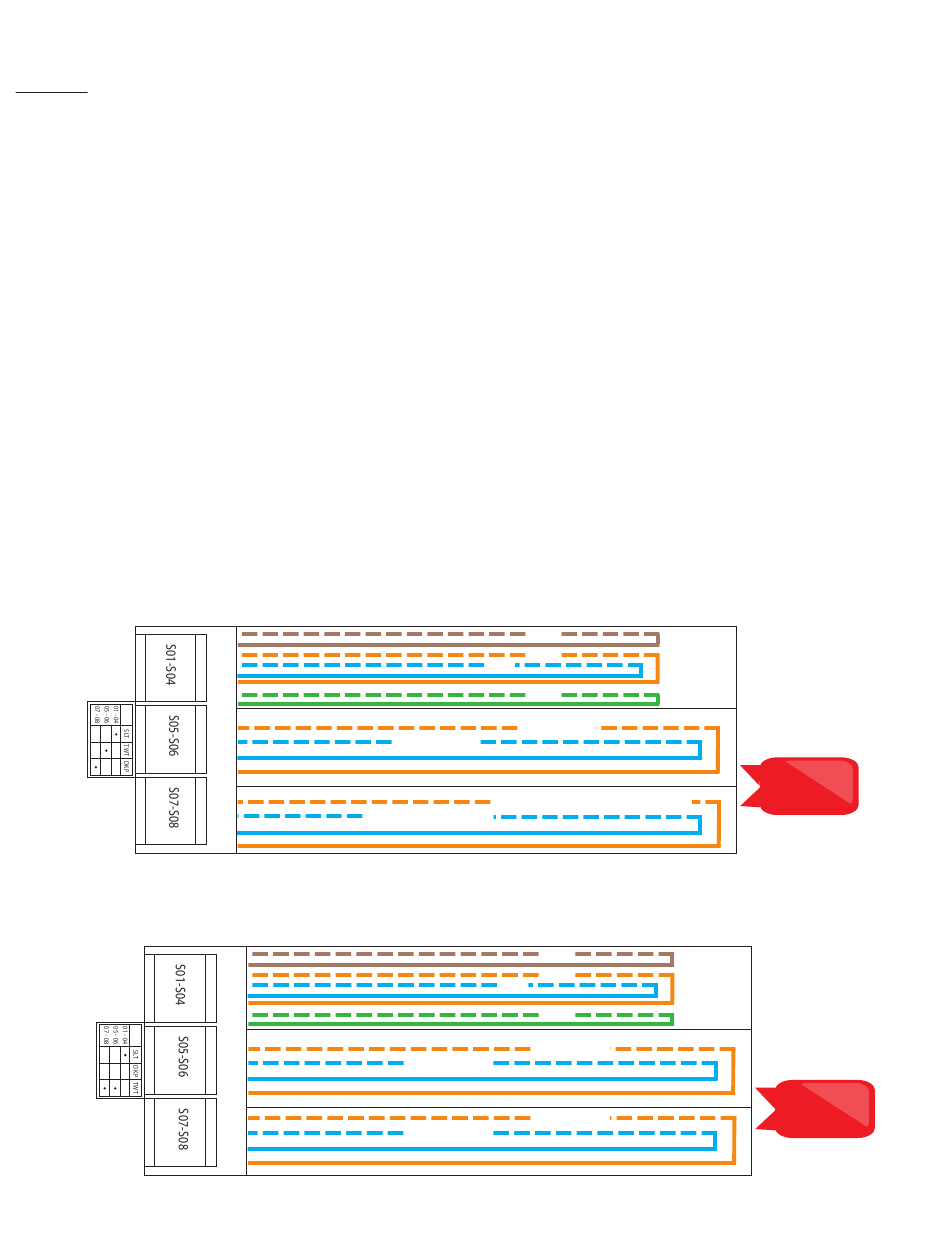

Card 1 Example
Card 2 Example
2004
2002
2001
2003
TELCO LINE 2
TELCO LINE 1
SECONDARY COMMAND CENTER
COMMAND CENTER 1
2008
2006
2005
2007
TELCO LINE 4
TELCO LINE 3
TELCO LINE 6
TELCO LINE 5

PHONE 4

PHONE 2
PHONE 1
PHONE 3
Note: Do not use
the green and
brown pairs
PHONE 8
PHONE 6
PHONE 5
PHONE 7
Note: Do not use
the green and
brown pairs
Page 6
