MVI71-DNPSNET ♦ PLC Platform
Distributed Network Protocol Interface Module

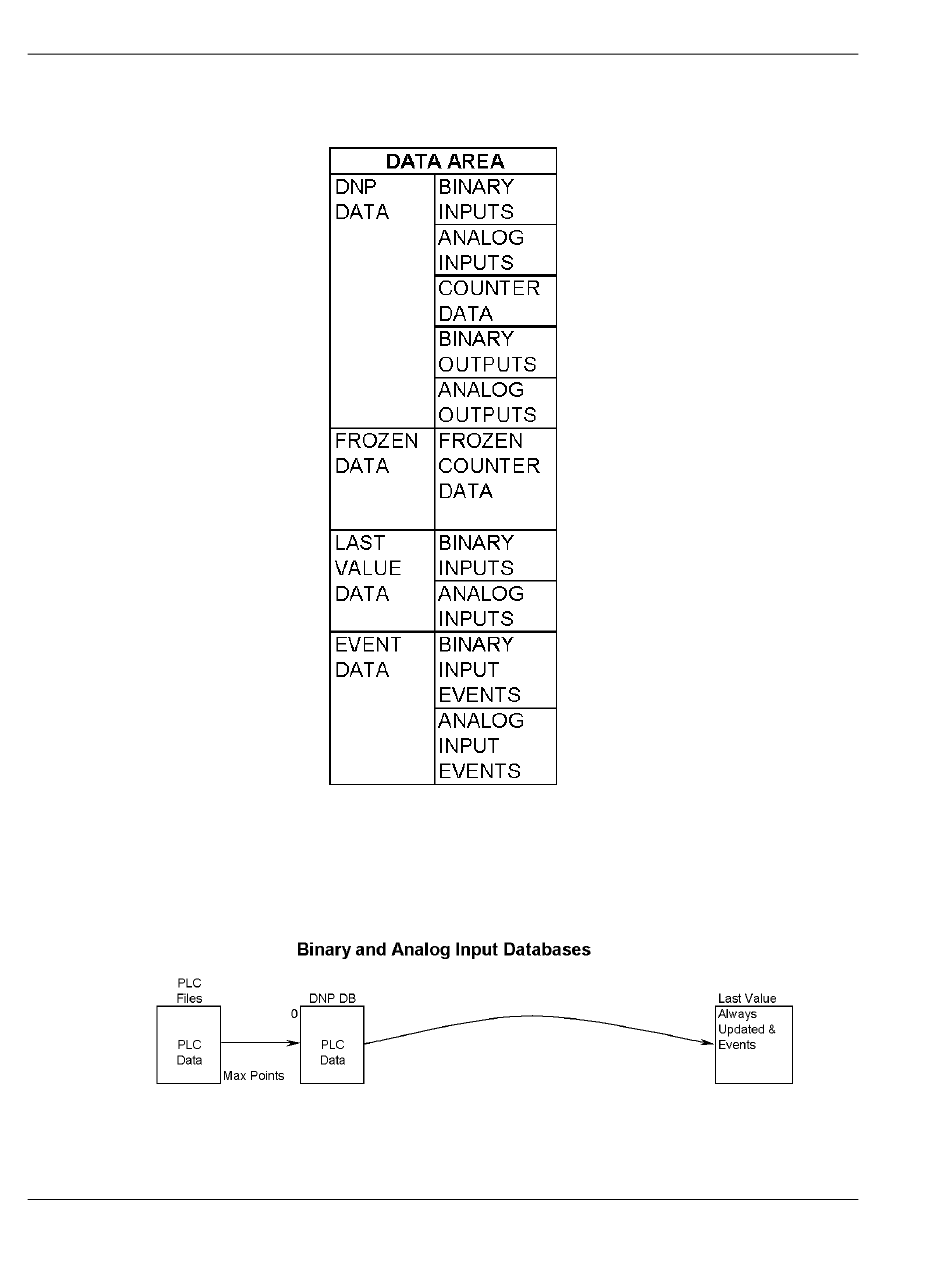

The following illustration shows the databases maintained by the module for the
DNP data.
The module is responsible for maintaining the databases using data acquired
from the PLC and DNP master attached network port.
The following illustration shows the interaction of the binary and analog input
points with the databases.
Page 78 of 100
Reference
ProSoft Technology, Inc.
September 22, 2008
