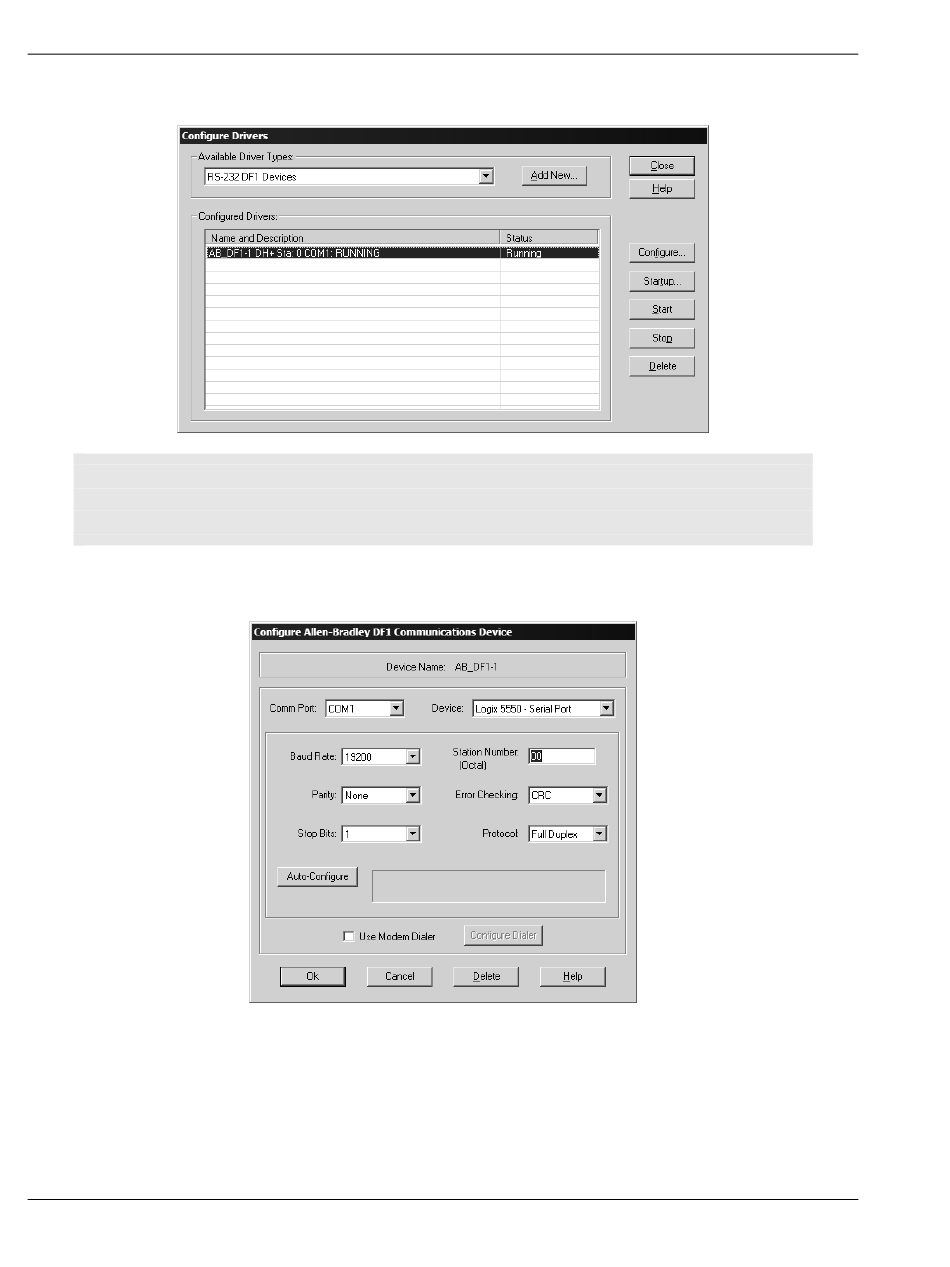

This action opens the Configure Drivers dialog box.
Note: If the list of configured drivers is blank, you must first choose and configure a driver from the
Available Driver Types list. The recommended driver type to choose for serial communication with
the processor is "RS-232 DF1 Devices".
Click to select the driver, and then click Configure. This action opens the
3
Configure Allen-Bradley DF1 Communications Device dialog box.
Click the Auto-Configure button. RSLinx will attempt to configure your serial
4
port to work with the selected driver.
When you see the message "Auto Configuration Successful", click the OK
5
button to dismiss the dialog box.
