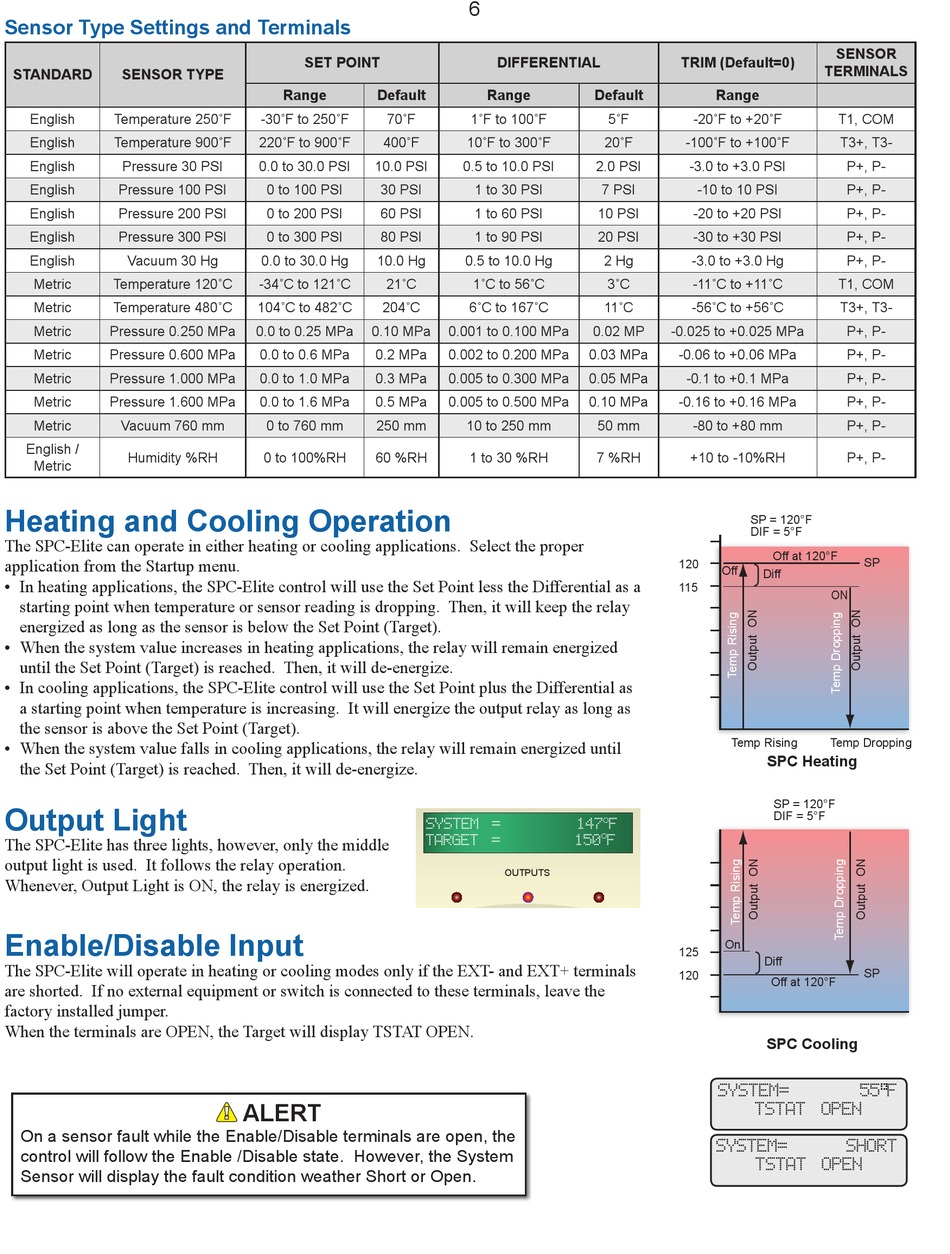

Sensor Type Settings and Terminals
STANDARD SENSOR TYPE
English Temperature 250˚F
English Temperature 900˚F
English Pressure 30 PSI
English Pressure 100 PSI
English Pressure 200 PSI
English Pressure 300 PSI
English Vacuum 30 Hg
Metric Temperature 120˚C
Metric Temperature 480˚C
Metric Pressure 0.250 MPa
Metric Pressure 0.600 MPa
Metric Pressure 1.000 MPa
Metric Pressure 1.600 MPa
Metric Vacuum 760 mm
English /
Humidity %RH
Metric
Heating and Cooling Operation
The SPC-Elite can operate in either heating or cooling applications. Select the proper
application from the Startup menu.
• I n heating applications, the SPC-Elite control will use the Set Point less the Differential as a
starting point when temperature or sensor reading is dropping. Then, it will keep the relay
energized as long as the sensor is below the Set Point (Target).
• W hen the system value increases in heating applications, the relay will remain energized
until the Set Point (Target) is reached. Then, it will de-energize.
• I n cooling applications, the SPC-Elite control will use the Set Point plus the Differential as
a starting point when temperature is increasing. It will energize the output relay as long as
the sensor is above the Set Point (Target).
• W hen the system value falls in cooling applications, the relay will remain energized until
the Set Point (Target) is reached. Then, it will de-energize.
Output Light
The SPC-Elite has three lights, however, only the middle
output light is used. It follows the relay operation.
Whenever, Output Light is ON, the relay is energized.
Enable/Disable Input
The SPC-Elite will operate in heating or cooling modes only if the EXT- and EXT+ terminals
are shorted. If no external equipment or switch is connected to these terminals, leave the
factory installed jumper.
When the terminals are OPEN, the Target will display TSTAT OPEN.
On a sensor fault while the Enable/Disable terminals are open, the
control will follow the Enable /Disable state. However, the System
Sensor will display the fault condition weather Short or Open.
SET POINT
Range Default
-30˚F to 250˚F 70˚F
220˚F to 900˚F 400˚F
0.0 to 30.0 PSI 10.0 PSI
0 to 100 PSI 30 PSI
0 to 200 PSI 60 PSI
0 to 300 PSI 80 PSI
0.0 to 30.0 Hg 10.0 Hg
-34˚C to 121˚C 21˚C
104˚C to 482˚C 204˚C
0.0 to 0.25 MPa 0.10 MPa
0.0 to 0.6 MPa 0.2 MPa
0.0 to 1.0 MPa 0.3 MPa
0.0 to 1.6 MPa 0.5 MPa
0 to 760 mm 250 mm
0 to 100%RH 60 %RH
ALERT
6
DIFFERENTIAL
Range Default
1˚F to 100˚F
10˚F to 300˚F
0.5 to 10.0 PSI 2.0 PSI
1 to 30 PSI 7 PSI
1 to 60 PSI 10 PSI
1 to 90 PSI 20 PSI
0.5 to 10.0 Hg 2 Hg
1˚C to 56˚C
6˚C to 167˚C
0.001 to 0.100 MPa 0.02 MP
0.002 to 0.200 MPa 0.03 MPa
0.005 to 0.300 MPa 0.05 MPa
0.005 to 0.500 MPa 0.10 MPa
10 to 250 mm 50 mm
1 to 30 %RH 7 %RH
®
o
SYSTEM = 147
o
TARGET = 150
Decrease Increase OUTPUTS System
SET
TRIM (Default=0)
Range
5˚F -20˚F to +20˚F
20˚F -100˚F to +100˚F
-3.0 to +3.0 PSI
-10 to 10 PSI
-20 to +20 PSI
-30 to +30 PSI
-3.0 to +3.0 Hg
3˚C -11˚C to +11˚C
11˚C -56˚C to +56˚C
-0.025 to +0.025 MPa
-0.06 to +0.06 MPa
-0.1 to +0.1 MPa
-0.16 to +0.16 MPa
-80 to +80 mm
+10 to -10%RH
SP = 120°F
DIF = 5°F
Off at 120°F
120
Off
Diff
115
Temp Rising
SPC Heating
SP = 120°F
DIF = 5°F
F
F
On
125
Diff
120
Off at 120°F
SPC Cooling
SYSTEM=
TSTAT OPEN
SYSTEM=
TSTAT OPEN
SENSOR
TERMINALS
T1, COM
T3+, T3-
P+, P-
P+, P-
P+, P-
P+, P-
P+, P-
T1, COM
T3+, T3-
P+, P-
P+, P-
P+, P-
P+, P-
P+, P-
P+, P-
SP
ON
Temp Dropping
SP
55 F
SHORT
