- Page 1 MANUAL ENGLISH Star Dream 6x3m 128 LED RGB Ordercode: 40429 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Star Dream 6x3m 128 LED RGB Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Overview .................................. -
Page 3: Warning
Star Dream 6x3m 128 LED RGB Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Star Dream 6x3m 128 LED RGB ● Repairs, servicing and electric connection must be carried out by a qualified technician. ● WARRANTY: Till one year after date of purchase. Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. - Page 6 Star Dream 6x3m 128 LED RGB Star Dream Curtain One Star Dream Multiple Star Dreams – Horizontal Installation Ordercode: 40429...
-
Page 7: Connection With The Mains
Star Dream 6x3m 128 LED RGB Multiple Star Dreams – Vertical Installation The Star Dream can be mounted to any kind of truss with hook and loop fasteners (Velcro) and/or shock cords. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 8: Return Procedure
Star Dream 6x3m 128 LED RGB Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device
Star Dream 6x3m 128 LED RGB Description of the device Features The Star Dream 6x3m 128 LED RGB is a star curtain system with high output and great effects. Curtain ● Light source: 128 x 5-mm RGB LED ● Data connector: 8 x curtain connectors ●... -
Page 10: Overview
Star Dream 6x3m 128 LED RGB Overview Fig. 01 Ordercode: 40429... -
Page 11: Controller
07) Ground/earth connection Installation Remove all packing materials from the Star Dream 6x3m 128 LED RGB. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 12: Control Modes
Star Dream 6x3m 128 LED RGB Control Modes There are 5 modes: ● Static colors ● Built-in programs ● Sound-controlled ● Master/Slave ● DMX-512 (7CH, 28CH) One Star Dream (Static colors and Built-in programs) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 13: Multiple Star Dreams (Dmx Control)
Star Dream 6x3m 128 LED RGB Multiple Star Dreams (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 14: Fixture Linking
Star Dream 6x3m 128 LED RGB Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel

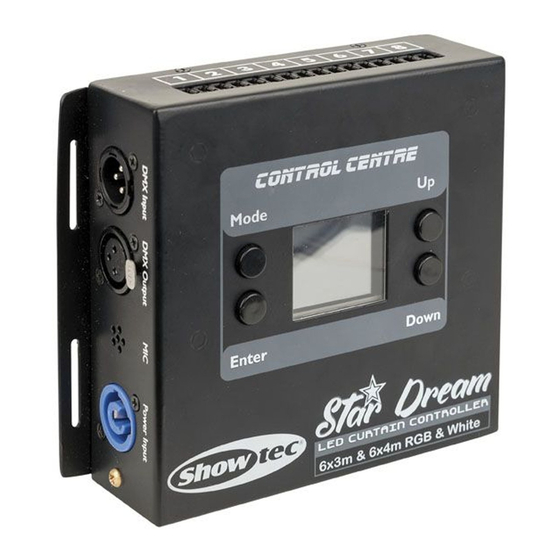

Star Dream 6x3m 128 LED RGB The Star Dream can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display UP button C) DOWN button D) ENTER button MODE button Fig. -
Page 16: Menu Overview
Star Dream 6x3m 128 LED RGB Menu Overview Ordercode: 40429... -
Page 17: Main Menu Options
Star Dream 6x3m 128 LED RGB Main Menu Options DMX settings Static colors Built-in programs Sound-controlled programs Advanced settings System information Upon start-up, the device will show its current color mode (RGB or White) as well as the currently active DMX channel mode. -
Page 18: Dmx Settings
Star Dream 6x3m 128 LED RGB 1. DMX Settings In this menu you can set the DMX address and choose the desired DMX channel mode. 01) While in the main menu, press the UP/DOWN buttons, until the display shows 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to select one of the 2 options: ●... -
Page 19: Static Colors
Star Dream 6x3m 128 LED RGB 2. Static Colors In this menu you can set the static colors. In order to be able to operate the Star Dream in this mode, disconnect the DMX cable from the DMX input (03). -
Page 20: Built-In Programs
Star Dream 6x3m 128 LED RGB 3. Built-in Programs In this menu you can run the built-in programs. In order to be able to operate the Star Dream in this mode, disconnect the DMX cable from the DMX input (03). -
Page 21: Sound-Controlled Programs
Star Dream 6x3m 128 LED RGB 4. Sound-controlled Programs In this menu you can run the sound-controlled programs. In order to be able to operate the Star Dream in this mode, disconnect the DMX cable from the DMX input (03). -
Page 22: Advanced Settings
Star Dream 6x3m 128 LED RGB 5. Advanced Settings In this menu you can adjust the device’s settings. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to select one of the 6 options: ●... -
Page 23: Display
Star Dream 6x3m 128 LED RGB 5.2. Display In this menu you can set the display settings. 01) Press the UP/DOWN buttons to select one of the 2 options: ● AUTO OFF: If no button is pressed, the display will turn off after 10 seconds. -
Page 24: Factory Reset
Star Dream 6x3m 128 LED RGB 5.5. Factory Reset In this menu you can restore the default factory settings. 01) Press the UP/DOWN buttons to select YES or NO. 02) Press the ENTER button to confirm. If you have chosen YES, the default factory settings will be restored. -
Page 25: System Information
Star Dream 6x3m 128 LED RGB 6. System Information In this menu you can view the current software version, the Boot Time (time since last start-up) and Run Time (total operation time). 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 26: Channels
Star Dream 6x3m 128 LED RGB Channel 4 – Program speed CH3 must be set between 130–239 0–255 Program speed, from slow to fast Channel 4 – Sound sensitivity CH3 must be set between 240–249 0–255 Sound sensitivity, from OFF to high sound sensitivity Channel 5 –... - Page 27 Star Dream 6x3m 128 LED RGB Channel 4 – Sound sensitivity CH3 must be set between 240–249 0–255 Sound sensitivity, from OFF to high sound sensitivity Channel 5 – Red, LED group 1 CH1 must be open; CH3 must be set between 0–49 0–255...
-
Page 28: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Star Dream 6x3m 128 LED RGB requires almost no maintenance. However, you should keep the controller clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. - Page 29 Star Dream 6x3m 128 LED RGB Problem Probable cause(s) Solution ● Check if power is switched on and cables are plugged in. No power to the fixture. One or more fixtures do not function at all. ● Return the device to your Internal fuse blown.
-
Page 30: Product Specifications
Star Dream 6x3m 128 LED RGB Product Specifications Model: Showtec Star Dream 6x3m 128 LED RGB Input voltage: 100–240V AC, 50/60 Hz Power consumption: 55 W DMX linking: 30 pcs Dimensions (curtain): 6000 x 3000 mm (LxW) Weight (curtain): 11,5 kg... -
Page 31: Dimensions
Star Dream 6x3m 128 LED RGB Dimensions Ordercode: 40429... - Page 32 ©2019 Showtec...
