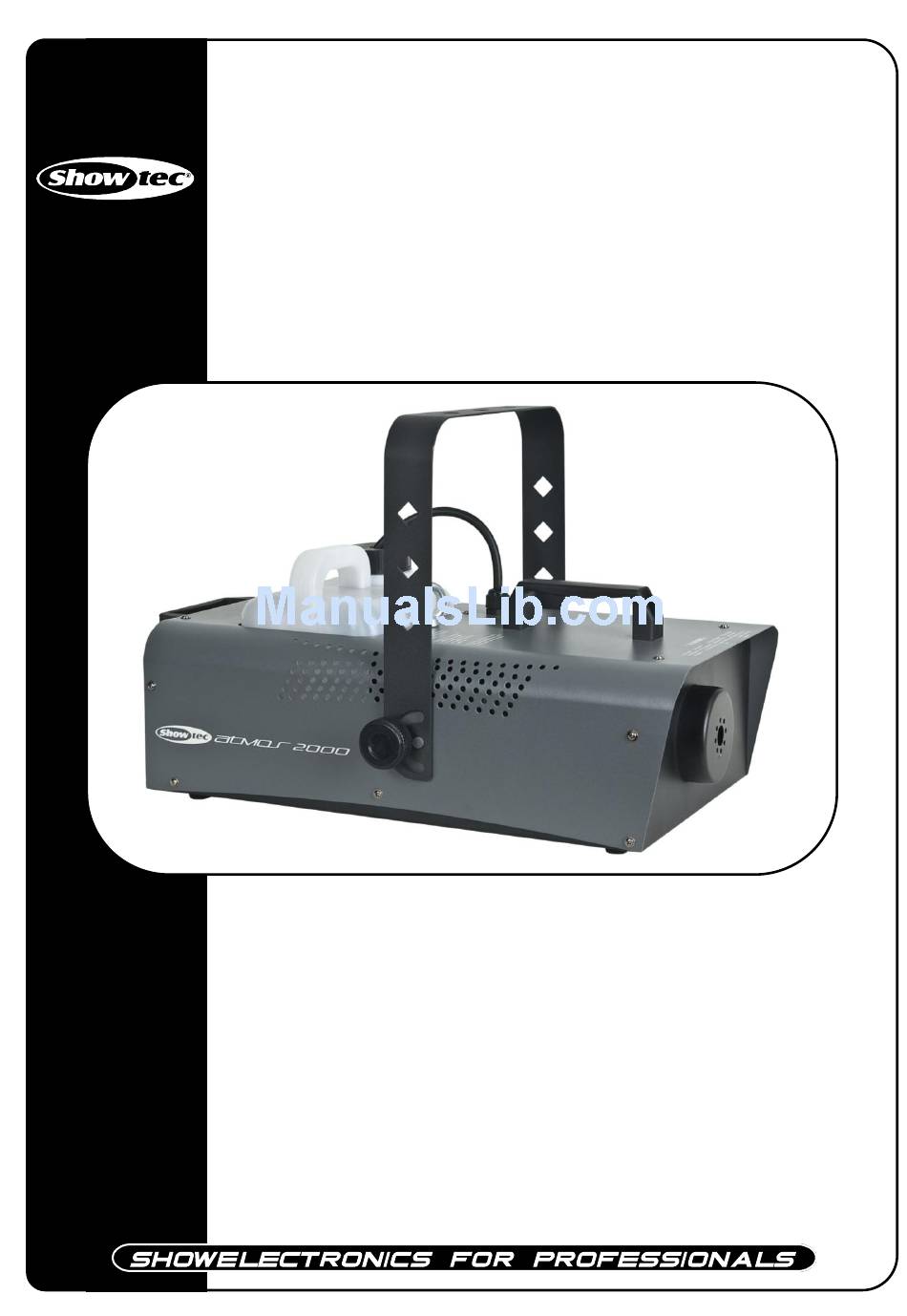

- Page 1 Atmos 2000 ORDERCODE 60873 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Atmos 2000 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Atmos 2000 Product Guide ™ Warning.................…...……………..…………………………….…………. Safety-instructions………………………………………………………………………………………………………. Operating Determinations.…………………………………………………………………………………………… Rigging.…………………………………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description..…................……….……………………………………………… Features………………………………………………………………………………….……………………………….. Overview…………………………………………………………………………………………………..……………... Backside…………………………………………………...…...….……………….…………………...….………….… Installation................…...…………………………………….……………… Installing the fogger............………………………………………..……………….… Set Up and Operation..............……..……………………………….…………… Control Modes…………………………………………………………………………………………………….…….. Wireless remote control…………………………………………………………..…………………………….… Wired Remote control………………………………………………………………………………….…………. Multiple Atmos foggers (DMX control)……………………………………………………..……………………... -
Page 4: Warning
Your shipment includes: • Showtec Atmos 2000 fogger with powercable 1,25m • Included: Remote Control; Cable length 5m. • Included: Wireless Remote Control •... - Page 5 If your Showtec Fog Machine fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
The residence time of persons in smoke-filled rooms with less than 15 m of sight must never exceed 5 minutes. The fog vapour at point of release is under pressure and is extremely hot. The output nozzle becomes very hot during operation (300 degrees C). Keep flammable materials at least 50 cm away from the nozzle. -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description

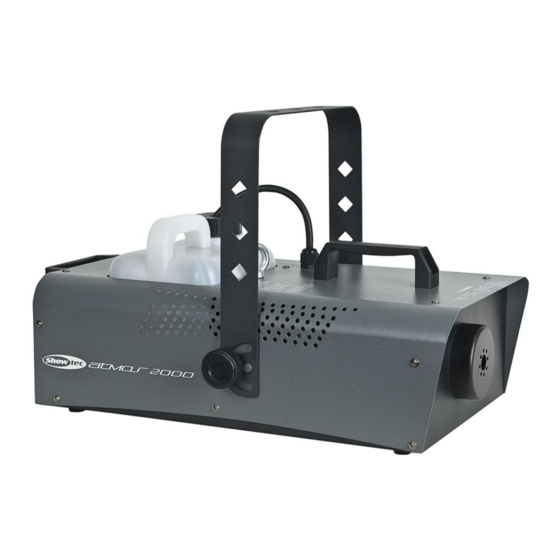

Description of the device Features Atmos 2000 fogger is a versatile and powerful fogger from Showtec. • 2000 W Heater • Warm-up time approx. 6 min. • Fog output 40000cu.ft/min. • Tank Capacity: 3,2 L. • Fluid Consumption: 2 min / 1 liter •... -
Page 9: Backside
Backside 10 11 12 13 Fig. 2 4) 3,2 L Liquid tank 10) 3-pin DMX In 5) Wired Remote control input 11) 3-pin DMX Out 6) ON/OFF 12) DMX Dip Switches 7) Fuse 10A / 250V 13) DMX LED, blinks when DMX signal is present 8) AC 220~240V 9) 5-pin Wireless remote control input;... -
Page 10: Set Up And Operation
3) DMX512 (1 Channel) Wireless remote control 1. You can use the Atmos 2000 with a wireless remote control. 2. Be sure to plug the receiver into the connector (9) on the backside of the fogger. 3. Just press one of the two buttons to start fogging, both buttons have the same function. -
Page 11: Multiple Atmos Foggers (Dmx Control)
Multiple Atmos foggers (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). 3. Use a 3-p XLR cable to connect the Atmos foggers and other devices. 4. -
Page 12: Dipswitch Setting For Dmx Mode
Addresses on the controller are set by flipping the appropriate DMX dip switches #1 - #9. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec Atmos fogger, which has 1 channel is as follow: Example Atmos fogger Address Value DMX Dip Switches "ON"... -
Page 14: Fixture Linking
From 0% - 100% volume output Maintenance The Atmos 2000 fogger requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 15: Performance Notes
5. If you are unable to determine the cause of the problem, do not simply continue pushing the remote button, as this may damage the unit. 6. Return the machine to your Showtec dealer. No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. - Page 16 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 17: Product Specifications
Product Specification Model: Showtec Atmos 2000 Fogger Voltage: AC 230V-50Hz (CE) Power consumption: 2000W(230V) 2000 W Heater Warm-up time approx. 6 min. Fog output 40000cu.ft/min. Tank Capacity: 3,2 L. Fluid Consumption: 2 min / 1 liter DMX-512 Control DMX-512: 1 Channel...
