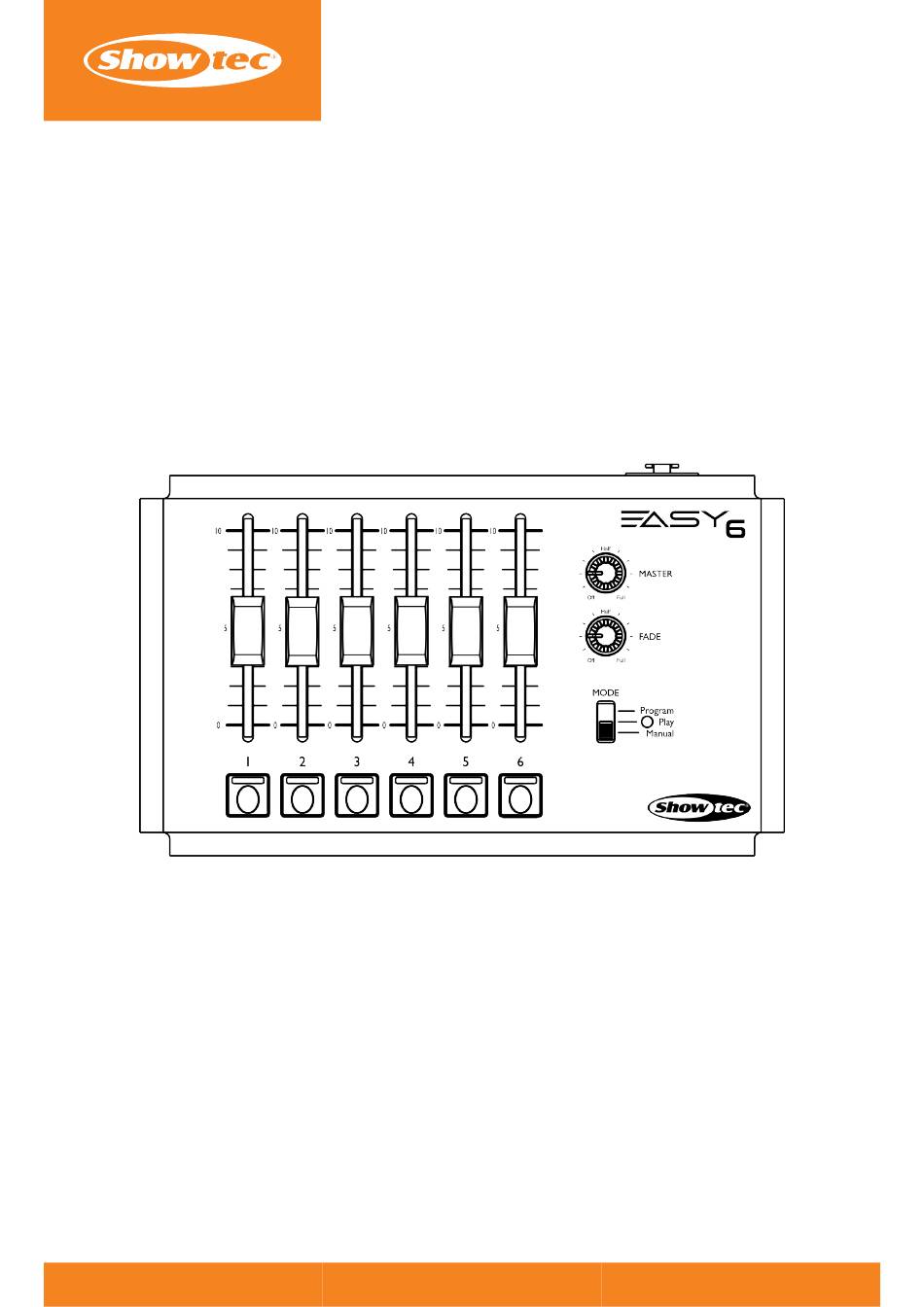

- Page 1 USER MANUAL ENGLISH V1.0 Easy 6 3-pin DMX Product code: 50404...
- Page 2 Easy 6 3-pin DMX Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Easy 6 3-pin DMX Table of contents 1. Introduction ............................1.1. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Showtec Easy 6 3-pin DMX • • USB-C cable with an AC/DC adapter and 4 interchangeable plugs (Europe, UK/JP, AUS/NZ, US) •... -
Page 5: Symbols And Signal Words
Easy 6 3-pin DMX 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 6: Safety
Easy 6 3-pin DMX Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions DANGER Danger for children... -
Page 7: Requirements For The User
Easy 6 3-pin DMX Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. 2.2. -
Page 8: Description Of The Device
Description of the Device The Showtec Easy 6 3-pin DMX is a compact, 6-channel DMX controller with 6 faders, 6 push buttons with integrated LED indicators, a mode switch, a rotary master knob and a rotary fade knob. The device has three modes: program, play and manual. -
Page 9: Side View
Easy 6 3-pin DMX 3.4. Side View Figure 5 8 DIP switches Product code: 50404... -
Page 10: Product Specifications
Easy 6 3-pin DMX 3.5. Product Specifications Model: Easy 6 3-pin DMX Battery: Battery Type AA Battery Voltage 1.5 V Runtime @Full 20 h Runtime Average 40 h Control and Programming: Control Mode DMX DMX Channels 6 Faders 6 Memories 6 Playback Buttons 6 ... -
Page 11: Dimensions
Easy 6 3-pin DMX 3.7. Dimensions Product code: 50404... -
Page 12: Installation
Easy 6 3-pin DMX Installation 4.1. Installation on a Wall/Ceiling You can install the device on a wall. To install the device on a wall, you need the following: • • a drill • • a drill bit (for wood or concrete) •... -
Page 13: Setup
Easy 6 3-pin DMX Setup 5.1. Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. 5.2. Ambient Conditions • • The device can be used only indoors. • • The maximum ambient temperature t = 40 °C must never be exceeded. -
Page 14: Set The Dmx Starting Addressing
Easy 6 3-pin DMX Figure 9 5.4.2. Set the DMX Starting Addressing You can change the DMX starting address of the device with the DIP switch. The DMX starting address can be set from 0–255. 01) Decide the number you need. 02) Set the switch to ON for the highest number that is lower than your number. -
Page 15: Operation
Easy 6 3-pin DMX Operation 6.1. Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for use as a DMX controller. It is suitable only for indoor installation. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use. -
Page 16: Play Mode
Easy 6 3-pin DMX 6.3.2. Play Mode 6.3.2.1. Playback a Programmed Scene 01) Press a programmed push button to play a programmed scene. The LED indicator on the push button blinks. 02) Use the faders (06) to manually override the output. 6.3.3. -
Page 17: Troubleshooting
Easy 6 3-pin DMX Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 18: Deinstallation, Transportation And Storage
Easy 6 3-pin DMX Deinstallation, Transportation and Storage 9.1. Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. • • Disconnect power supply before deinstallation. • • Always observe the national and site-specific regulations during deinstallation and derigging of the device. •... - Page 19 Easy 6 3-pin DMX Product code: 50404...
