2/2-way globe control valve
Hide thumbs Also See for 2301:

Advertisement

Type 2301
2/2-way globe control valve
2/2-Wege-Geradsitzregelventil
Vanne de réglage à siège droit 2/2 voies
Quickstart
English
Deutsch
Français

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Burkert 2301

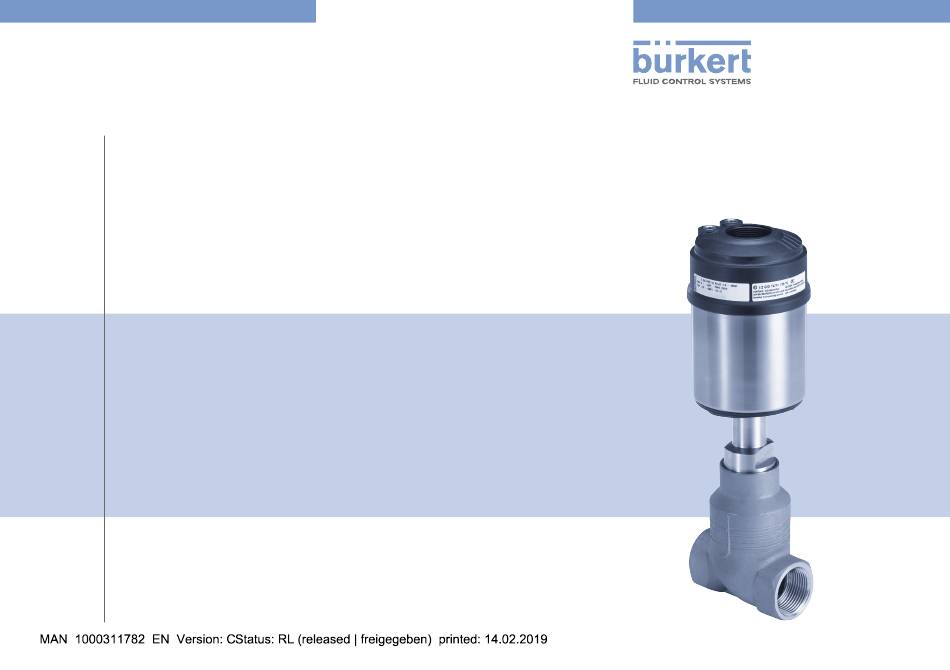

  • Page 1 Type 2301 2/2-way globe control valve 2/2-Wege-Geradsitzregelventil Vanne de réglage à siège droit 2/2 voies Quickstart English Deutsch Français...
  • Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert Werke GmbH & Co. KG, 2008 - 2018 Operating Instructions 1802/04_EU-ML_00810302 / Original DE...
  • Page 3: Table Of Contents

    ▶ Quickstart must be read and understood. PACKAGING, TRANSPORT, STORAGE ......17 Quickstart for globe control valve type 2301 explains, for example, how to install and start-up the device. A detailed description of the device can be found in the oper- ating instructions for Type 2301.
  • Page 4: Symbols

    SYMBOLS INTENDED USE DANGER! Non-intended use of the globe control valve Type 2301 may be a hazard to people, nearby equipment and the environment. Warns of an immediate danger! ▶ The device is designed for the controlled flow of liquid and ▶...
  • Page 5: Basic Safety Instructions

    Type 2301 Basic safety instructions BASIC SAFETY INSTRUCTIONS Danger due to loud noises. These safety instructions do not make allowance for any ▶ Depending on the operating conditions, the device may generate loud noises. More detailed information on the likelihood of loud •...
  • Page 6: General Information

    ▶ Do not make any external modifications to the valves. Do not The operating instructions and data sheets for Type 2301 can be paint the body parts or screws. found on the Internet at: www.burkert.com ▶...
  • Page 7: Structure And Function

    Structure and function STRUCTURE AND FUNCTION Normally open by spring action. The globe control valve Type 2301 can be operated only in combination with the following control units: Actuating function via reciprocal pressurization. Positioner Type 8692, 8694, 8696 and 8792 Process controller Type 8693 and 8793 6.2.2 Flow direction below the seat...
  • Page 8: Technical Data

    Technical data TECHNICAL DATA Type label Conformity Sealing material Body material Type 2301 conforms with the EU Directives according to the Orifice of the seat / Permitted medium pressure actuator size EU Declaration of Conformity (if applicable). Permitted pilot pressure Control function (CF)
  • Page 9 Type 2301 Technical data Operating conditions 7.4.3 Control medium In conjunction with pneumatic control units (positioner and Observe permitted ranges on the type label of the process controllers), pilot air according to DIN ISO 8573-1 must device! be used: • Class 3 (for water content) 7.4.1 Temperature ranges for actuators...
  • Page 10 Steel Steel 10 / 15 The pressure diagrams are in the operating instructions on ø 50 the Internet: www.burkert.com 10 / 15 / 20 General technical data ø 70 Media 25 / 32 Control medium Instrument air according to DIN ISO 8573-1 ø...
  • Page 11: Installation

    Type 2301 Technical data INSTALLATION CAUTION! Safety instructions Risk of injury due heavy devices! ▶ During transport or during assembly, a heavy device may fall DANGER! and cause injury. Danger – high pressure in the equipment! ▶ Do not transport, install or remove heavy devices without the ▶...
  • Page 12 Type 2301 Technical data Exhaust air port Install collet: CFA, CFB Fastening Control unit screw (2x) Pilot air port CFI Pilot air port Actuator CFA, CFB, CFI Actuator Nipple Flats for open- Fig. 2: Disassembly the control unit end wrench Remove the actuator from the valve body.
  • Page 13 Type 2301 Technical data → Grease nipple thread before re-installing the actuator (e.g. Dirt trap for devices with authorisation in accordance with DIN EN 161 with Klüber paste UH1 96-402 from Klüber). In accordance with DIN EN 161 “Automatic shut-off valves for NOTE! gas burners and gas appliances”...
  • Page 14 Type 2301 Technical data 8.3.3 Install control unit → Push the control unit, without turning it, onto the actuator until no gap is visible on the form seal. Before installation, check the position of the ports on the control unit and, if required, align the actuator.
  • Page 15 Type 2301 Technical data → Place suitable open-end wrench on the hexagon of the 8.3.4 Rotating the actuator actuator. The position of the connections can be aligned steplessly by → Rotate counter-clockwise (as seen from below) to bring the rotating the actuator through 360°.
  • Page 16 Type 2301 Technical data Risk of injury from unsuitable connection hoses! Exhaust air port Hoses which cannot withstand the pressure and temperature range may result in hazardous situations. Pilot air port ▶ Use only hoses which are authorized for the indicated pres- sure and temperature range.
  • Page 17: Packaging, Transport, Storage

    Perform regular visual inspections according to the application conditions: → Check media connections for leaks. → Check release bore on the tube for leaks. Release bore Fig. 9: Release bore The maintenance and repair instructions are available on the Internet: www.burkert.com english...
