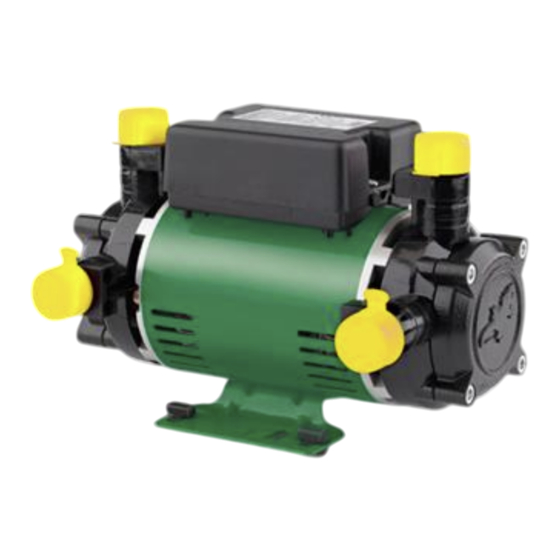

Salamander Pumps CT Series Manual

SKMECHA01 MECH
WARNING! ENSURE PUMP IS ISOLATED FROM
ELECTRICITY AND WATER SUPPLY. IF IN
DOUBT CONSULT A COMPETENT
TRADESMAN.
Pump should be serviced in horizontal
position with couples disconnected and water
and electricity supply isolated.
DO NOT RUN PUMP DRY. ALLOW WATER TO
FILL PUMP TO LUBRICATE SEALS BEFORE
STARTING. CHECK FOR LEAKS DURING TEST
BEFORE BEING SATISFIED PUMP IS OK
Document SSI.10 December15. Issue 1
Salamander Pumps Shower Systems Limited
Unit 2c Colima Avenue, Enterprise Park West,
Sunderland, SR5 3XE
Telephone: 0191 516 2002
Facsimile: 0191 548 4445
Email: sales@salamanderpumps.co.uk
www.salamanderpumps.co.uk
PLEASE NOTE:
By using the parts included in this pack to repair your pump, you will
be invalidating any warranty you have on the pump.
Returns:
If you need to return this pack for any reason please ensure the
original packaging and these instructions leaflets are returned also.
If you have any questions or queries regarding this spares pack or
any other pump related questions please contact us.
UK:
Salamander Pumped Shower Systems Limited
Unit 2c, Colima Avenue Enterprise Park West
Sunderland SR5 3XE
Tel: 0191 516 2002
Email: tech@salamanderpumps.co.uk
Eire:
MTA agencies Ireland Fearn House,
Unit 4 Jamestown Business Park
Jamestown Road Finglas,
Dublin 11
Tel: +353 (0)1 864 3363
Email: service@mtagencies.ie
Instructions VIDEOLINK:
INTRODUCTION
All CT pump variants
Tools required :
• Pliers
• Seal Tool - XTOOLS 01
• M6 Allen bit/Wrench
• Torque Driver
• Soap Water Solution 5%
Parts in Service kit:
• Rotary Seal 10mm - SROTAR02 (14) x 2
• Static Seal 10mm - SSTATI02 (13) x 2
• Body O ring 59.6 mm OD - SORING17 (BOR)
Blue EPDM (17) x 2
• Wire Clip- FWIREC01 (16) x 2
• 5. M6 Allen Bolt M6 X 45mm - FBOLTM04 (20)
x 8
• M6 Spring Washer- FWASHE03 (21) x 8
• Filter Washer-SFILTE01 (26) x 2
• Rubber Washer-SFLATW01(25) x2
• Seal Tool - XTOOLS01
