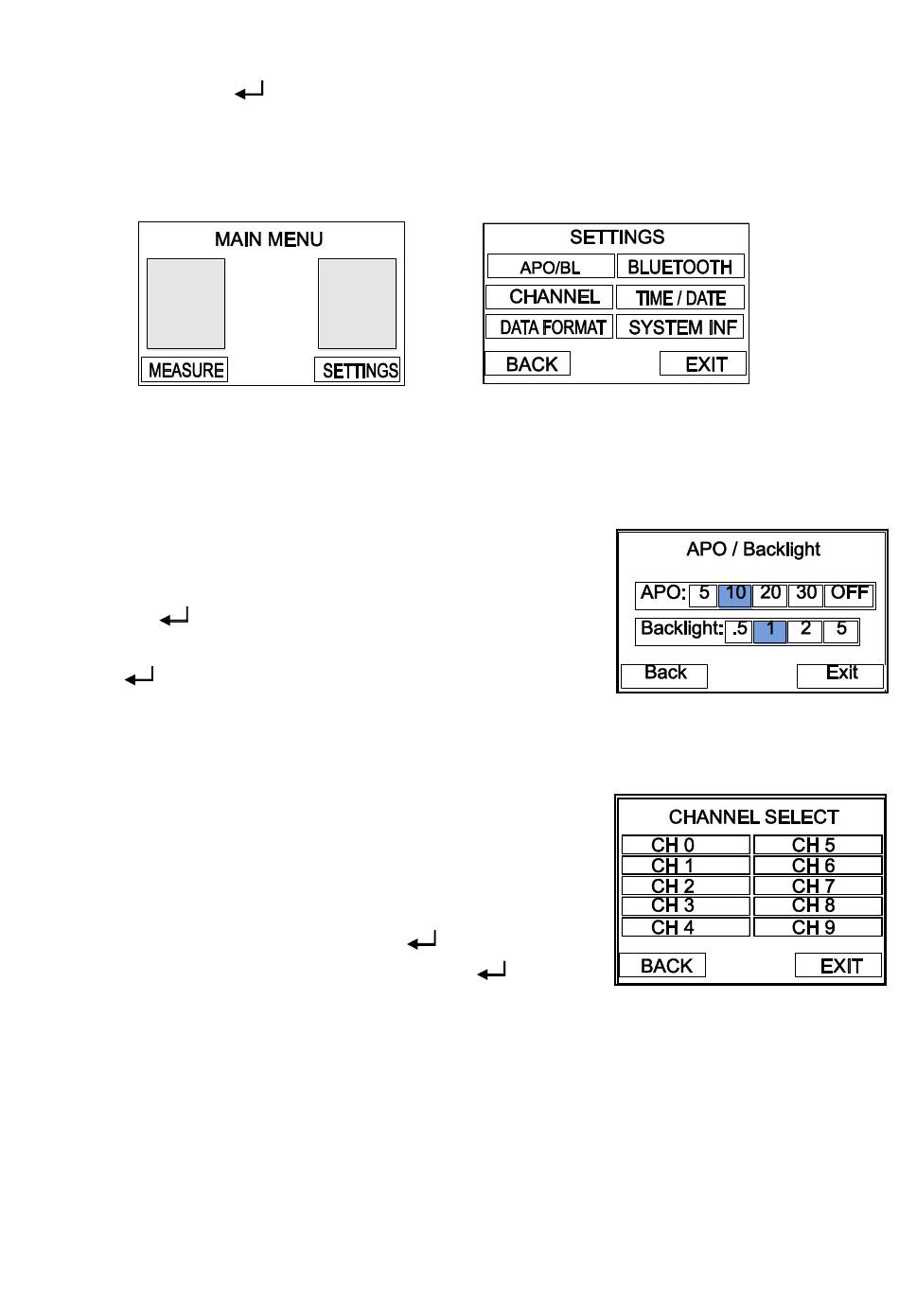

SETTINGS Menu Basics
1. Turn the analyzer ON.
2. Press and hold the
3. Press F1 (SETTINGS) to view the SETTINGS menu
4. Navigate the menu and sub-menus as desired. Each menu item is explained in the next section.
SETTINGS Menu in Detail
AUTO POWER OFF (APO) AND BACKLIGHT Settings
1. The APO or backlight timeout can be set in minutes.
2. Navigate to the APO/BL sub-menu in the SETTINGS menu
and press
3. Scroll to the desired setting.
4. Press and then press EXIT or BACK when done.
CHANNEL Setting
Select the common channel over which a transmitter and receiver
will communicate. If several transmitters are owned, a unique
channel number can be used for each. Note that the transmitter
and receiver units must be interlocked when changing to a new
matching channel number.
1. To set the channel, first navigate to the CHANNEL sub-menu
in the SETTINGS mode and then press
2. Navigate to the desired channel and then Press
Channel number will highlight.
3. Press EXIT or BACK when finished.
IMPORTANT NOTE: When two or more devices are set to the same channel, communication errors
between devices may result. Use separate channel numbers for multiple devices wherever possible.
button until the Main Menu appears
.
.
. The
