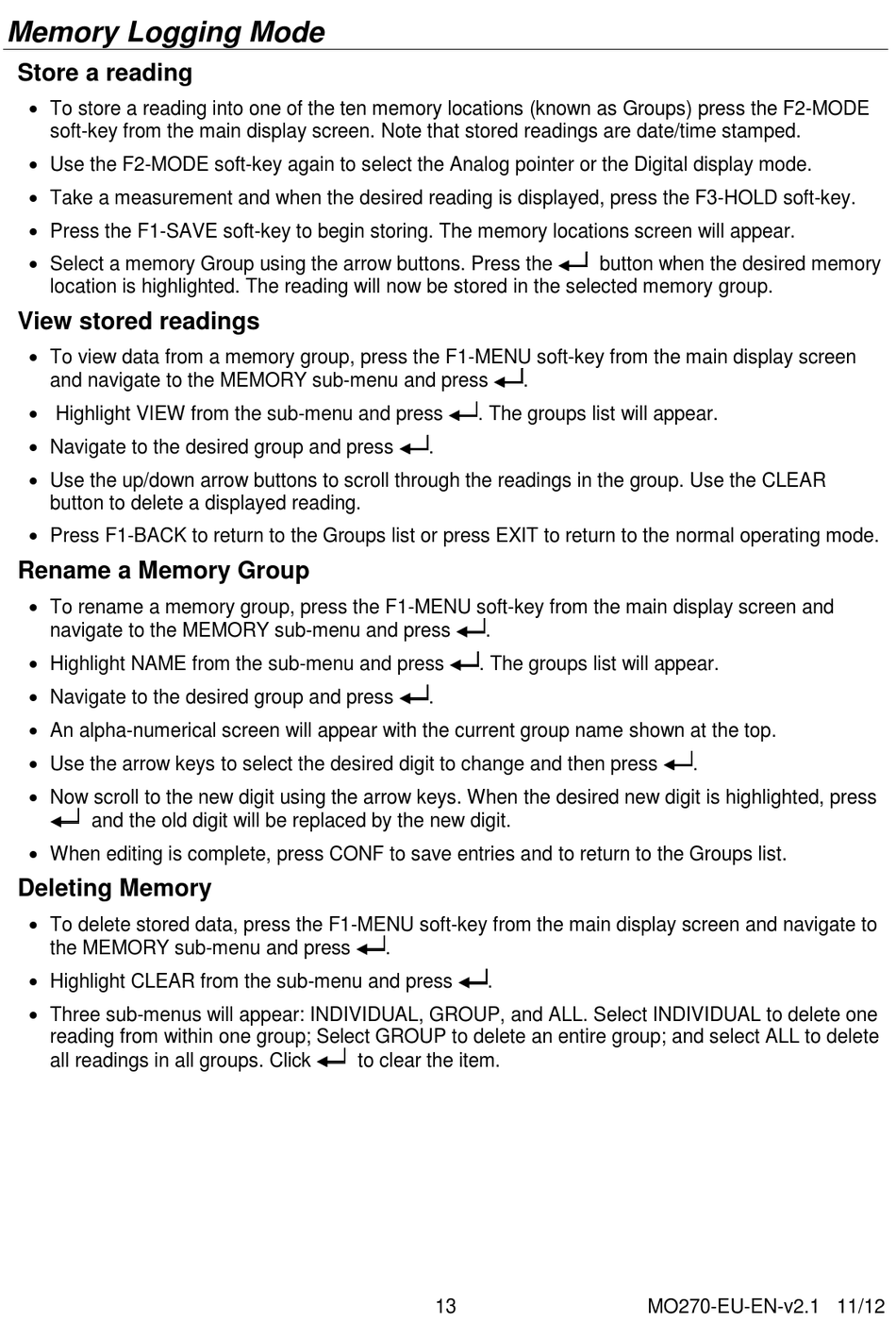

Memory Logging Mode

Store a reading
 To store a reading into one of the ten memory locations (known as Groups) press the F2-MODE
soft-key from the main display screen. Note that stored readings are date/time stamped.
 Use the F2-MODE soft-key again to select the Analog pointer or the Digital display mode.
 Take a measurement and when the desired reading is displayed, press the F3-HOLD soft-key.
 Press the F1-SAVE soft-key to begin storing. The memory locations screen will appear.
 Select a memory Group using the arrow buttons. Press the
location is highlighted. The reading will now be stored in the selected memory group.
View stored readings
 To view data from a memory group, press the F1-MENU soft-key from the main display screen
and navigate to the MEMORY sub-menu and press
 Highlight VIEW from the sub-menu and press
 Navigate to the desired group and press
 Use the up/down arrow buttons to scroll through the readings in the group. Use the CLEAR
button to delete a displayed reading.
 Press F1-BACK to return to the Groups list or press EXIT to return to the normal operating mode.
Rename a Memory Group
 To rename a memory group, press the F1-MENU soft-key from the main display screen and
navigate to the MEMORY sub-menu and press
 Highlight NAME from the sub-menu and press
 Navigate to the desired group and press
 An alpha-numerical screen will appear with the current group name shown at the top.
 Use the arrow keys to select the desired digit to change and then press
 Now scroll to the new digit using the arrow keys. When the desired new digit is highlighted, press
and the old digit will be replaced by the new digit.
 When editing is complete, press CONF to save entries and to return to the Groups list.
Deleting Memory
 To delete stored data, press the F1-MENU soft-key from the main display screen and navigate to
the MEMORY sub-menu and press
 Highlight CLEAR from the sub-menu and press
 Three sub-menus will appear: INDIVIDUAL, GROUP, and ALL. Select INDIVIDUAL to delete one
reading from within one group; Select GROUP to delete an entire group; and select ALL to delete
all readings in all groups. Click
.
. The groups list will appear.
.
.
. The groups list will appear.
.
.
.
to clear the item.
13
button when the desired memory
.
MO270-EU-EN-v2.1 11/12
