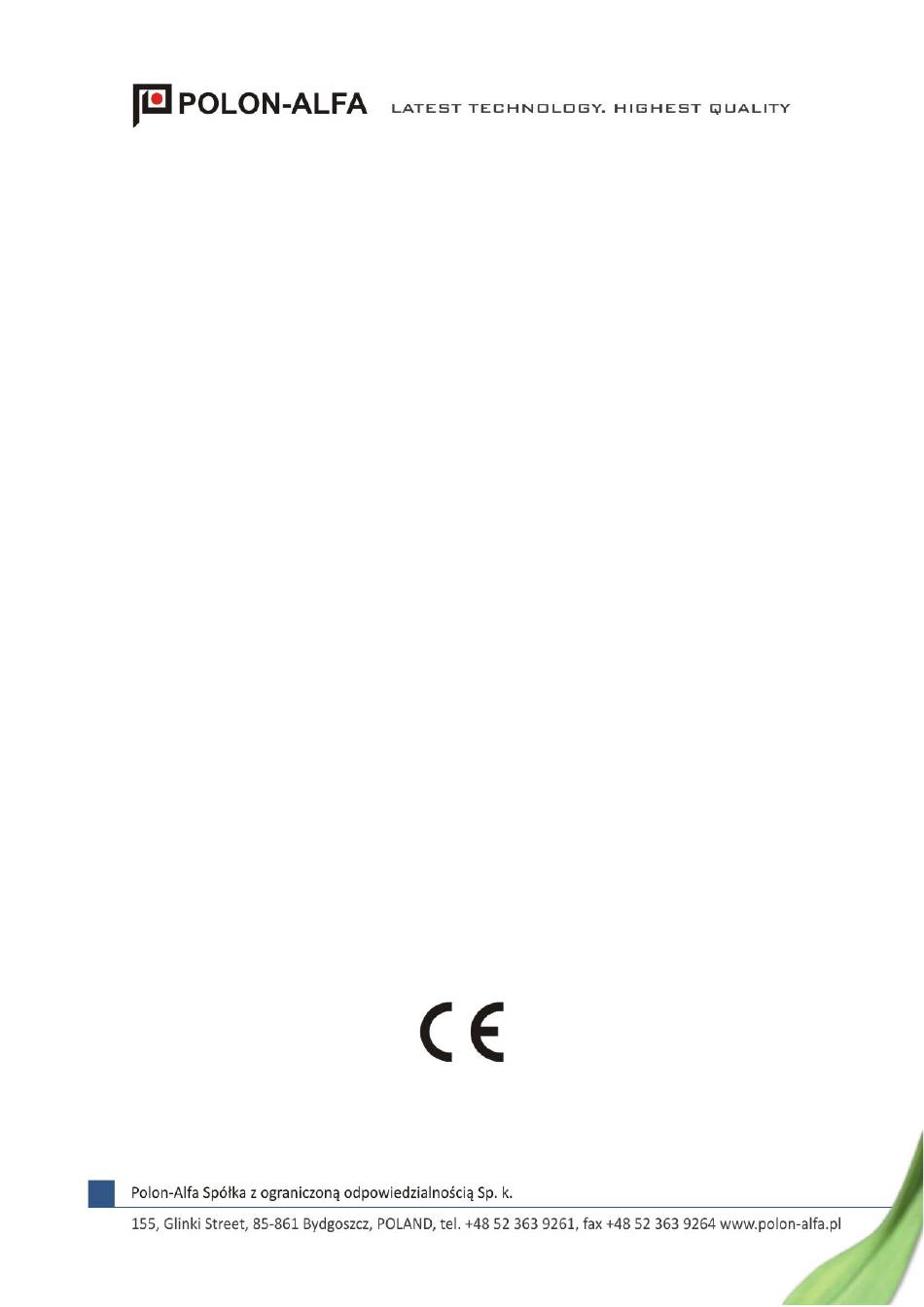

- Page 1 POLON 4000 INTERACTIVE FIRE DETECTION AND ALARM SYSTEM ROP-4001M & ROP-4001MH FIRE MANUAL CALL POINTS Installation and Maintenance Manual IK-E325-001GB IIC Edition...
- Page 2 Read the manual carefully before assembling and operation. Any nonconformity with the instructions contained in the manual may be harmful or may cause a violation of the law in force. POLON-ALFA bears no responsibility for any damage resulting from any usage inconsistent with the manual.
-
Page 3: Technical Specifications
Any maintenance works or periodic inspections shall be executed by a skilled personnel employed by companies authorised and trained by POLON-ALFA. Any repairs must be carried out by the manufacturer. POLON-ALFA bears no responsibility for the operation of any apparatus being serviced and repaired by an unauthorised personnel. -
Page 4: Design Descriptions
IK-E325-001GB DESIGN DESCRIPTIONS The manual call point consists of a body and a base connected with a hinge. The manual call point body contains its main parts: a printed circuit board with an electronic circuit, micro-switch and connector to install detecting line wires. A two-colour illuminating diode, indicating the alarm or fault mode, is located in the device upper part behind the glass. - Page 5 IK-E325-001GB Fig. 2 Manual call point with cover bent aside In order to reset the manual call point alarm state it is necessary to press the cover down towards the body as shown in Fig. 3 and insert the key (T end) from the bottom until the arrows in the operation area change their colour from yellow to black.
-
Page 6: Installation
IK-E325-001GB INSTALLATION 6.1. Installation and mounting The call points, depending on their type, are designed to be installed either indoors or outdoors, in easily accessible visible places, preferably close to transport routes, 1200 -1600 mm above the floor in accordance with PKN-CEN/TS 54-14:2006 standard p. 6.5.4 . It is advised to determine the installation hole spacing (diagonally –... - Page 7 IK-E325-001GB 6.2 Wire arrangement Alarm installation wires shall be led in accordance with the low-voltage (below 42 V) installation obligatory rules and connected to the contacts placed on the printed board of the call point. In case of manual call points installed outdoor (hermetic), the wires must be led from the bottom of call point trough seal glands.
- Page 8 IK-E325-001GB Fig. 7 Manual call point opening method Fig. 8 Manual call point after opening 6.4 Plastic cover replacement In case the cover replacement is needed, it is necessary to bend the casing aside (see Fig. 7), pull the cover out and take the spring out. Then the spring should be placed on a hinge of a new cover as it is shown in Fig.
- Page 9 IK-E325-001GB Fig. 9 Cover spring assembly Then it is needed to insert the cover into the casing rails and hook the spring on a ledge in the call point casing (see Fig. 10). Fig. 10 Spring fastening to casing A set of 3 spare plastic covers is described as SZ-60.
-
Page 10: Service And Maintenance
IK-E325-001GB SERVICE AND MAINTENANCE The manual call point unfailing operation depends on ensuring proper operation conditions, appropriate assembly execution and systematic periodical inspections. From time to time the call point casing should be checked (mechanical condition) and cleaned. The periodical inspections should be carried out at least once a year by a suitably trained maintenance technician or an authorized person.
