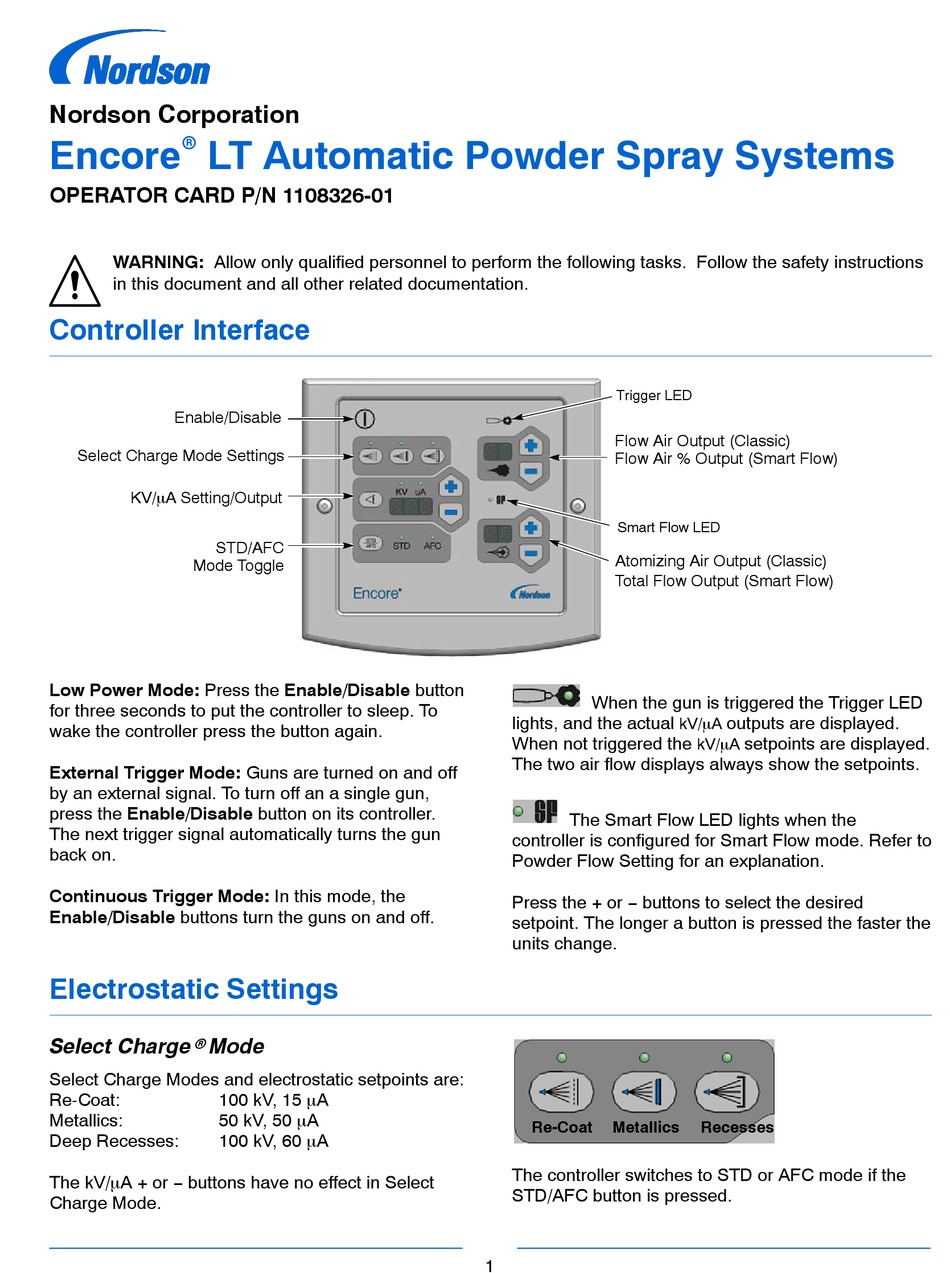

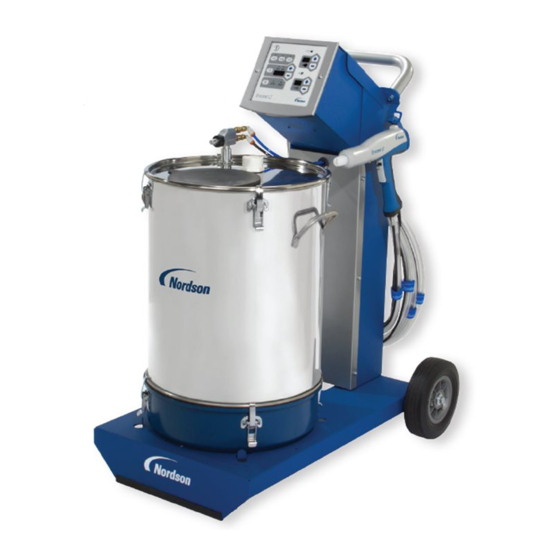

Encore LT Automatic Powder Spray Systems
OPERATOR CARD P/N 1108326-01
WARNING: Allow only qualified personnel to perform the following tasks. Follow the safety instructions
in this document and all other related documentation.
Controller Interface
Enable/Disable
Select Charge Mode Settings
KV/A Setting/Output
STD/AFC
Mode Toggle
Low Power Mode: Press the Enable/Disable button
for three seconds to put the controller to sleep. To
wake the controller press the button again.
External Trigger Mode: Guns are turned on and off
by an external signal. To turn off an a single gun,
press the Enable/Disable button on its controller.
The next trigger signal automatically turns the gun
back on.
Continuous Trigger Mode: In this mode, the
Enable/Disable buttons turn the guns on and off.
Electrostatic Settings
Select Charger Mode
Select Charge Modes and electrostatic setpoints are:
Re-Coat: 100 kV, 15 A
Metallics: 50 kV, 50 A
Deep Recesses: 100 kV, 60 A
The kV/A + or − buttons have no effect in Select
Charge Mode.
Trigger LED
Flow Air Output (Classic)
Flow Air % Output (Smart Flow)
Smart Flow LED
Atomizing Air Output (Classic)
Total Flow Output (Smart Flow)
When the gun is triggered the Trigger LED
lights, and the actual
When not triggered the
The two air flow displays always show the setpoints.
The Smart Flow LED lights when the
controller is configured for Smart Flow mode. Refer to
Powder Flow Setting for an explanation.
Press the + or − buttons to select the desired
setpoint. The longer a button is pressed the faster the
units change.
Re-Coat Metallics
The controller switches to STD or AFC mode if the
STD/AFC button is pressed.
1
outputs are displayed.
kV/A
setpoints are displayed.
kV/A
Recesses
